Lubrication system: oil pump
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_9_2A.65.1.html[11/12/2015 18:40:43]
Operations Section reference
Drain the engine oil 4 - 3, Changing the engine oil and
filter cartridge
Disconnect the oil pressure sensor 6 - 5,
Checking the indicating
devices
Remove the clutch cover 9 - 6.2,
Removal of the clutch cover

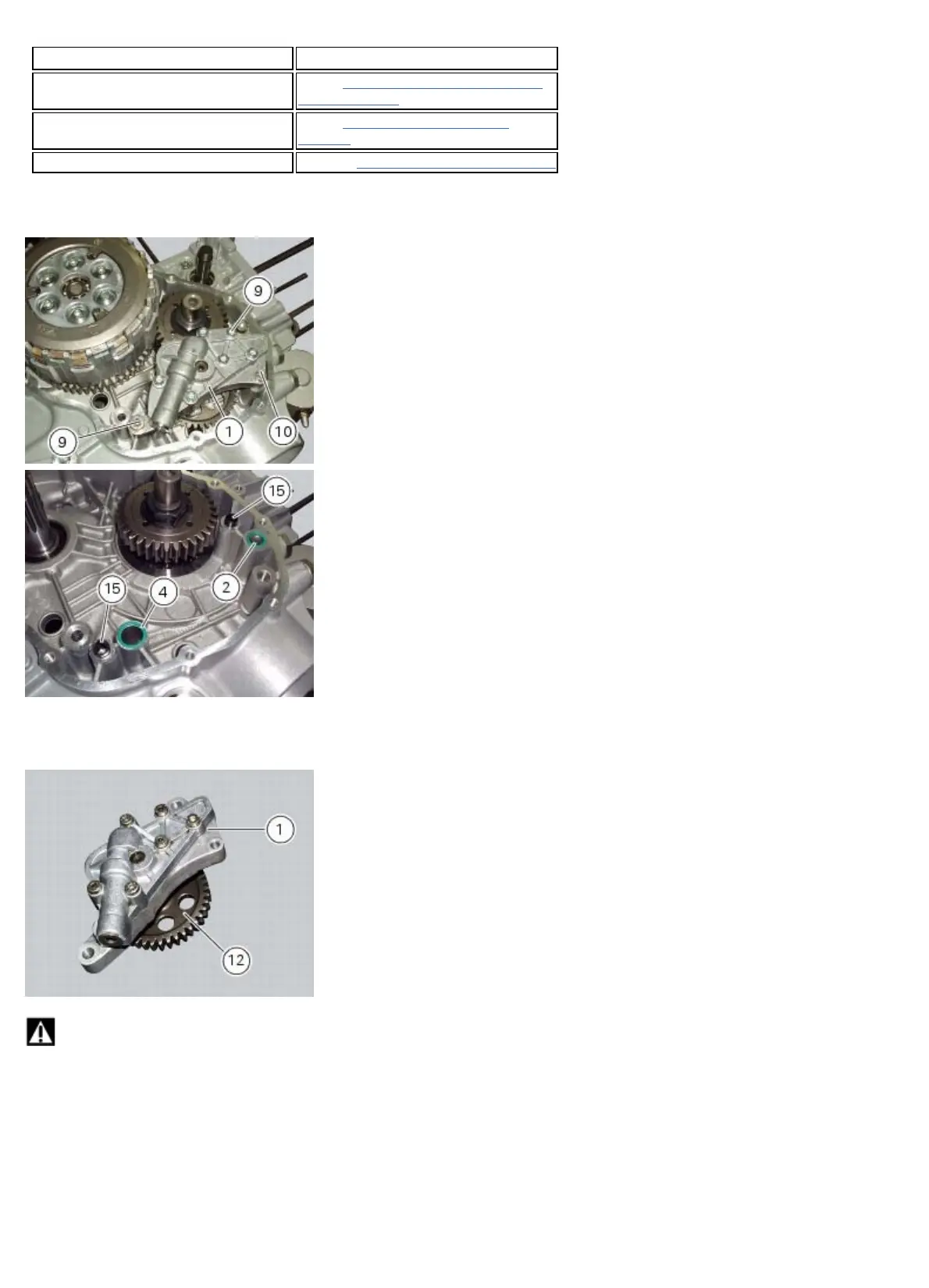

Undo and remove the screws (9) and (10) securing the pump assembly.
Remove the oil pump assembly (1) and extract the O-rings (2) and (4) from the crankcase half together with two locating
bushes (15).
Disassembly of the oil pump
Hold the oil pump (1) in a vice taking care not to damage the drive gear (12).
Warning
Make sure that vice jaws are faced with soft material.
Remove the plug (14) and extract the spring (16) and by-pass valve (17).
Check the condition of the above components.
