Rear swingarm
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_7_13.51.1.html[11/12/2015 18:40:35]
Remove the rear wheel eccentric hub as described in chapter “Removal of the rear wheel eccentric hub and rear wheel
shaft” of this section.

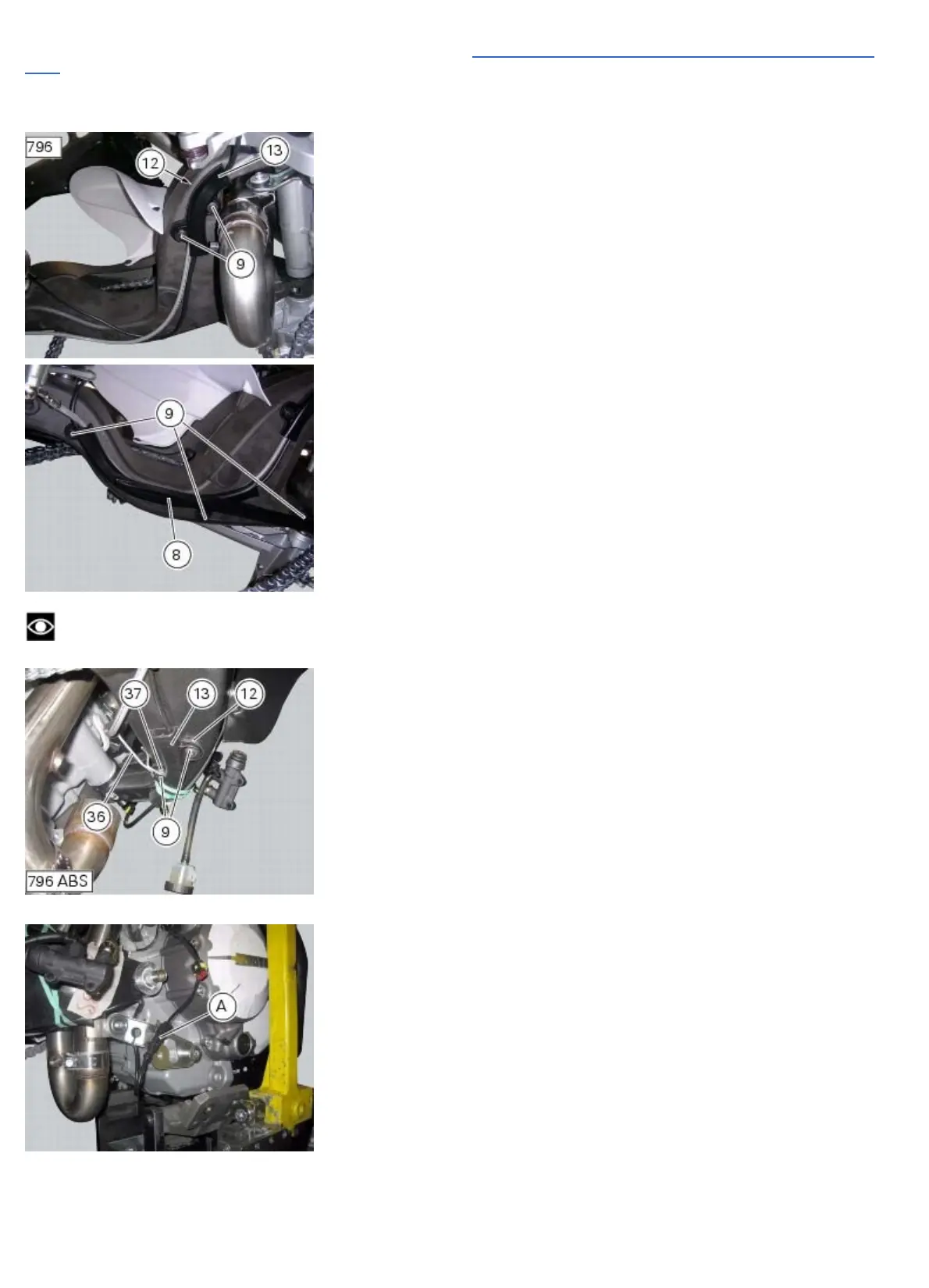

Free the rear brake hose and the speed sensor wiring from the lower chain slider (8) and from the upper protection (13)
and lower protection (12) by unscrewing the screws (9).
Note
In the ABS version recover the hose clip (36) and the spacer (37).
Disconnect the speed sensor wiring connector (A) from the main wiring loom.
You can check the play in the swingarm bearings while the swingarm (4) still installed on the motorcycle frame
Grasp the rear of the swingarm (4) and try to move it in the four directions shown by the arrows.
