Clutch assembly: APTC wet clutch
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_9_6A.72.1.html[11/12/2015 18:40:48]

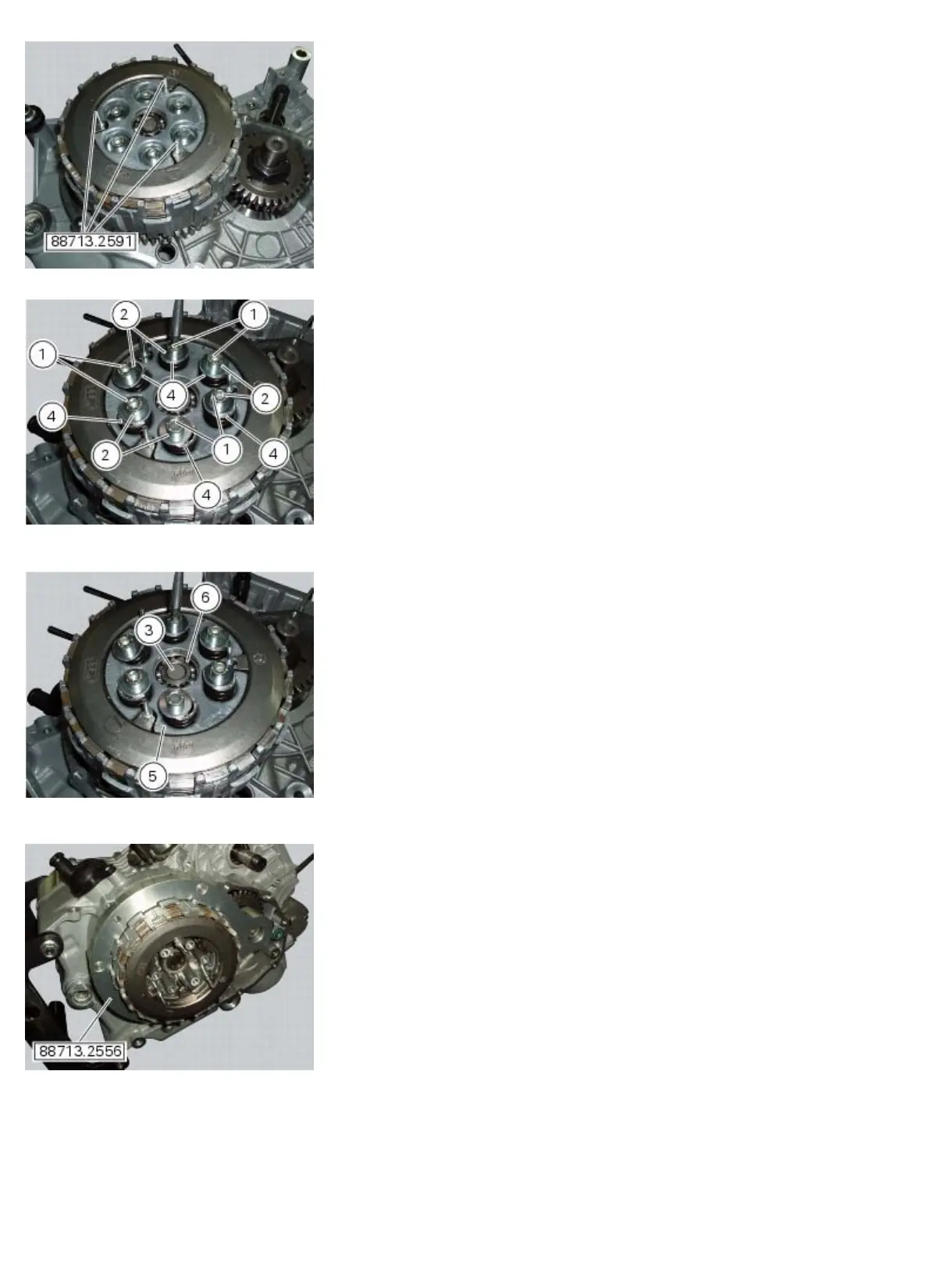

Unscrew the retaining screws (1) and remove the collars (2) and the clutch springs (4).
Remove the pressure plate (5) with the clutch control pin (3). If necessary, using a drift of suitable diameter, remove the
bearing (6) installed on the inner side of the pressure plate (5).
Hold the clutch drum with the service tool part no. 88713.2556 and unscrew the fastening nut (8).
