Frame inspection
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_7_17.55.1.html[11/12/2015 18:40:37]

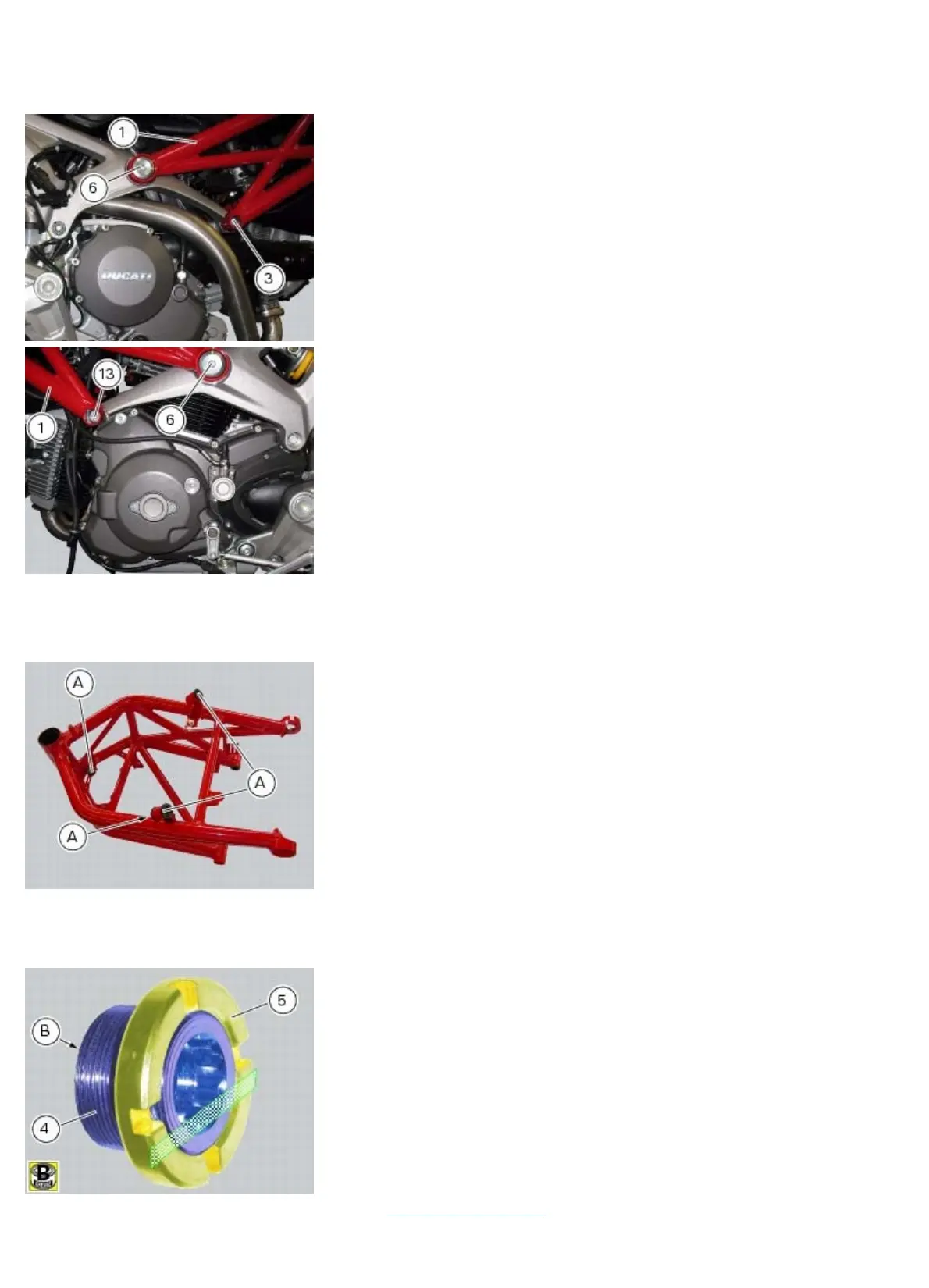

To separate the frame (1) from the rear subframe, unscrew the two special screws (6).
On the left-hand side of the motorcycle, restrain the pin (13) securing the front of the frame to the engine and unscrew
the nut (3) on the right-hand side.
Withdraw the front retaining pin (13) and remove the frame (1).
Secure the rear subframe to the engine block by inserting the pin (13).
Refitting the frame
Before refitting, check that the rubber mountings (A) are installed on the frame (1).
If the ring nuts (5) with the clearance adjusters (4) were removed, proceed as follows.
Grease the threads of the clearance adjusters (4) and the ring nuts (5) taking care not to get any grease on face (B) of
the clearance adjuster (4).
Tighten the clearance adjusters (4) onto ring nut (5) until flush with the side featuring flats, as shown below.
Tighten to a torque of 0.5 Nm ±10% (Sect. 3 - 3, Frame torque settings) from the outside the clearance adjusters (4)
with ring nuts (5) in the frame threaded bushings, until they protrude by about 2 mm on the inside.
