Tail light-number plate holder and locks
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_7_18.56.1.html[11/12/2015 18:40:38]

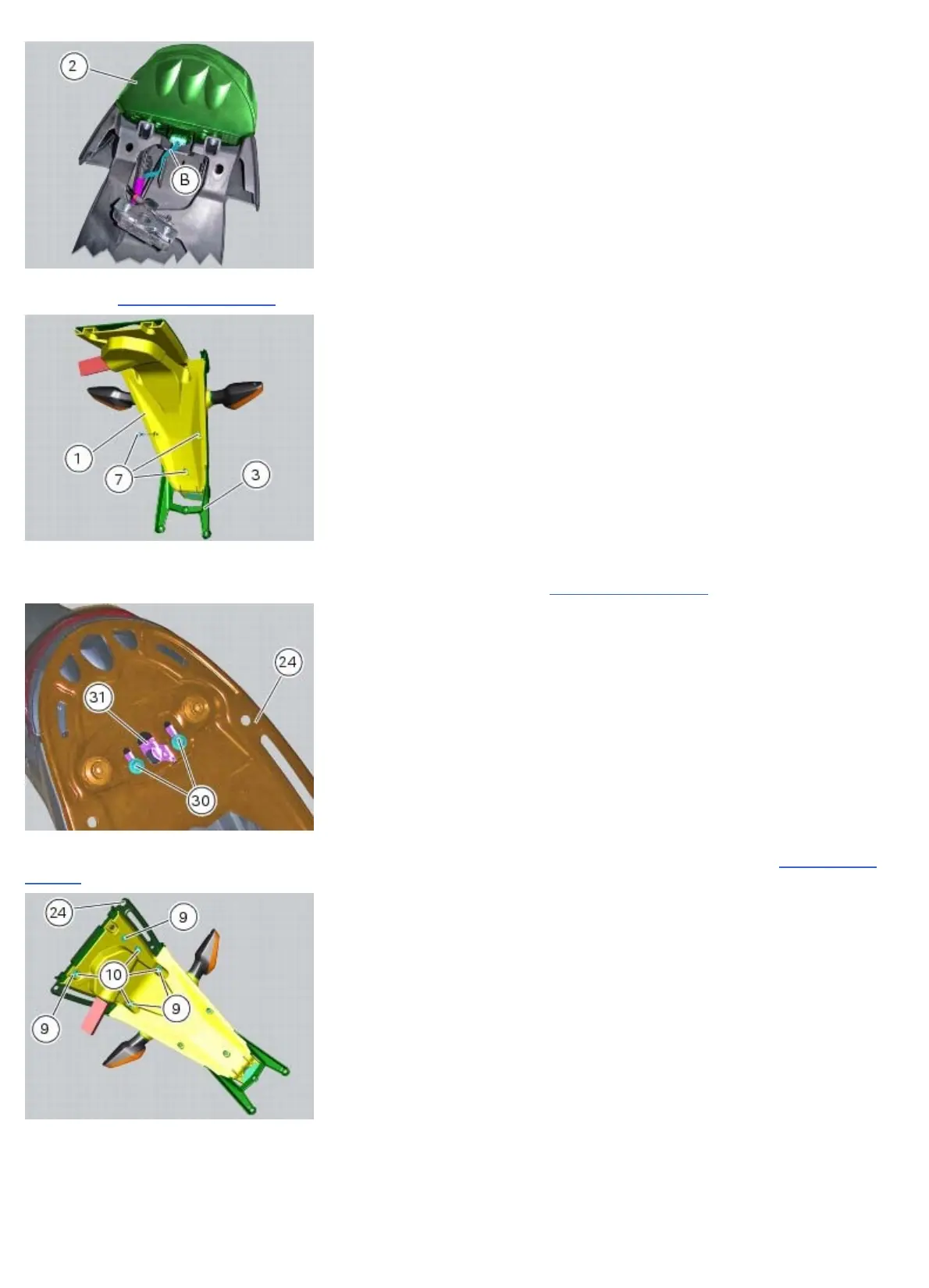

Install the number plate holder (3) to the splashguard (1) then tighten the screws (7) to a torque of 3.5 Nm ±10%
(Sect. 3 - 3,
Frame torque settings).
Place the latch (31) beneath the plate (24), at the “lowest“ position with respect to the slots on the plate, as shown in the
figure.
Fit the screws (30) and tighten to a torque of 10 Nm ±10% (Sect. 3 - 3,
Frame torque settings).
Refit the plate (24) to the tail light - number plate holder assembly, securing it with the four screws (10) and washers (9).
While holding the special screws (19) tightening the screws (10) to a torque of 8 Nm ±10% (Sect. 3 - 3,
Frame torque
settings).
