Tail light-number plate holder and locks
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_7_18.56.1.html[11/12/2015 18:40:38]

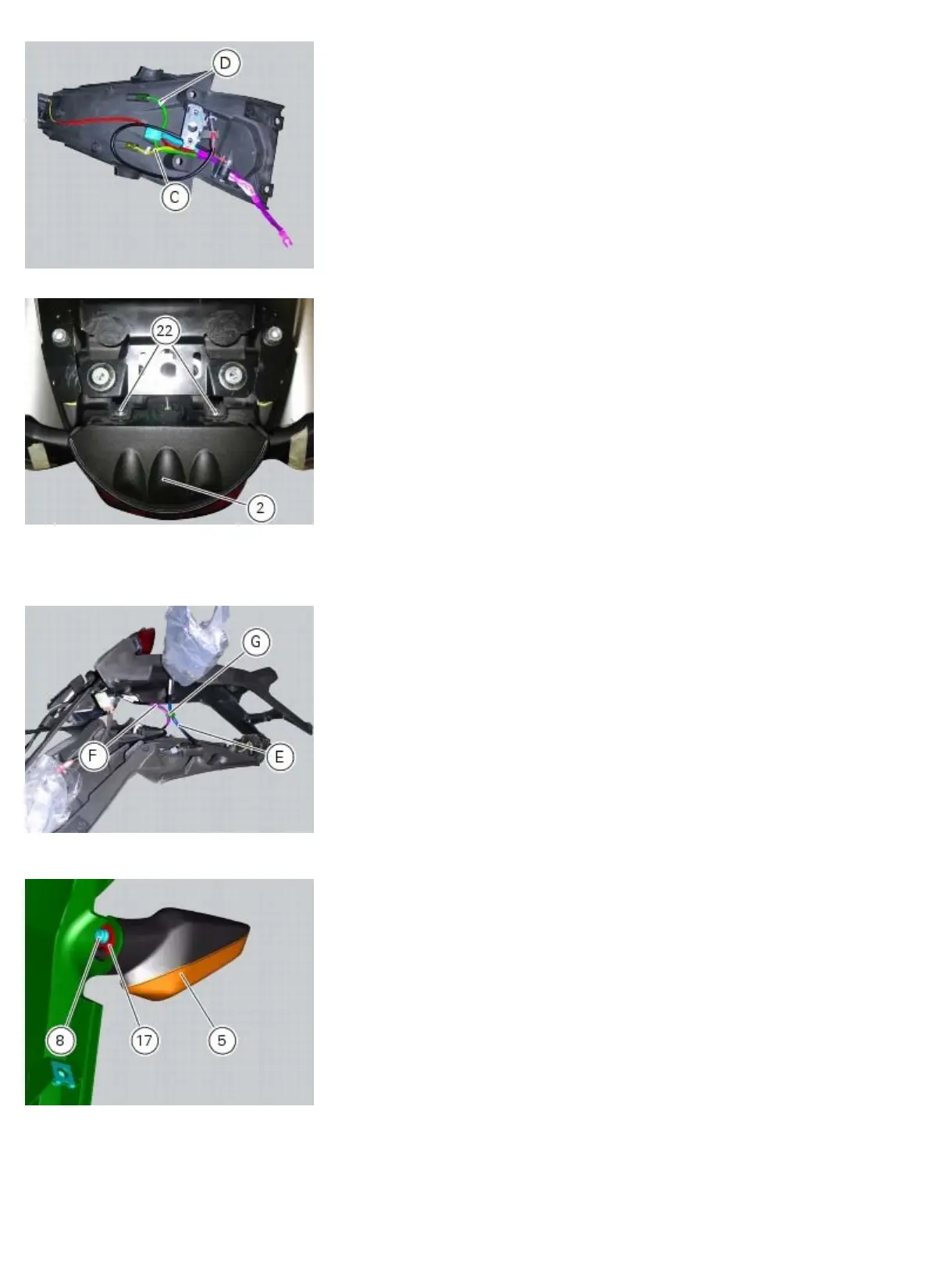

Unscrew the screws (22) and remove the tail light (2); recover the quick-release fasteners (23).
Removal of the rear turn signals
The following operations refer to the left side of the motorcycle, but apply also to the right side.
Remove clamp (G) fastening the rear right-hand turn indicator wiring (F) and rear left-hand turn indicator wiring (E).
Working from the inside, unscrew and remove the retaining screw (8) and recover the plate (17).
Withdraw the turn signal from the outside, taking care not to damage the wiring.
