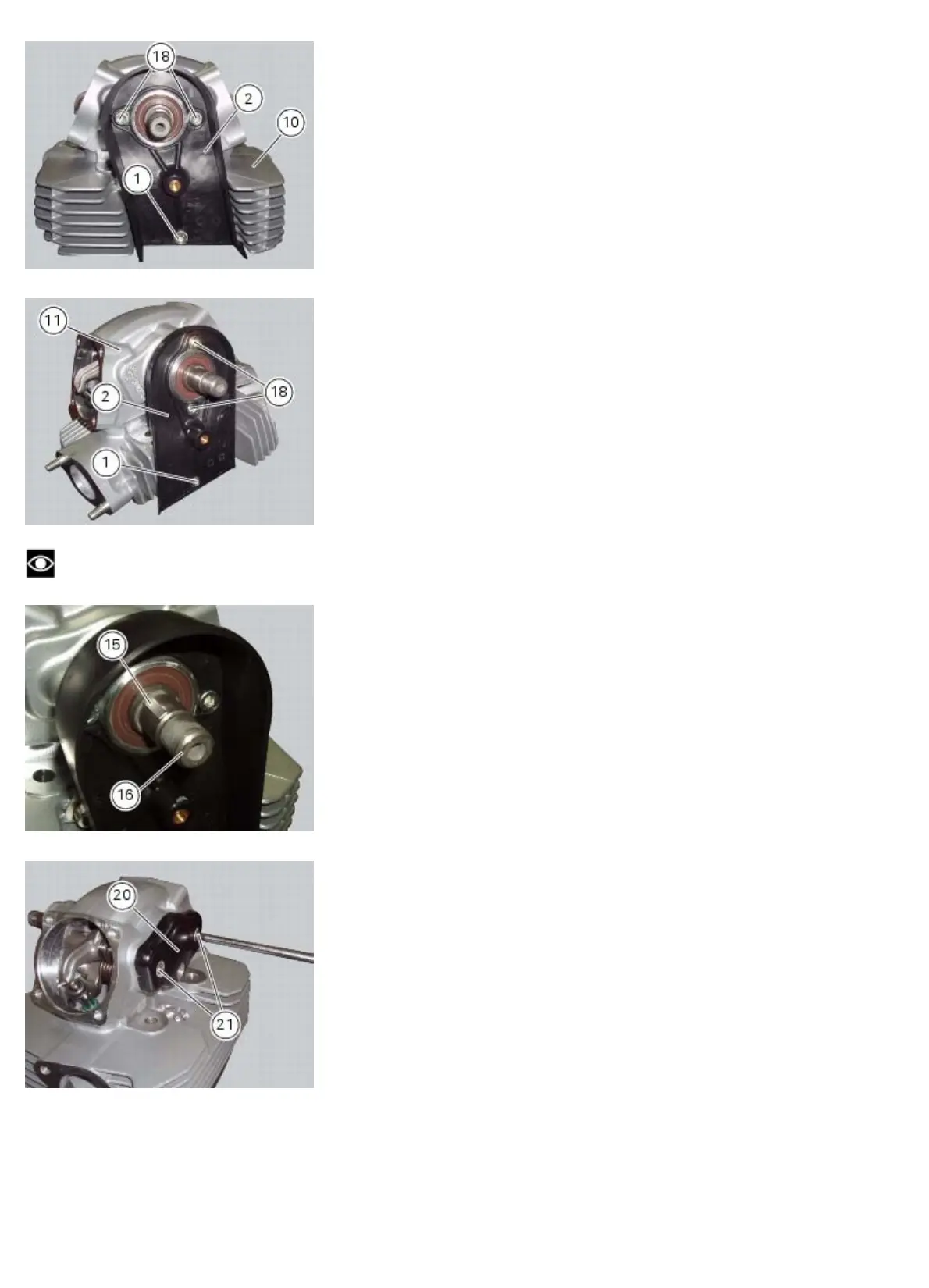

Repeat the operation for the horizontal cylinder head (11).
Note
When removing the covers, take care not lose the tongues (15) located on camshafts (16) and (22).
Unscrew the screws (21) of the cover (20) of the camshaft (16).
Remove the camshaft end cap (20) from the cylinder head and recover the O-ring (19).
