Cylinder head assemblies: timing belt covers/timing system
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_9_4B.68.1.html[11/12/2015 18:40:45]
Warning
Whenever you renew any components of the timing system, it is good practice to also check the timing (Sect. 9 - 4.1,
Cylinder head assemblies: checks and adjustments).

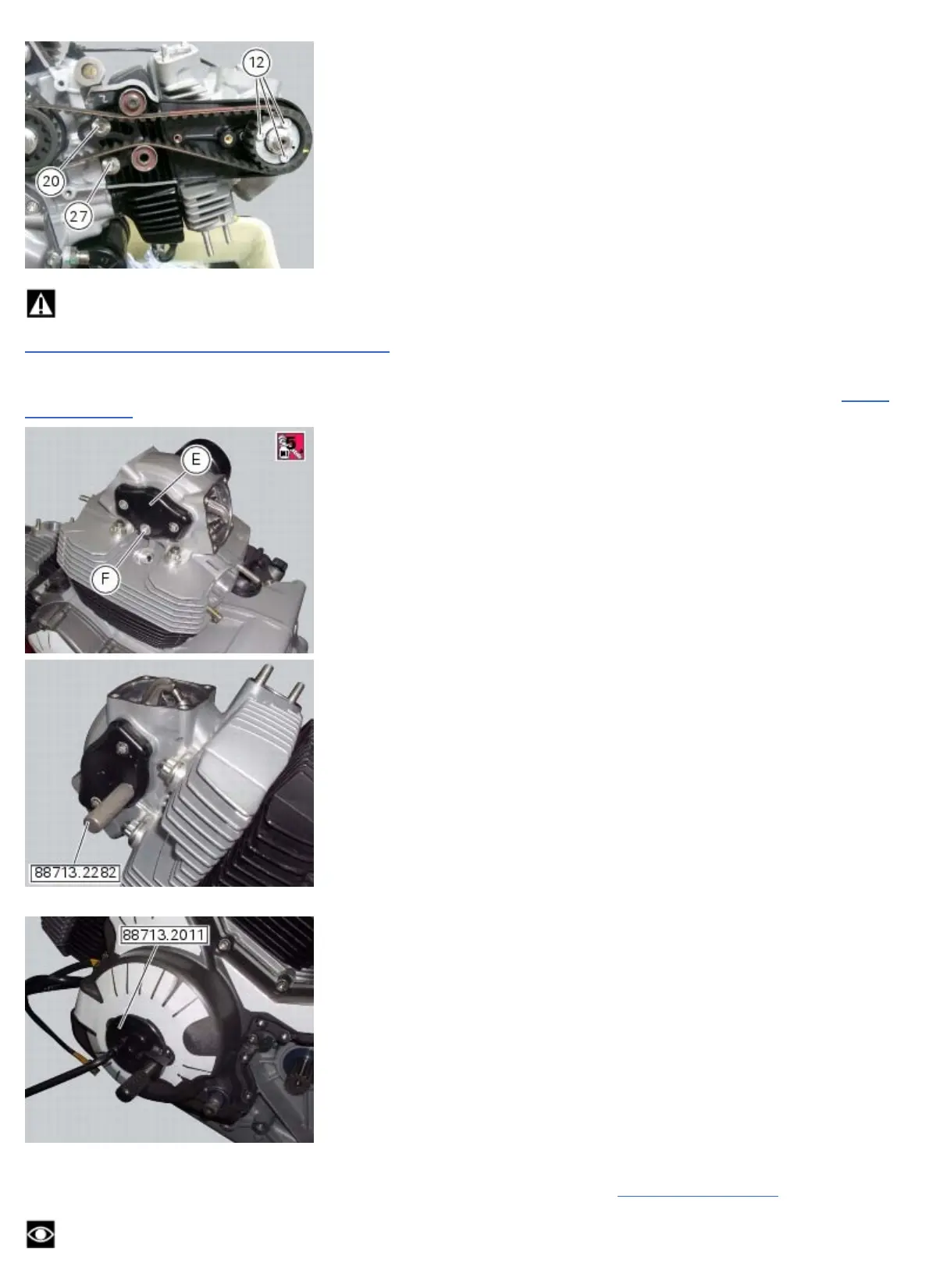

Remove the side covers (E) of the tool part no. 88713.2282 and refit the screws (F), with the recommended
threadlocker, with corresponding washer, tightening it to a torque of 3 Nm (Min. 2 Nm - Max. 3 Nm) (Sect. 3 - 3,
Engine
torque settings).
Remove the crankshaft locking tool 88713.2011 unscrewing first the pin and then the screw from the tool.
Refit the inspection cover (C) in the generator cover, inserting the two screws (D).
Tighten the screws to a torque of 5 Nm (Min. 4.5 Nm - Max. 5.5 Nm) (Sect. 3 - 3,
Engine torque settings).
