Cylinder head assemblies: timing belt covers/timing system
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_9_4B.68.1.html[11/12/2015 18:40:45]

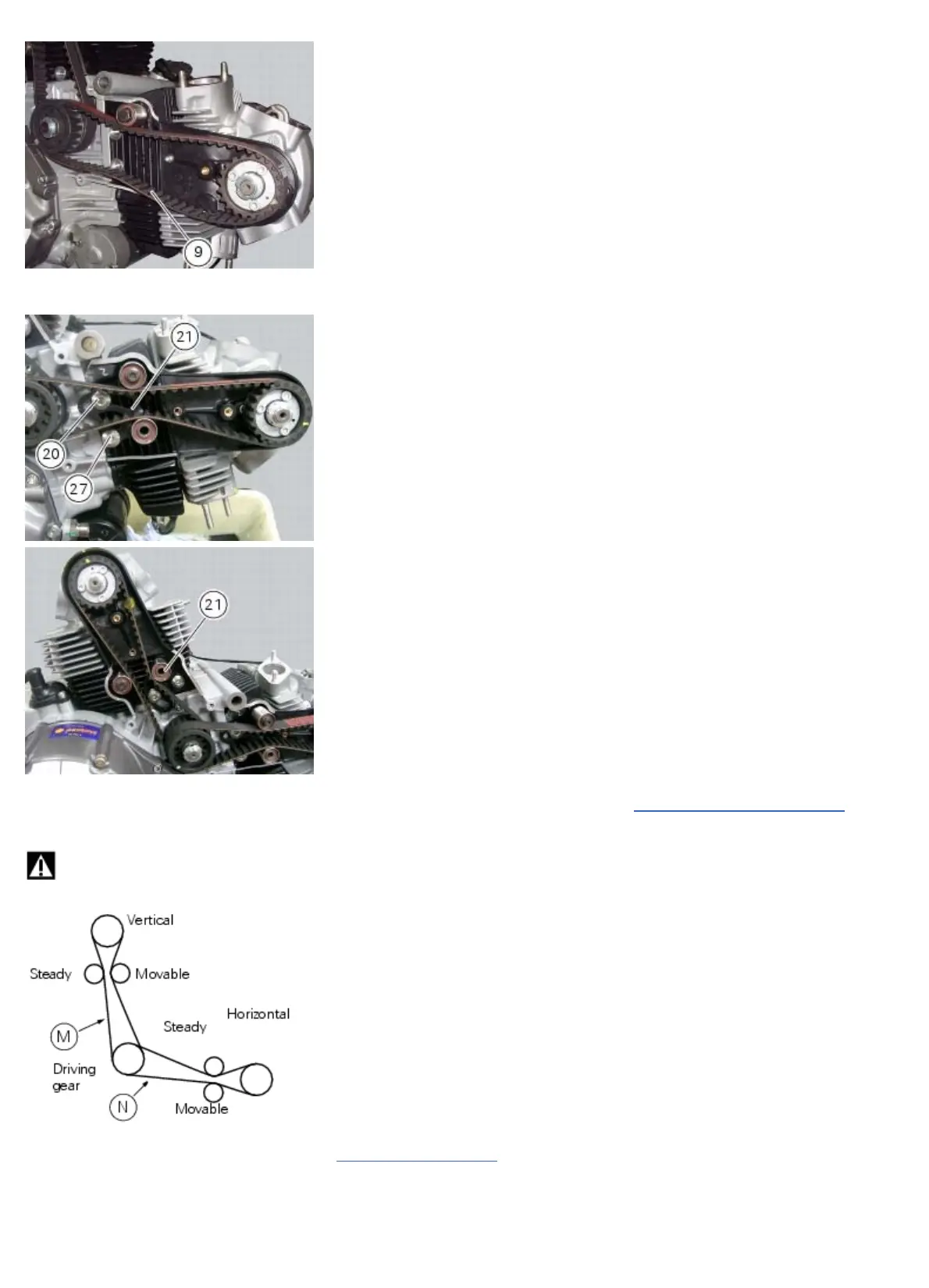

Locate the tensioner pulleys (21) on the vertical and horizontal cylinders. Screw without tightening to the specified torque
screw (27) and screw (20) so that the tensioners can turn.
Check the timing belt tension and adjust if necessary as described in the paragraph “
Measuring timing belt tension“ (Sect.
6 - 13).
Warning
Check the tension values on sections of belts (M) and (N) shown in the figure.
When the correct belt tensioning value is reached, ensure that screws (20), (27) and (12) are tightened to a torque of 10
Nm (Min. 9 Nm - Max. 11 Nm) (Sect. 3 - 3,
Engine torque settings).
