Cylinder head assemblies: timing belt covers/timing system
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_9_4B.68.1.html[11/12/2015 18:40:45]

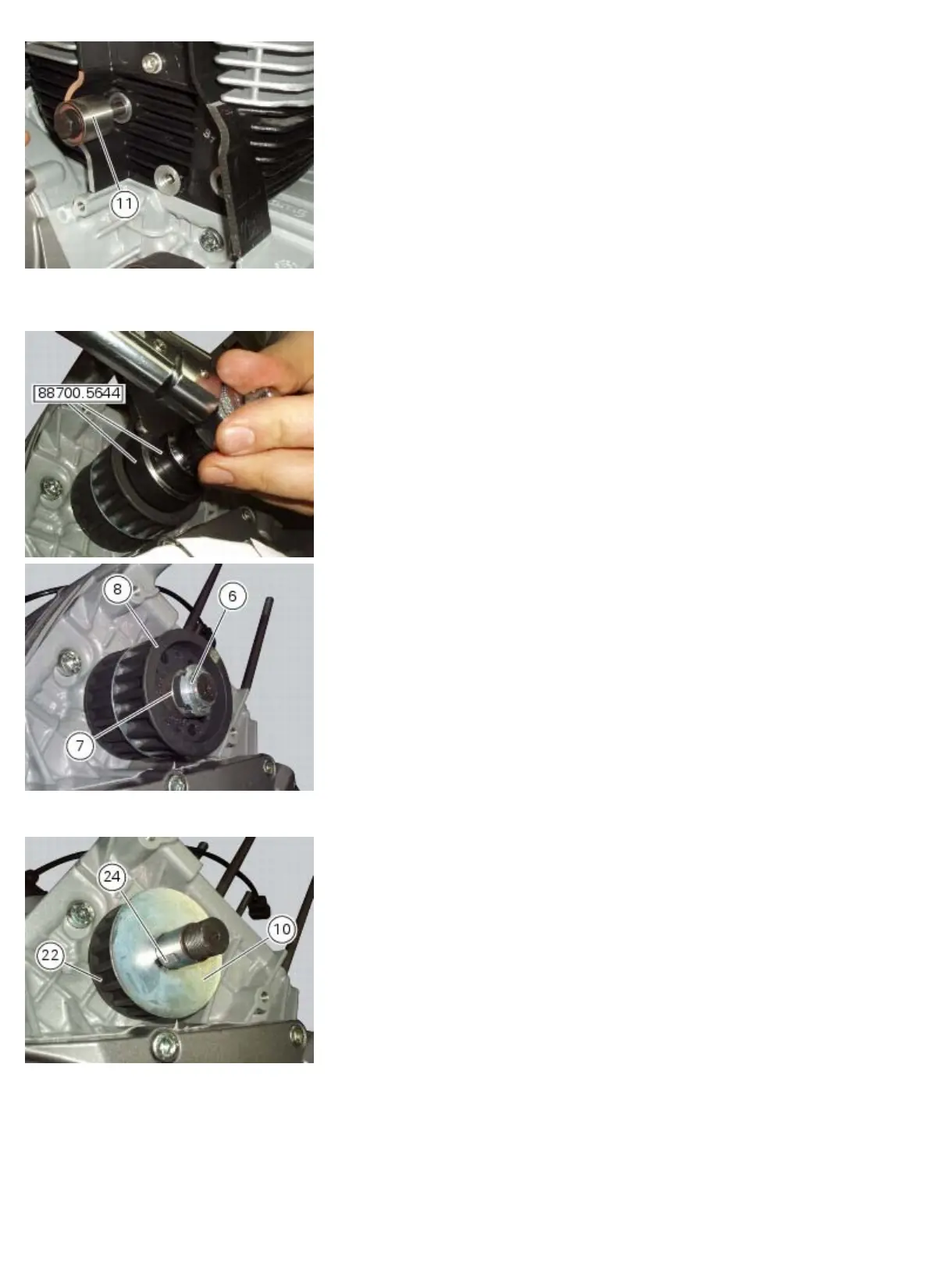

Use the wrench of tool no. 88700.5644 to lock rotation of the timing belt driveshaft pulley on the crankcase and, using
the socket combined with the tool, loosen the ring nut (6).
Remove the nut (6), the washer (7) and the outer pulley (8).
Remove the first tongue (24) located on the timing belt driveshaft.
Remove the intermediate spacer (10) and the inner pulley (22).
Remove the second tongue (26) located on the timing belt driveshaft.
Remove the spacer (5) and the circlip (25).
