Clutch assembly: APTC wet clutch
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_9_6A.72.1.html[11/12/2015 18:40:48]

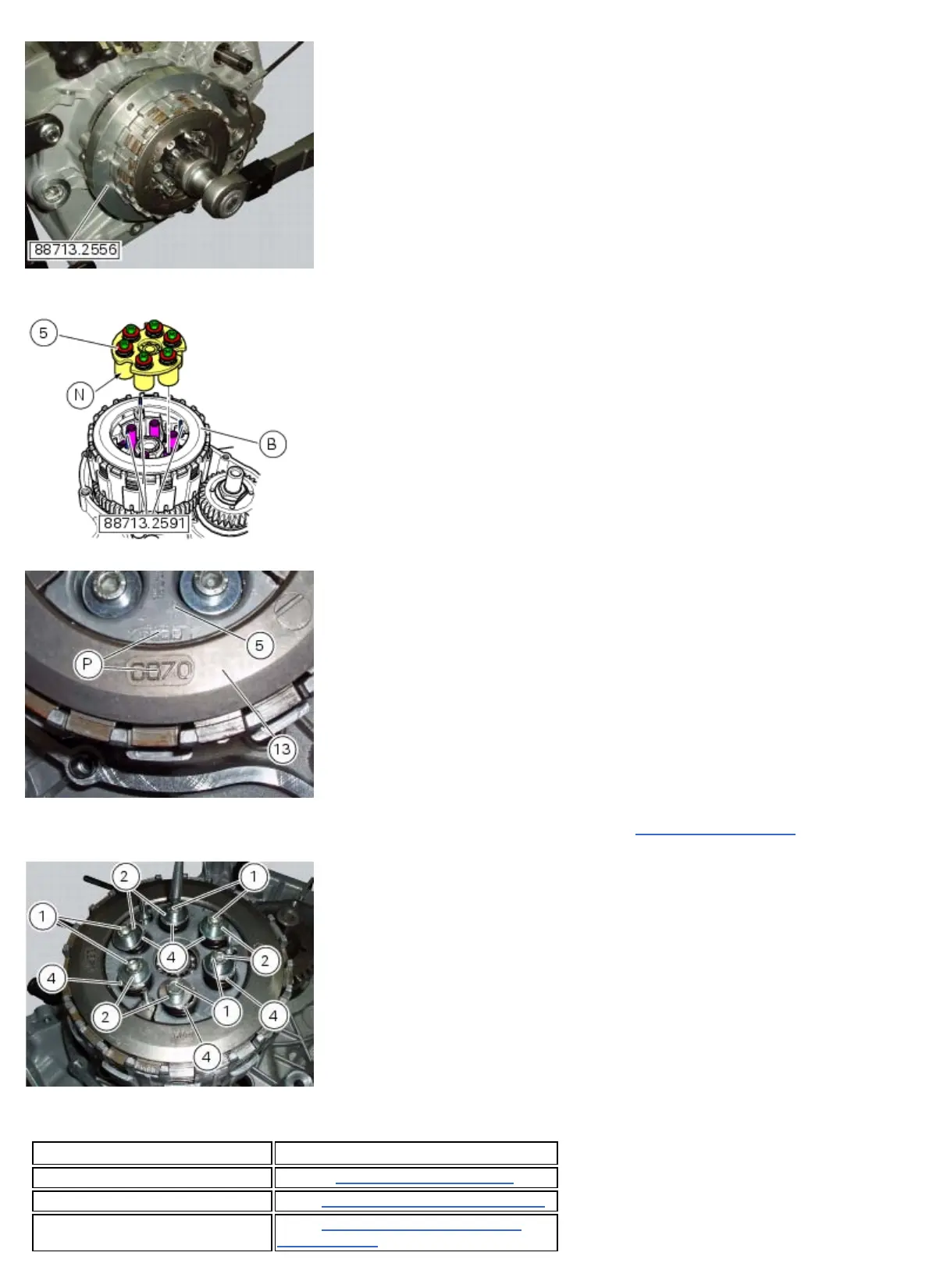

Install the pressure plate (5) on the clutch assembly (B) aligning the three tools 88713.2591 with the three indents (N)
in the pressure plate.
Check that the two codes (P) stamped on the hub (13) and the pressure plate (5) are aligned.
In each cavity, fit a spring (4) and a cap (2).
Tighten the screws (1) to a torque of 10 Nm (Min. 9 Nm - Max. 11 Nm) (Sect. 3 - 3,
Engine torque settings) in a
crosswise sequence.
Unscrew and remove the service tools 88713.2591.
Operations Section reference
Refit the clutch cover 9 - 6.2,
Refitting the clutch cover
Connect the oil pressure sensor 6 - 5,
Checking the indicating devices
Top up the engine oil 4 - 3,
Changing the engine oil and
filter cartridge
