Clutch assembly: primary drive gears
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_9_6C.74.1.html[11/12/2015 18:40:49]
Remove the clutch assembly 9 - 6.1, Removal of the APTC clutch
Remove the oil pump 9 - 2.1, Removal of the oil pump

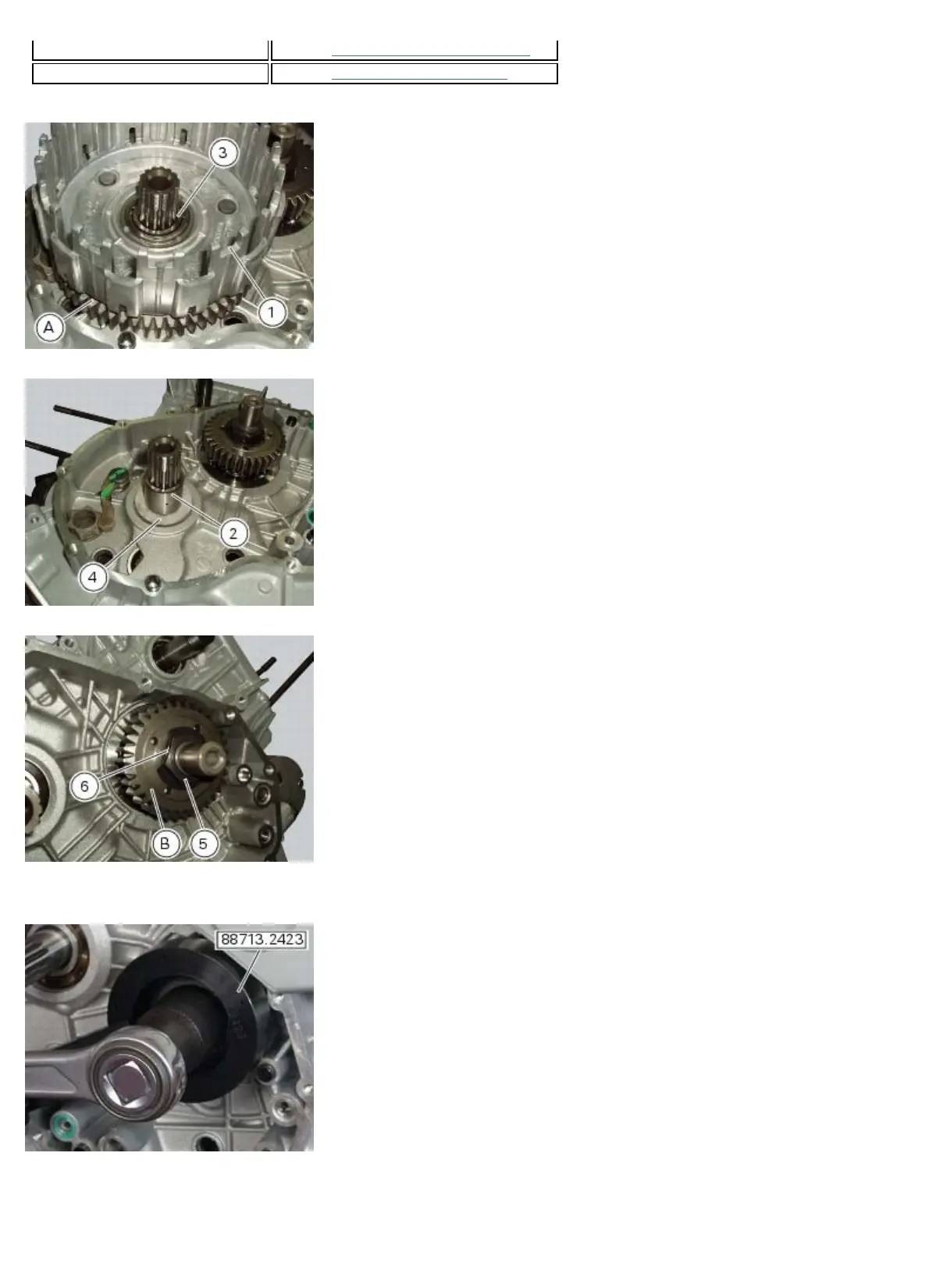

Withdraw the clutch drum (1) complete with roller bearings (3) and the driven gear of the primary gear pair (A).
Remove the circlip (2) and the internal spacer (4).
Straighten out the lock washer (6) on the nut (5) securing the primary driving gear (B).
Restrain the primary driving gear (B) using service wrench no. 88713.2423 and unscrew the threaded nut (5) securing
the pinion.
Remove the nut (5) and lockwasher (6).
