Crankcase assembly: external components
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_9_9A.78.1.html[11/12/2015 18:40:52]

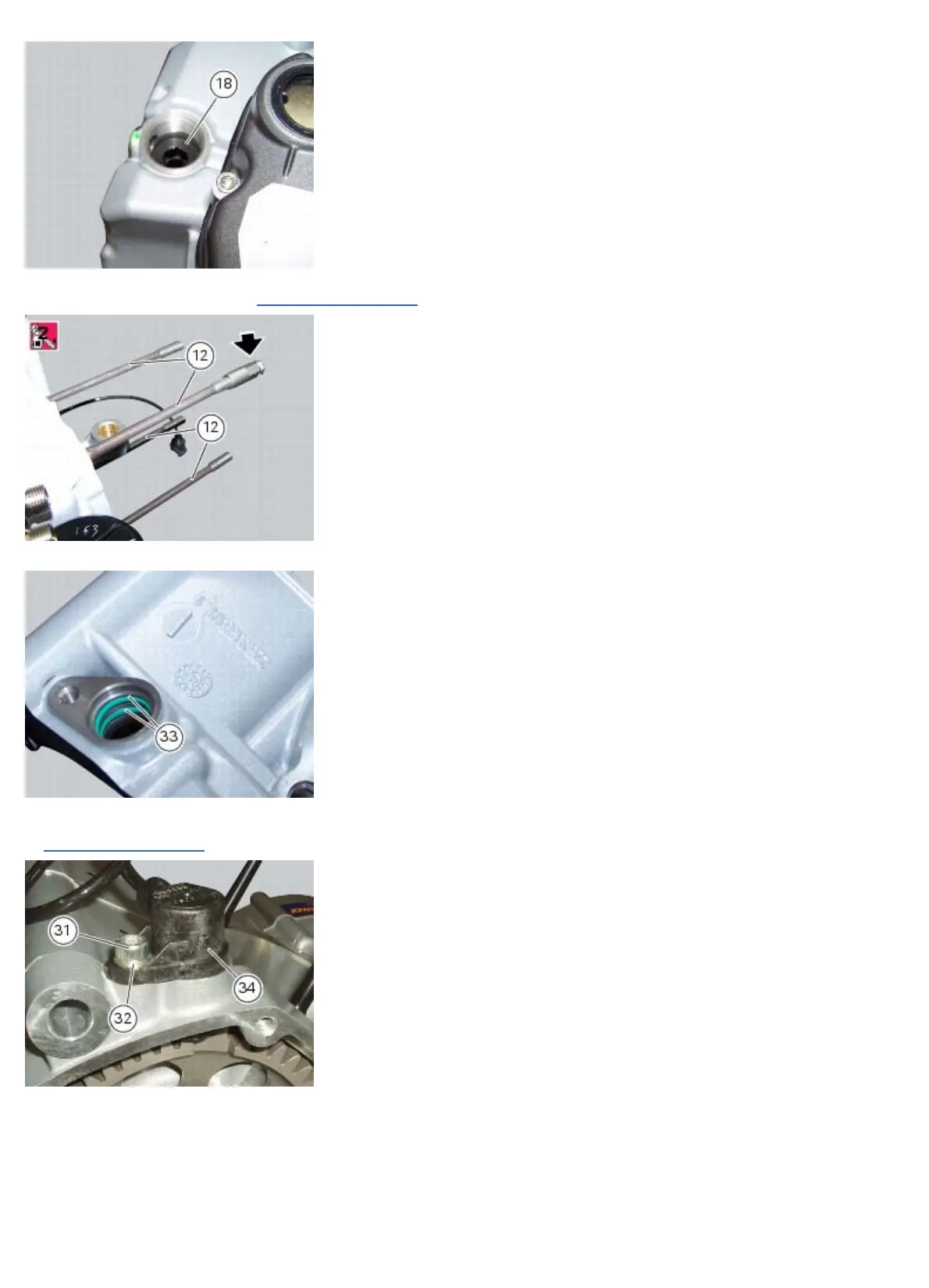

Install the stud screws (12) on the crankcases, applying threadlocker and tightening them to a torque of 30 Nm (Min. 28
Nm - Max. 32 Nm) (Sect. 3 - 3,
Engine torque settings). Use a tool similar to the one shown.
Make sure that the O-rings (33) are fitted on the crankcase.
Fit the engine pickup (34) in its seat in the crankcase half.
Fit the screw (31) with the washer (32) and tighten the screw to a torque of 10 Nm (Min. 9 Nm - Max. 11 Nm) (Sect. 3 -
3,
Engine torque settings).
Use a feeler gauge to check the clearance between the engine sensor (34) and the timing gear (2). The value must be
between 0.6 and 0.8 mm.
