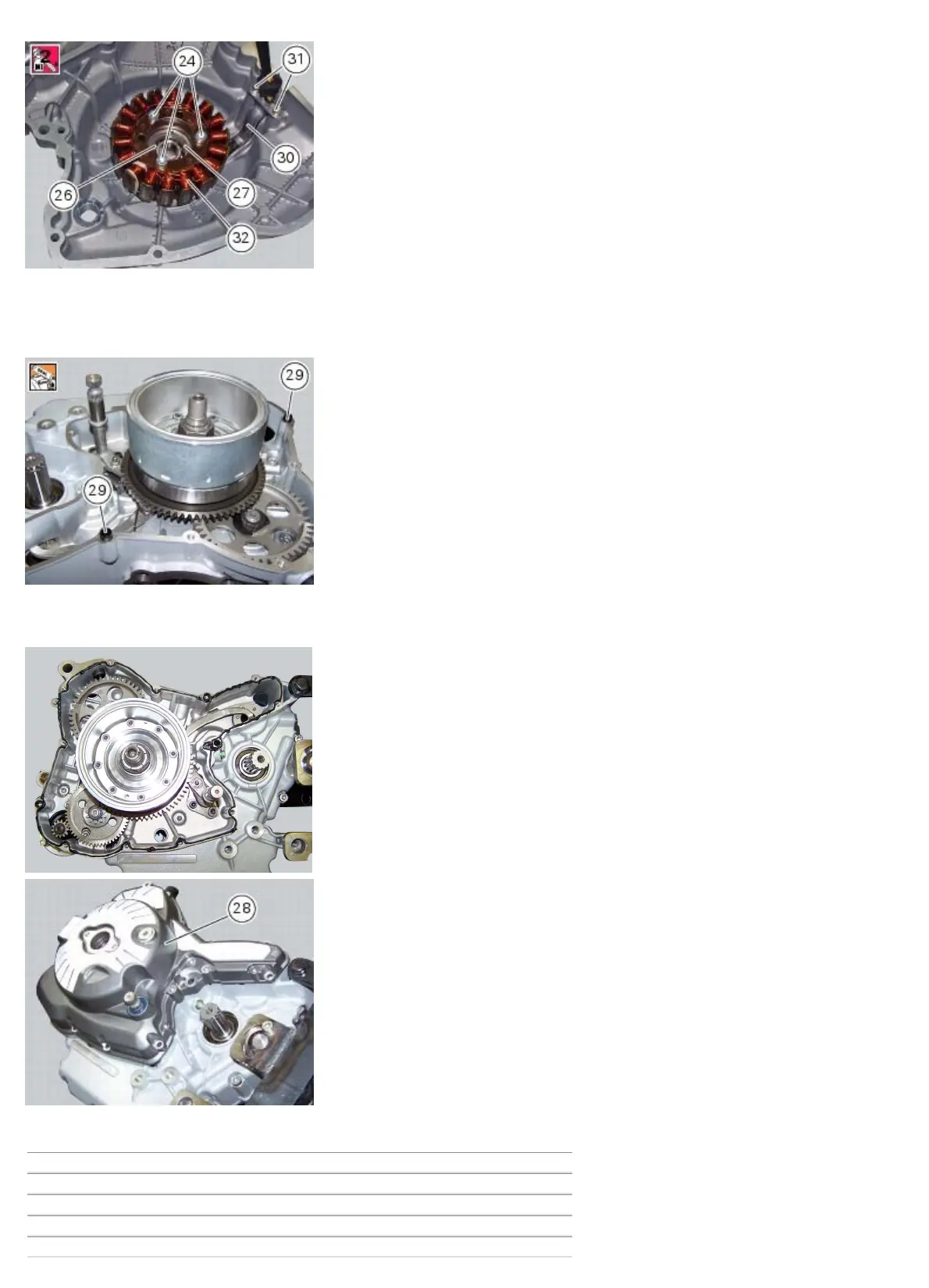

Refitting the generator cover
Remove any scale and grease from the mating surfaces of the left-hand crankcase half and the generator cover.
Fit the two locating bushes (29).
Spread a continuous uniform bead of DUCATI liquid gasket on the mating surface of the cover (28), ensuring continuity
around the holes for the retaining screws and locating bushes.
Tap the cover at different positions with a rubber mallet to facilitate its location on the shafts and locating bushes.
Insert the fixing screws in their holes following the indications given in the table.
Ref. Qty Description
10 2 M6x20 mm screws
11 8 M6x25 mm screws
12 2 M6x30 mm screws
14 1 M6x30 mm screws
