Flywheel - alternator
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_9_8.77.1.html[11/12/2015 18:40:51]

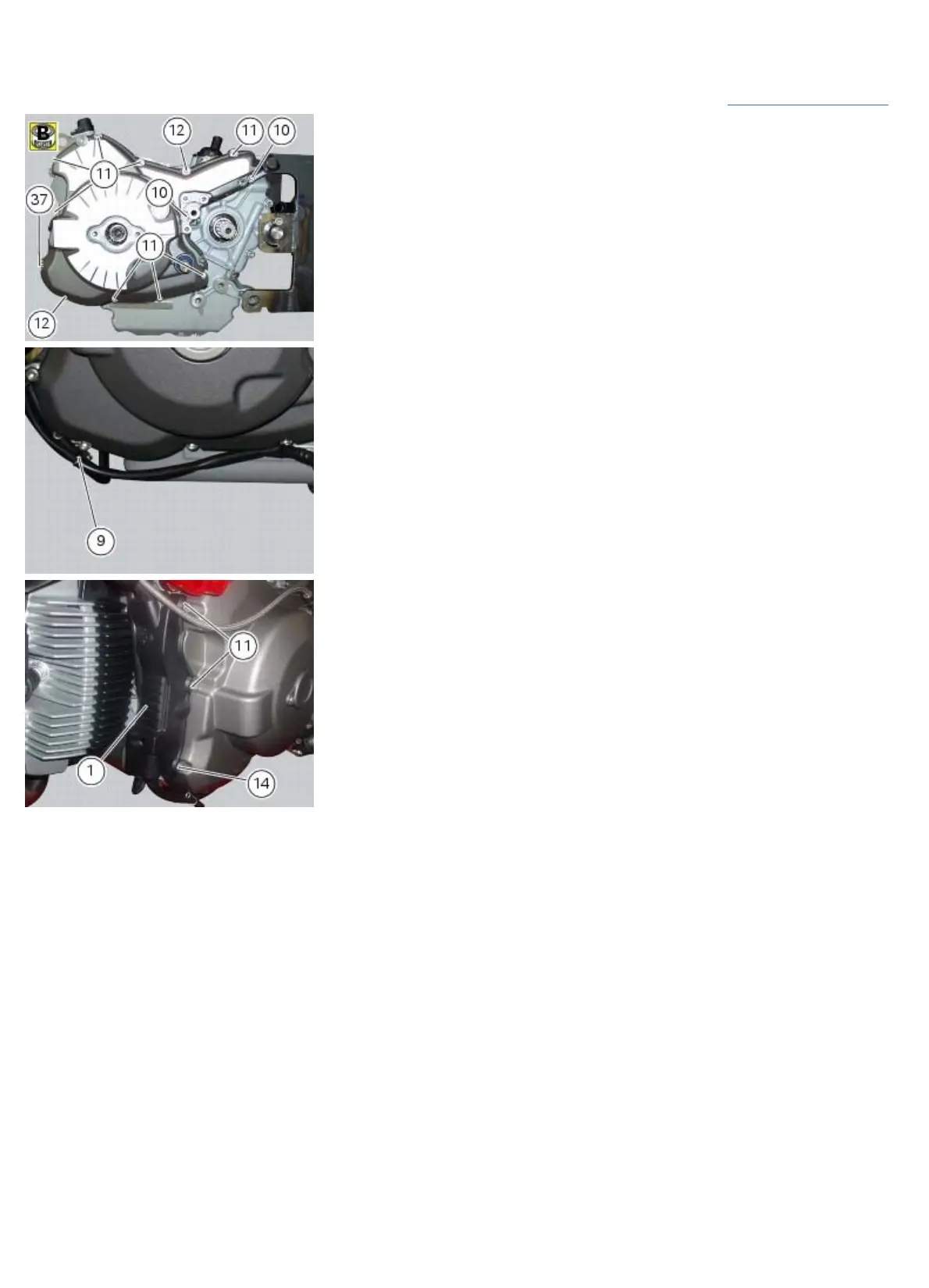

Install under the screw (12), in correspondence with the starter motor, the spacer (8), the cable guide (9), the washer
(38) and install the cover (1) under screw (11) in correspondence with the alternator lead: for instructions on the
positioning of the wiring under the cover (1) see below.
Tighten the retaining screws to a torque of 13.5 Nm (Min. 12.5 Nm - Max. 14.5 Nm) (Sect. 3 - 3,
Engine torque settings).
Check that the fuel tank drain hose (T) and the airbox drain hose (U) are positioned in the lower slot of the cover (1) as
shown.
