Headlight fairing - rear-view mirrors
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_5_1.19.1.html[11/12/2015 18:40:16]
Reassembly of the headlight fairing
Important
On refitting the headlight fairing, always refit the washers (14) in correspondence with the retaining screws (13) to avoid
damaging the painted parts and the Plexiglas windshield (10).

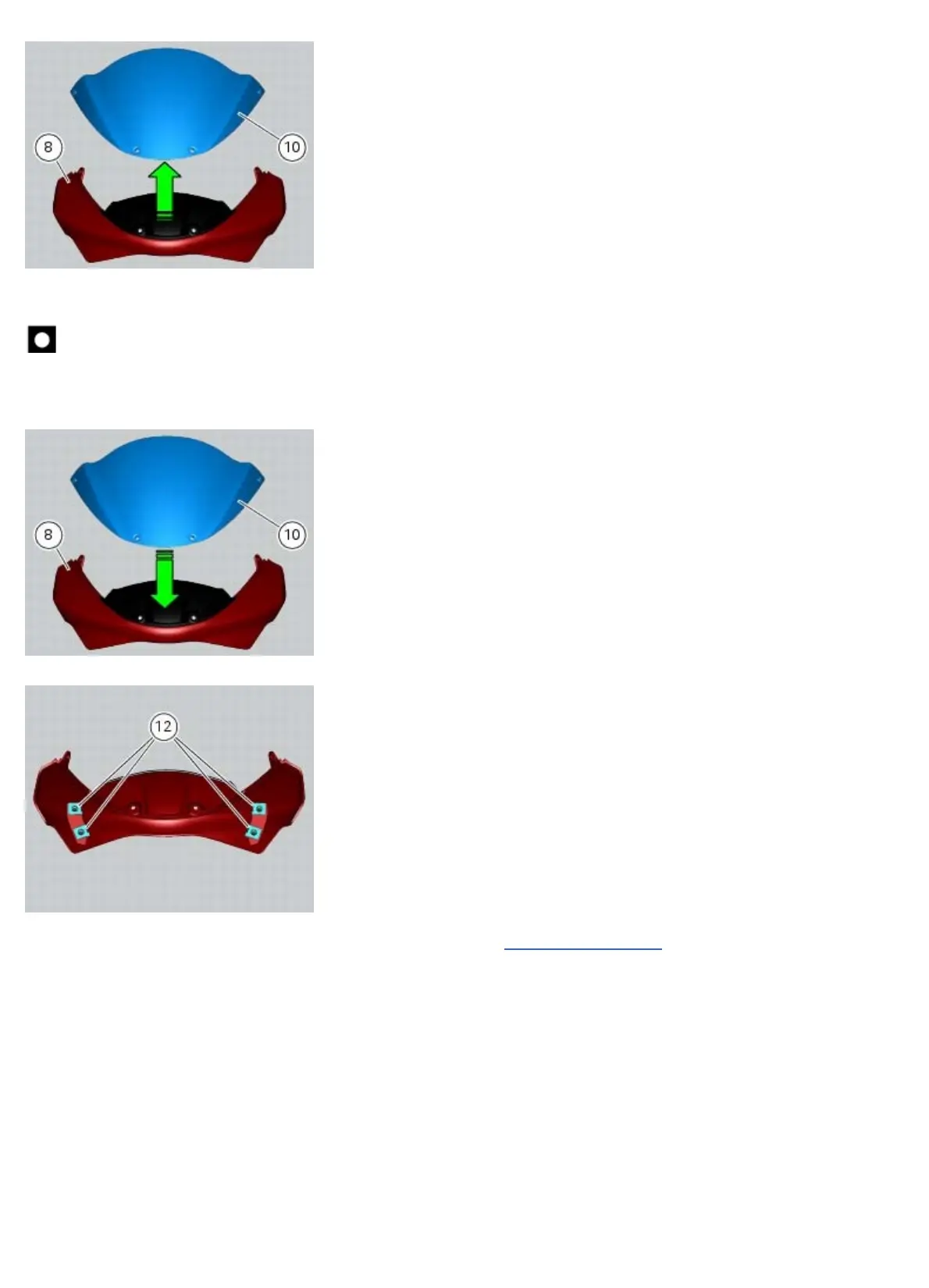

Fit the Plexiglas windscreen (10) on the headlight fairing (8) as shown.
Make sure that the quick-couplings (12) are in place on headlight fairing brackets and oriented as shown in the figure.
Insert the screws (13) with washers (14) and nuts (11).
Tighten the screws (13) to a torque of 0.2 Nm ± 10%(Sect. 3 - 3,
Frame torque settings) while holding the nuts (11).
