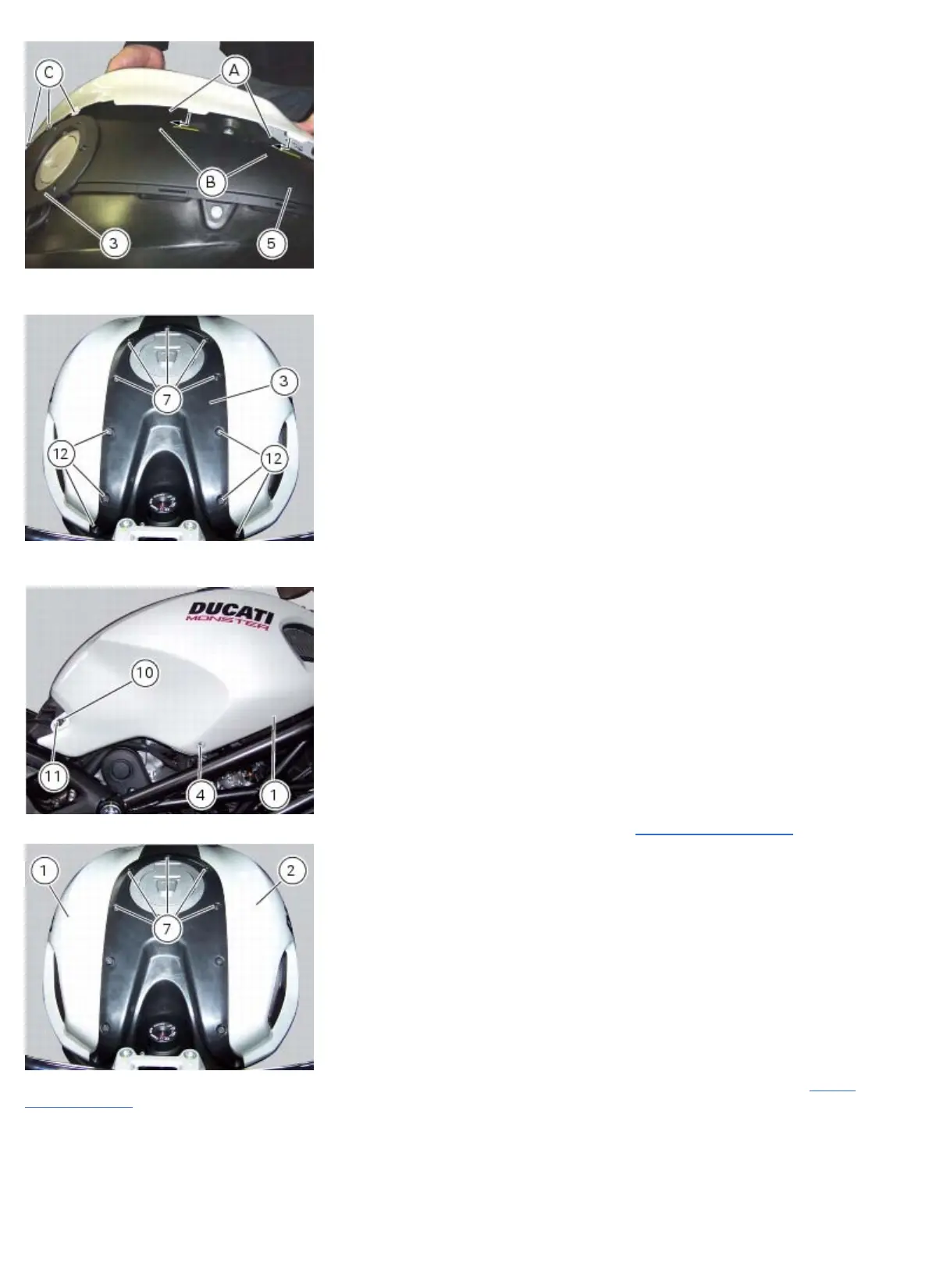

Insert the retaining screws (7) and (12) in the front tank cover (3), starting with the front screws.
Insert the screws (11) complete with the nylon washers (10) and screws (4) in the RH tank cover (1) and LH tank cover
(2).
Tighten the screws (7) around the tank plug to a torque of 2 Nm ±10% (Sect. 3 - 3, Frame torque settings).
Tighten the screws (4) and (11) and the remaining special screw (9) to a torque of 2 Nm ±10% (Sect. 3 - 3, Frame
torque settings).
