Starter contactor

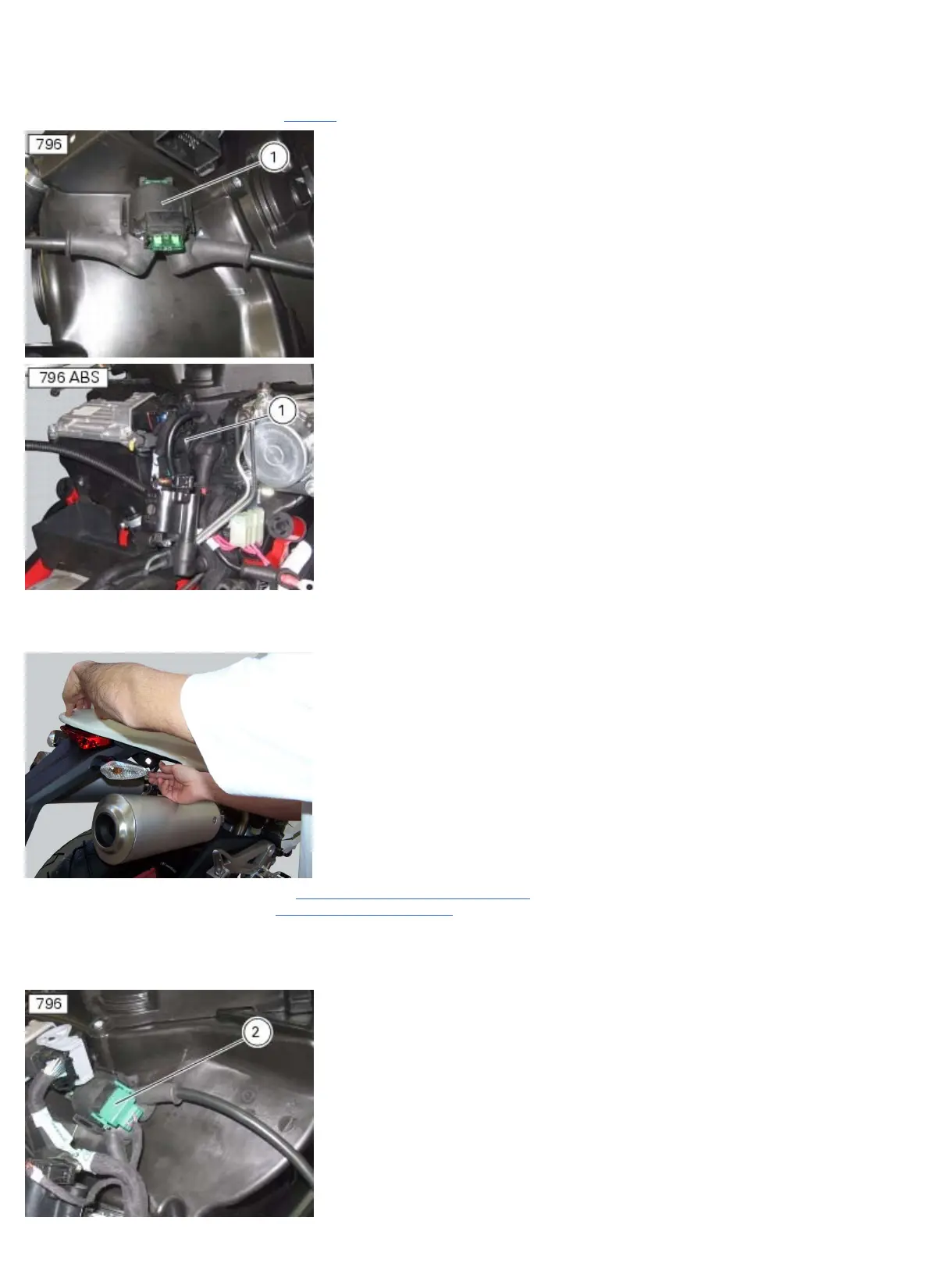

The starter motor contactor (1) is elastically mounted to the airbox.
Disconnect the battery (Sect. 6 - 2,
Battery).
To reach the solenoid starter it is necessary to remove the seat, so insert the key in the lock and simultaneously apply
downward pressure in the area of the catch to release the pin.
Pull the seat backwards to release it from the front catches and remove it from the frame.
Remove the tank covers (Sect. 5 - 2, Removal of the fuel tank fairings).
Remove the fuel tank (Sect. 8 - 2,
Removal of the fuel tank).
Disconnect the wiring connector (2) of the starter contactor from the wiring harness.
Remove the solenoid starter (1) from its housing.
Remove the protective caps (A).
