Electric starting system
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_6_3.27.1.html[11/12/2015 18:40:21]

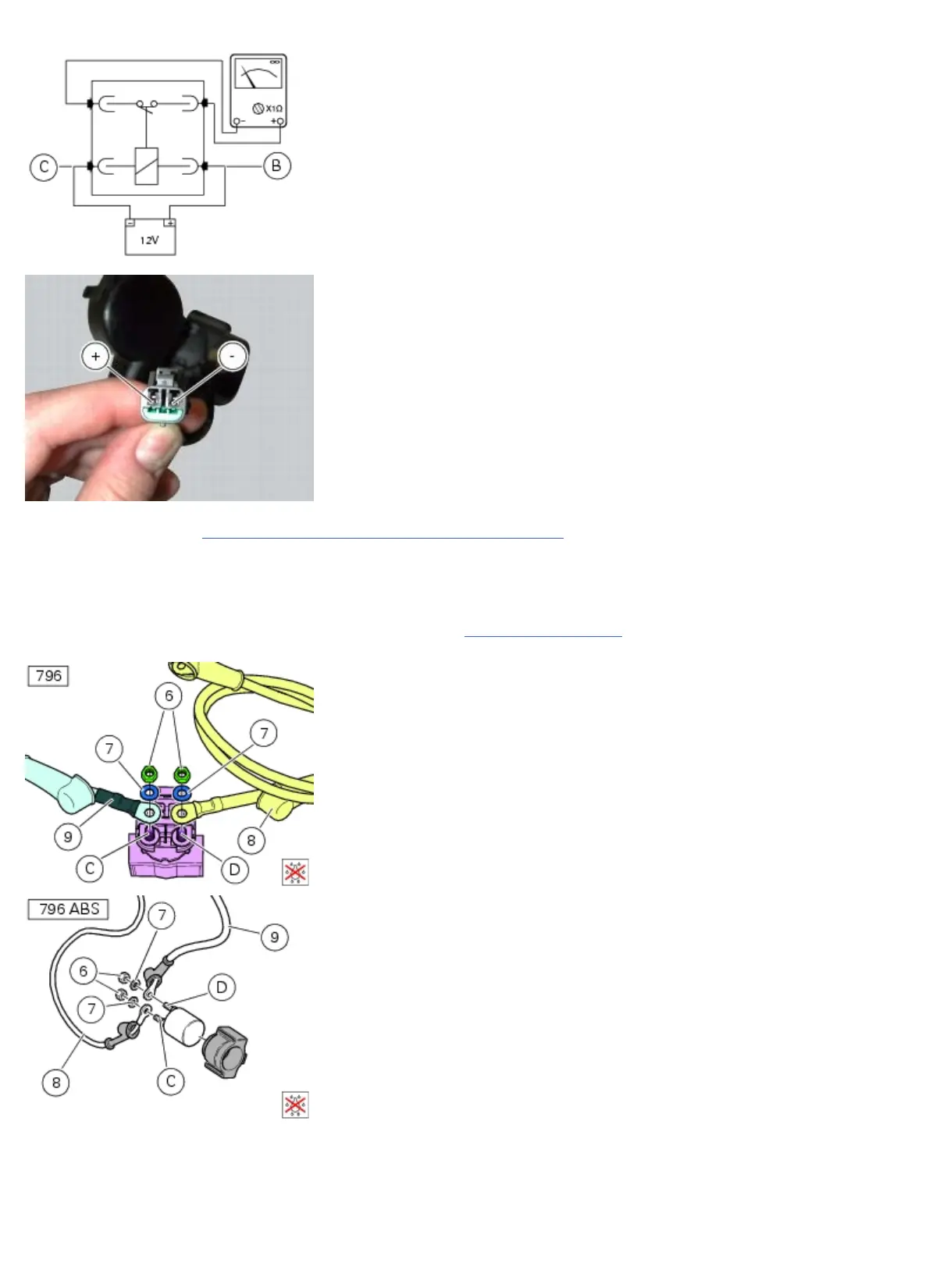

With a multimeter connected between the two poles (threaded pins (C) and (D) of the contactor, check for electric
continuity (Sect. 6 - 13,
Using a multimeter to check the electrical systems). If there is no electrical continuity, renew the
solenoid.
On refitting, ensure that terminals (C) and (D) are not oxidised.
Connect the wires (8) and (9) to the contactor terminals.
Insert the two bolts (7) and the nuts (6).
Tighten the nuts (6) to a torque of 4 Nm ±10% (Sect. 3 - 3,
Frame torque settings).
Spray suitable protectant onto nuts (6).
Install solenoid starter (1) engaging it onto tabs (E), positioning it as shown in the figures.
Refit the wiring connector (2) to the wiring and refit the protective caps (A).
