Lights and indicating devices
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_6_4.28.1.html[11/12/2015 18:40:22]
If this strategy is not performed, check the correct operation of the various parts involved.

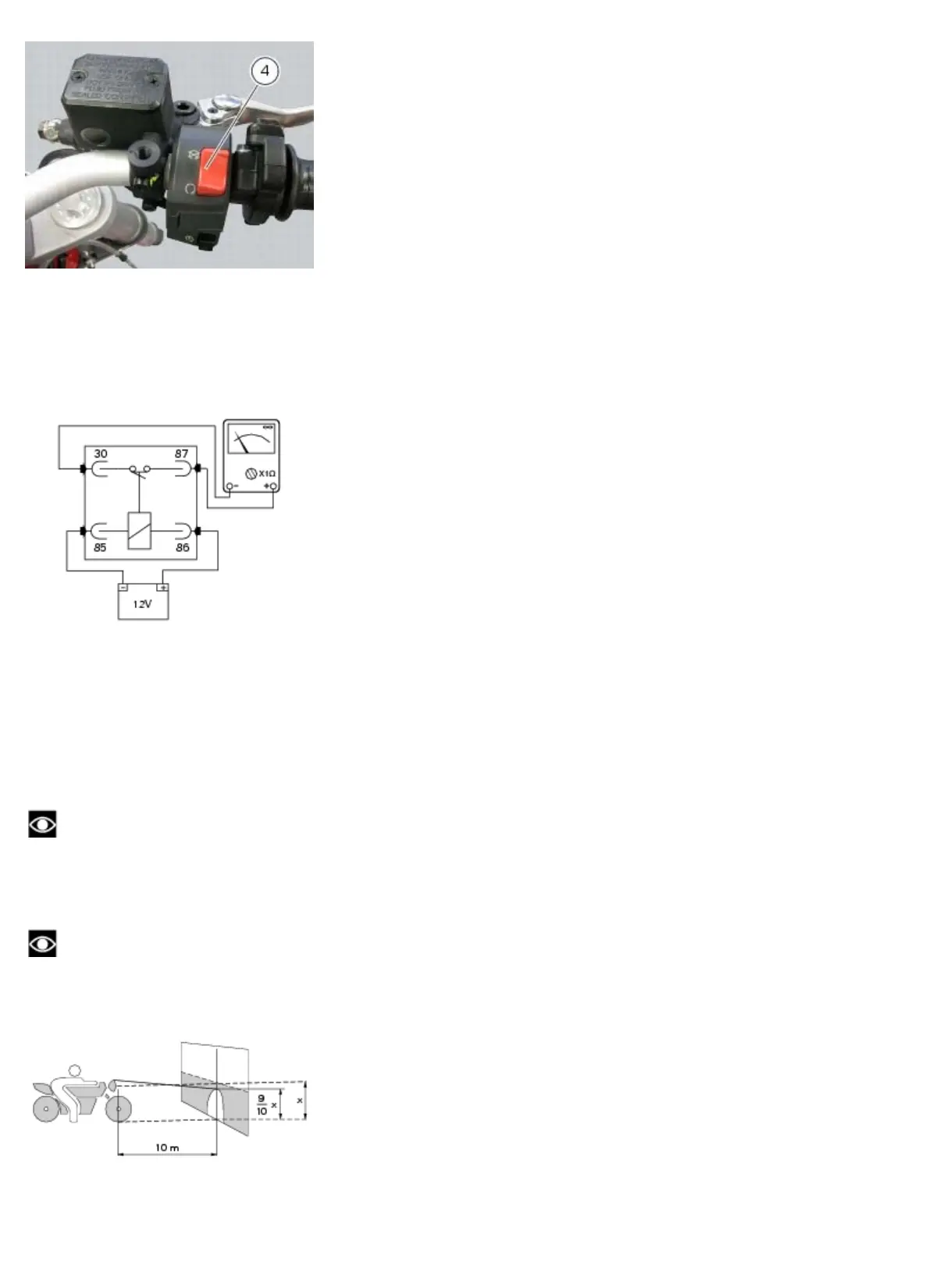

Checking operation of the high beam lights relay
Disconnect the relay (1) from the electrical system and apply 12 V (battery voltage) between contacts (86) and (85)
(small contacts): you should hear a click that confirms that the internal electromagnet has switched.
Connect a multimeter to contacts (30) and (87) (big contacts) to check for the full scale reading (analogue tester) or
buzzer (digital tester). If this does not occur, the part must be renewed.
Refitting is the reverse of removal.
Headlight aim
The motorcycle must be perfectly upright with the tires inflated to the correct pressure and with a rider seated, perfectly
perpendicular to the longitudinal axis.
Position the motorcycle 10 metres from a wall or a screen.
On the wall or surface, draw a horizontal line at the same height from the ground as the centre of the headlight and a
vertical line aligned with the longitudinal axis of the motorcycle.
Note
If possible, perform this check in conditions of low ambient light.
Switch on the low beam. The height of the upper limit between the dark area and the lit area must not be more than nine
tenths of the height of the centre of the headlight from the ground.
Note
This is the procedure specified by Italian regulations for checking the maximum height of the light beam.
The vertical alignment of the headlamp can be adjusted manually by turning screw (1).
Turn the screw (2) to set beam height.
