immobilizer and transponder
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_6_8.32.1.html[11/12/2015 18:40:25]

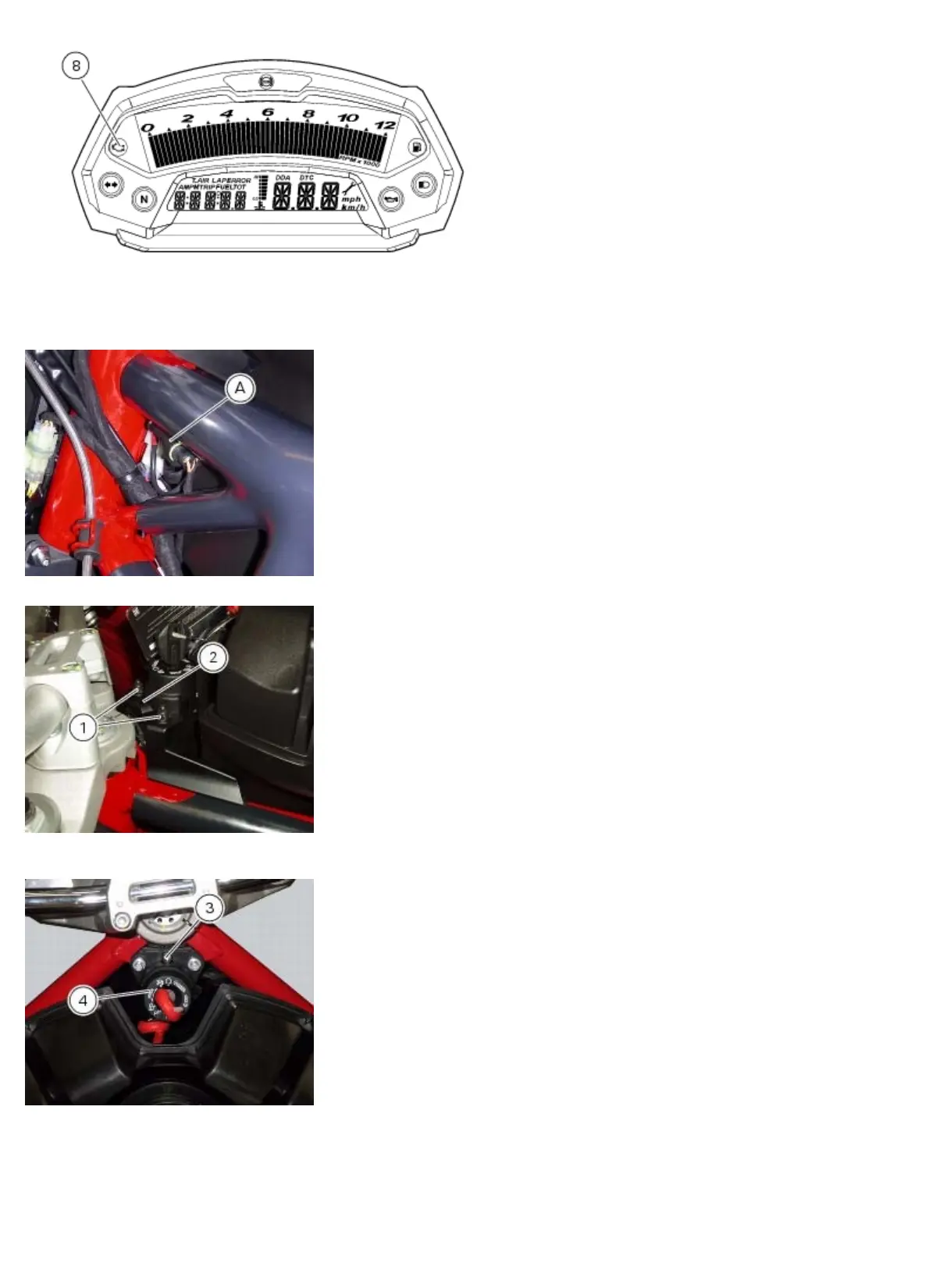

Removal of the immobilizer
Set the ignition switch to OFF.
Disconnect the antenna wiring connector (A) from the main wiring loom.
Unscrew the two nuts (1) and remove the cover (2).
Undo the screw (3) fastening ignition switch cover (4) and remove the cover (4).
Slide out the immobilizer antenna (5) from ignition switch.
