System components
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_6_12.35.1.html[11/12/2015 18:40:26]

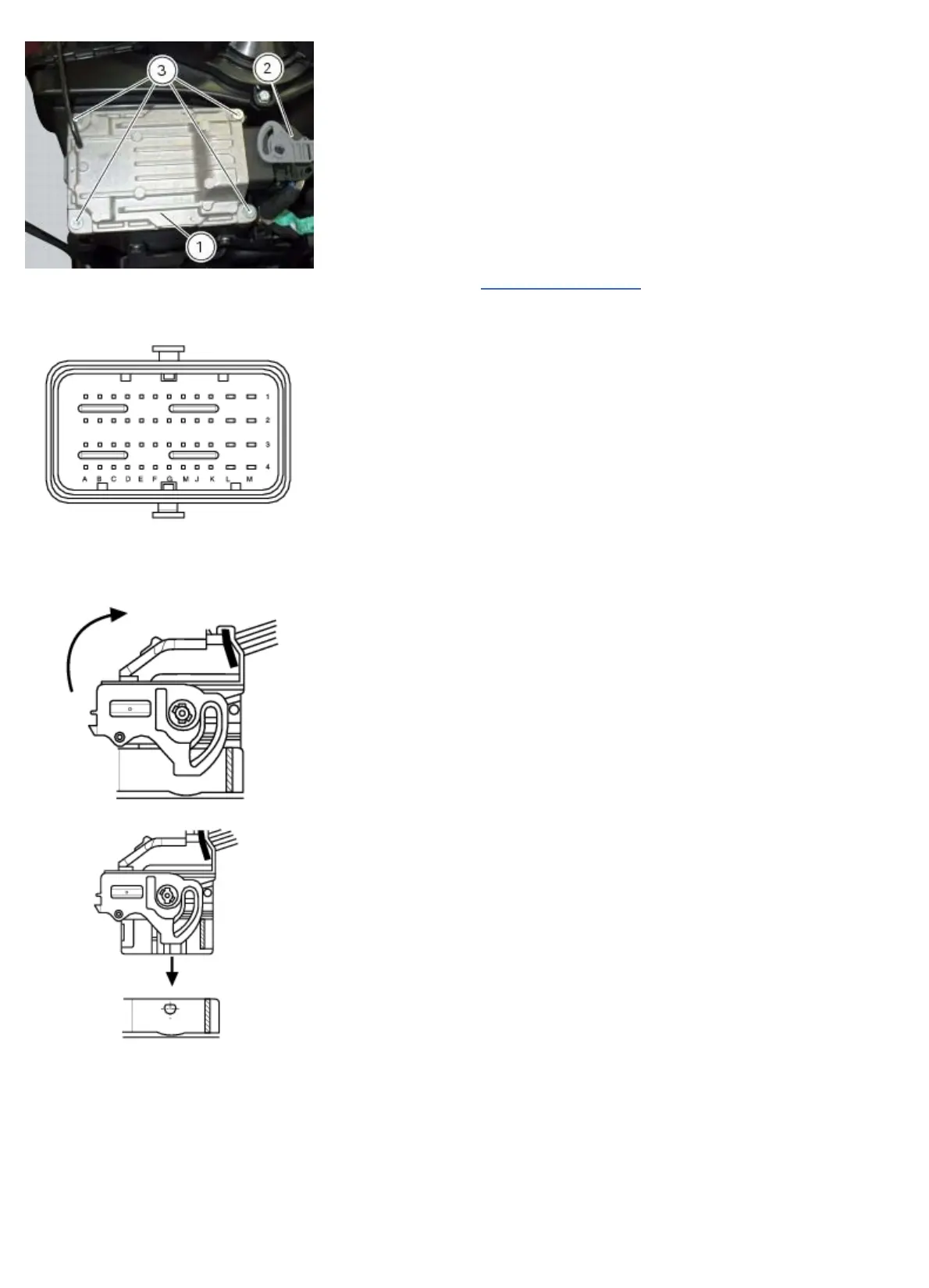

Tighten the screws (3) to a torque of 5 Nm ±10% (Sect. 3 - 3, Engine torque settings).
The connector (2) is 48 PIN connector.
Make sure that the clip (A) for the connector (2) is in its “open” position (as shown in the diagram).
Rotate the clip (A) to secure the connector (clip in “locked” position).
Refit all the removed parts in the reverse order to that in which they were removed.
Fuel injectors
The injectors (1) deliver the correct quantity of fuel required for optimal engine operation.
