Front brake control
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_7_3.40.1.html[11/12/2015 18:40:30]

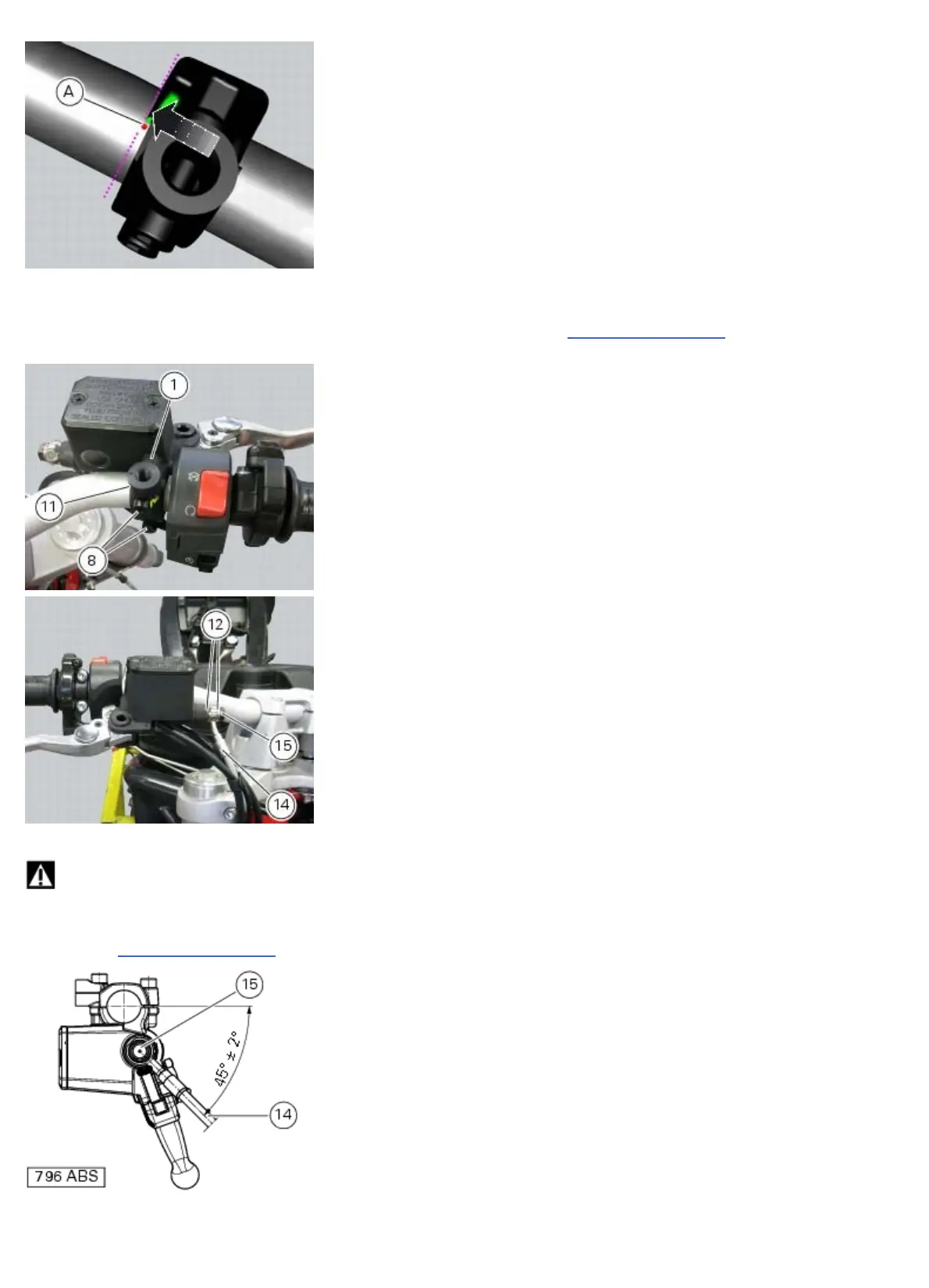

Refit the U-bolt (11) on the handlebar and insert the screws (8).
Locate the pipe (14) and the gaskets (12) on the master cylinder unit (1) and secure with the special screw (15), but do
not tighten at this stage.
Tighten the retaining screws (11) to a torque of 10 Nm ±10% (Sect. 3 - 3,
Frame torque settings) in the sequence 1-2-1
starting from the upper screw.
Warning
If incorrectly positioned, the hose can affect brake operation and foul moving parts.
Orientate the pipe (14) as illustrated in the figure and then tighten the special screw (15) to a torque of 23 Nm ± 10 %
(Sect. 3 - 3,
Frame torque settings).
