Front brake control
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_7_3.40.1.html[11/12/2015 18:40:30]
Warning

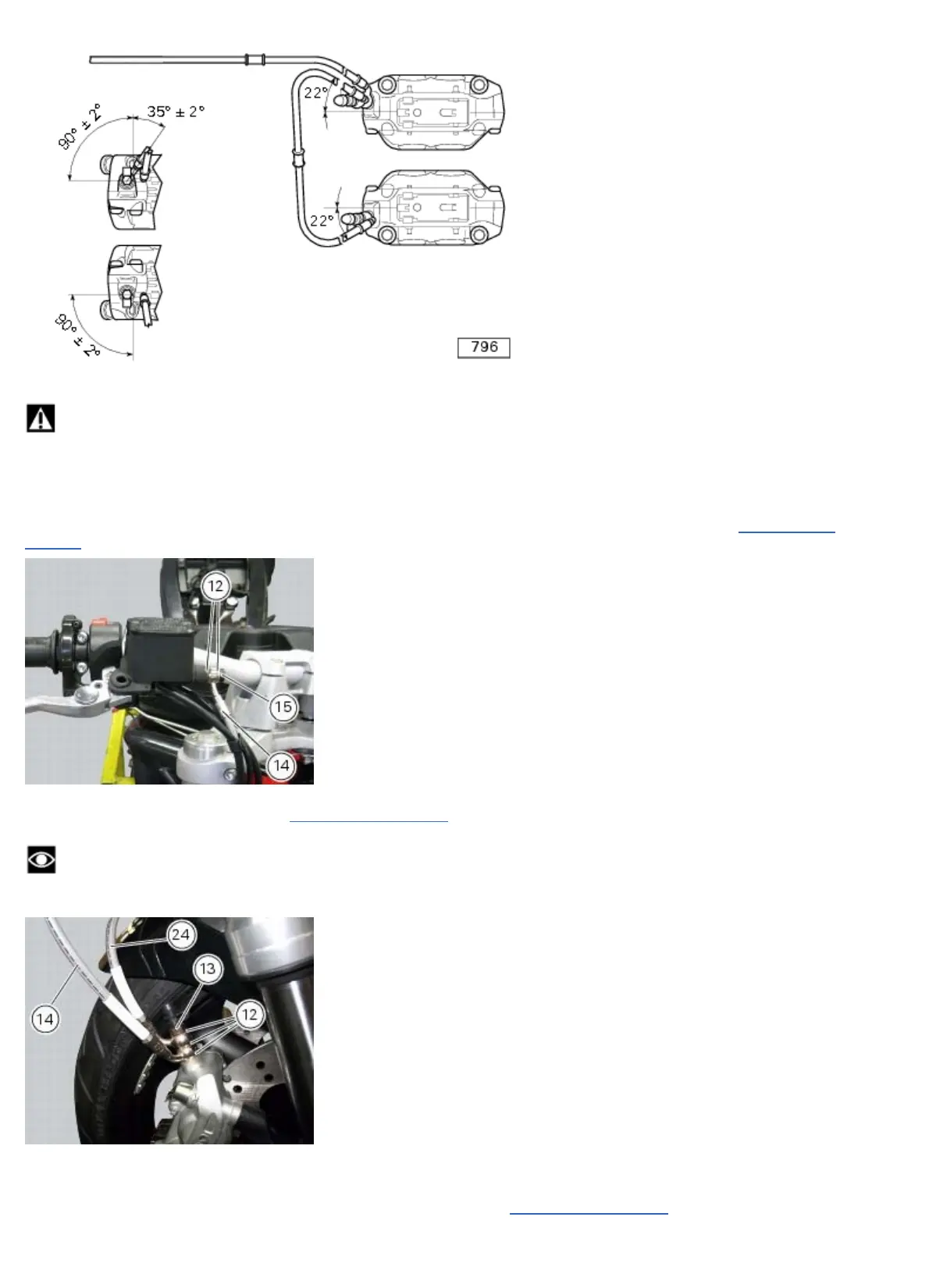

If incorrectly positioned, the hose can affect brake operation and foul moving parts. Position the hose as shown in the
figure.
When reconnecting the brake hose to the calliper or master cylinder, make sure to install the sealing washers (12) either
side of the hose end fitting.
After orientating the coupling, lock the special screw (15) to a torque of 23 Nm ±10% (Sect. 3 - 3,
Frame torque
settings).
Reconnect the hoses (14) and (24) to the front brake callipers (7) and (18) and tighten the screws (13) and (27) to a
torque of 23 Nm ±10% (Sect. 3 - 3,
Frame torque settings).
Note
Make sure that internal pipe coupling (14) and the external pipe coupling (24) are installed in the right brake calliper
(18).
Fit the RH calliper (18) over the disc.
Apply the recommended grease to the screws (17).
Hand tighten the bolts (17) to secure the callipers to the fork legs.
Tighten the screws initially to a torque of 2 Nm ±10% (Sect. 3 - 3,
Frame torque settings).
Repeat the operation for the left brake calliper (7).
