Handlebar unit: clutch lever
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_7_8B.46.1.html[11/12/2015 18:40:33]

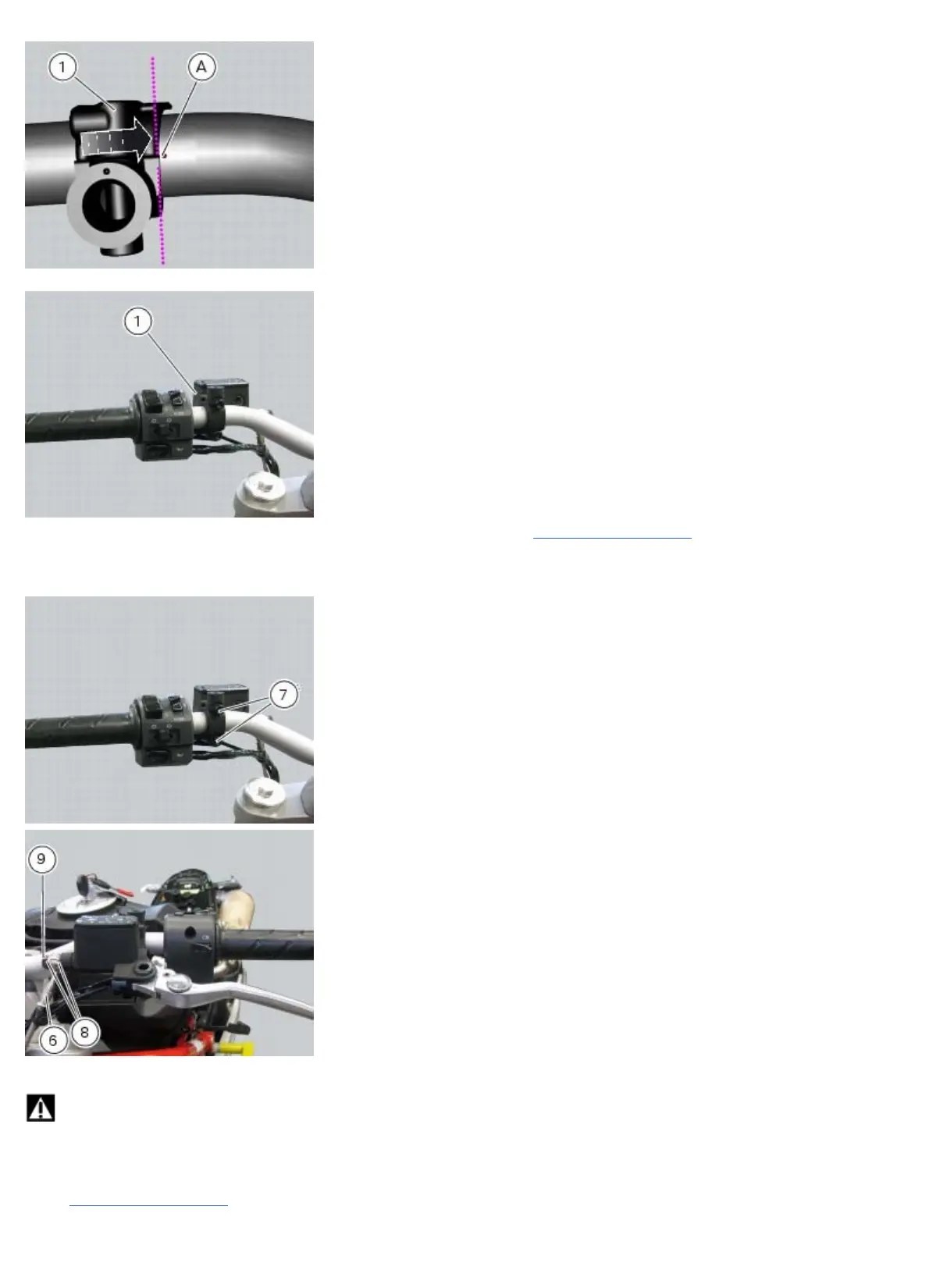

Tighten the fixing screws (7) to a torque of 10 Nm ±10% (Sect. 3 - 3, Frame torque settings) following the sequence 1-2-
1 starting from the upper screw.
Locate the hose (6) and sealing washers (8) on the master cylinder (1) and secure with the banjo bolt (9), but do not
tighten at this stage.
Warning
An incorrectly positioned hose can cause clutch faults and interfere with moving parts.
For the positioning of the clutch hose (6) and retaining clips, see the illustration at the end of this section.
Orientate the hose (6) as illustrated in the figure and then tighten the special screw (9) to a torque of 4 Nm ± 10% (Sect.
3 - 3,
Frame torque settings).
