Gearchange mechanism
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_7_9.47.1.html[11/12/2015 18:40:33]

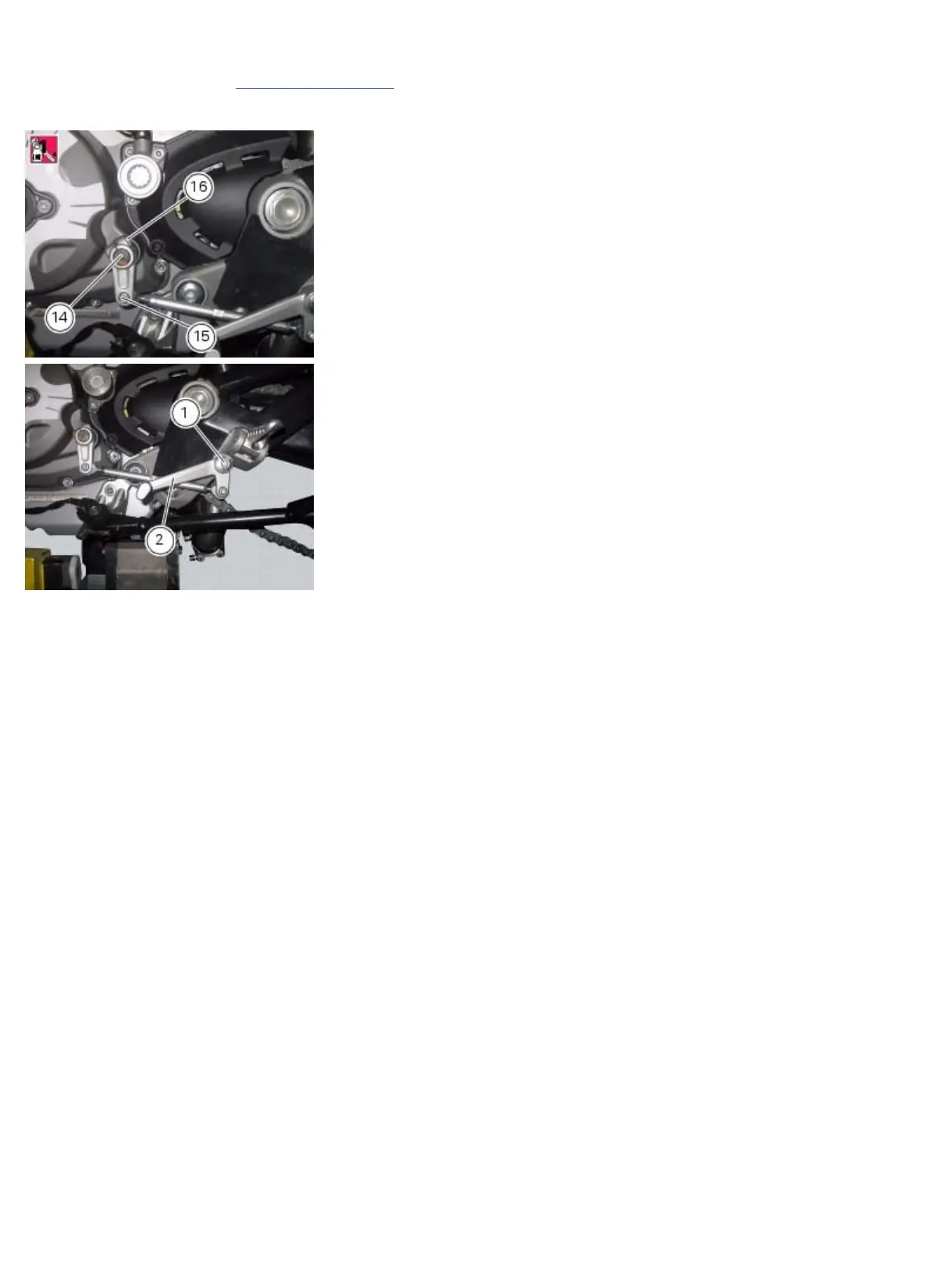

In particular, apply threadlocker to the screw (16), the pivot bolt (1) and the screw (15) and then tighten them to the
specified torque (Sect. 3 - 3,
Frame torque settings).
-the screws (15) and (16) to a torque of 10 Nm ±10%;
-the pivot bolt (1) to a torque of 24 Nm ±10%.
