Final drive
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_7_14.52.1.html[11/12/2015 18:40:36]

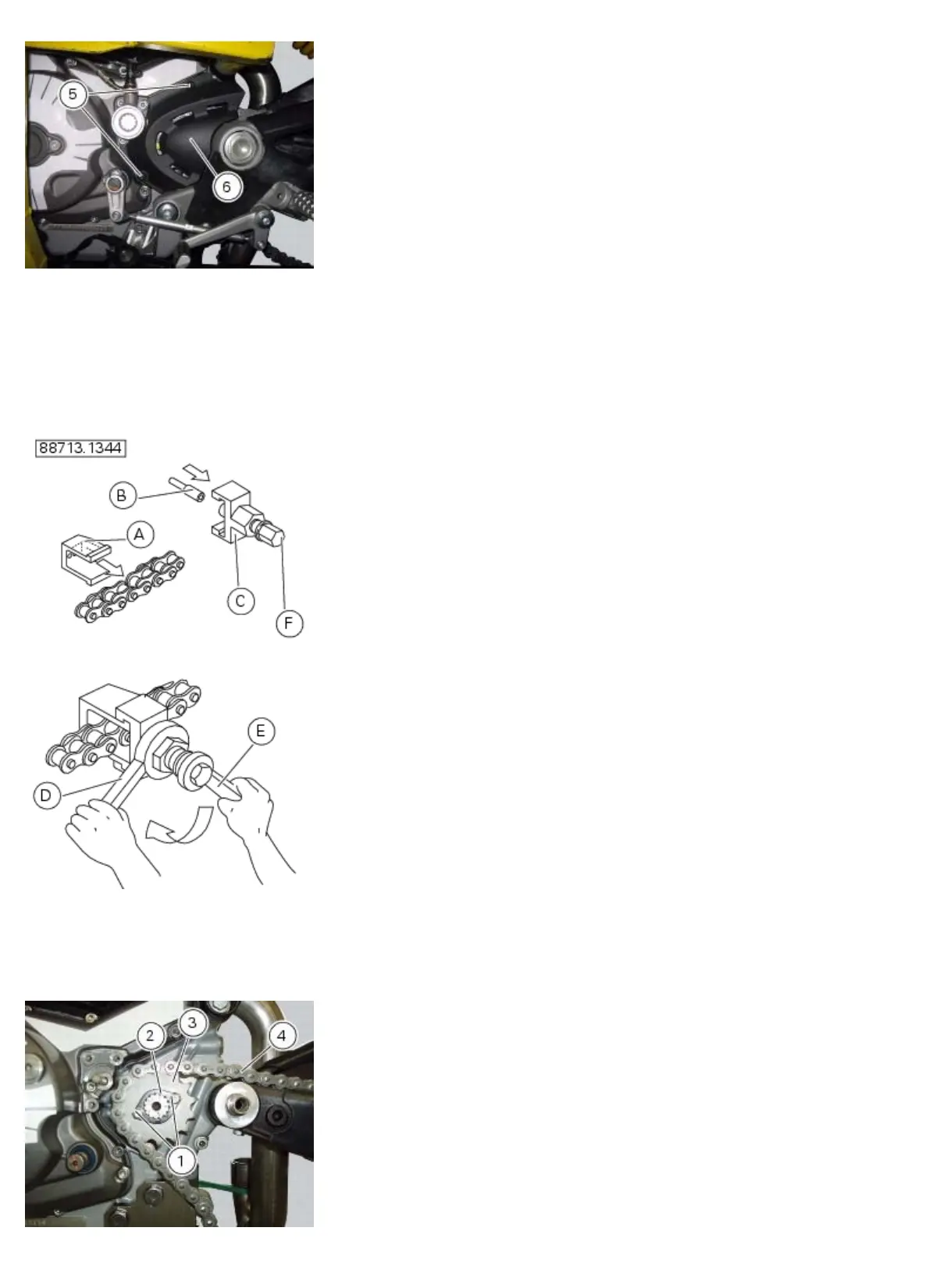

Remove the chain with the tool code 88713.1344.
The tool is composed of a holder (A), punch (B), body (C) and two wrenches (D) and (E).
Fit the link to be opened into the holder (A).
Fit a punch (B) into the body (C) and manually unscrew the screw until the punch no longer protrudes.
Fit the holder (A) and link into the body (C).
Manually turn the screw (F) on body (C) so that the punch (B) locates against the pin, taking care that they are aligned
with each other.
Fit hex wrench (D) into the hexagonal part of the body (C) and wrench (E) onto the bolt.
Turn the bolt (F) clockwise to push out the pin.
Remove the chain.
Engage a low gear and loosen the two screws (1) on the sprocket stop plate (2).
Remove the plate (2) from the gearbox secondary shaft.
Slide the engine sprocket (3) together with the chain (4) from the gearbox secondary shaft and then remove the chain (4)
from the sprocket.
