Tail light-number plate holder and locks
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_7_18.56.1.html[11/12/2015 18:40:38]

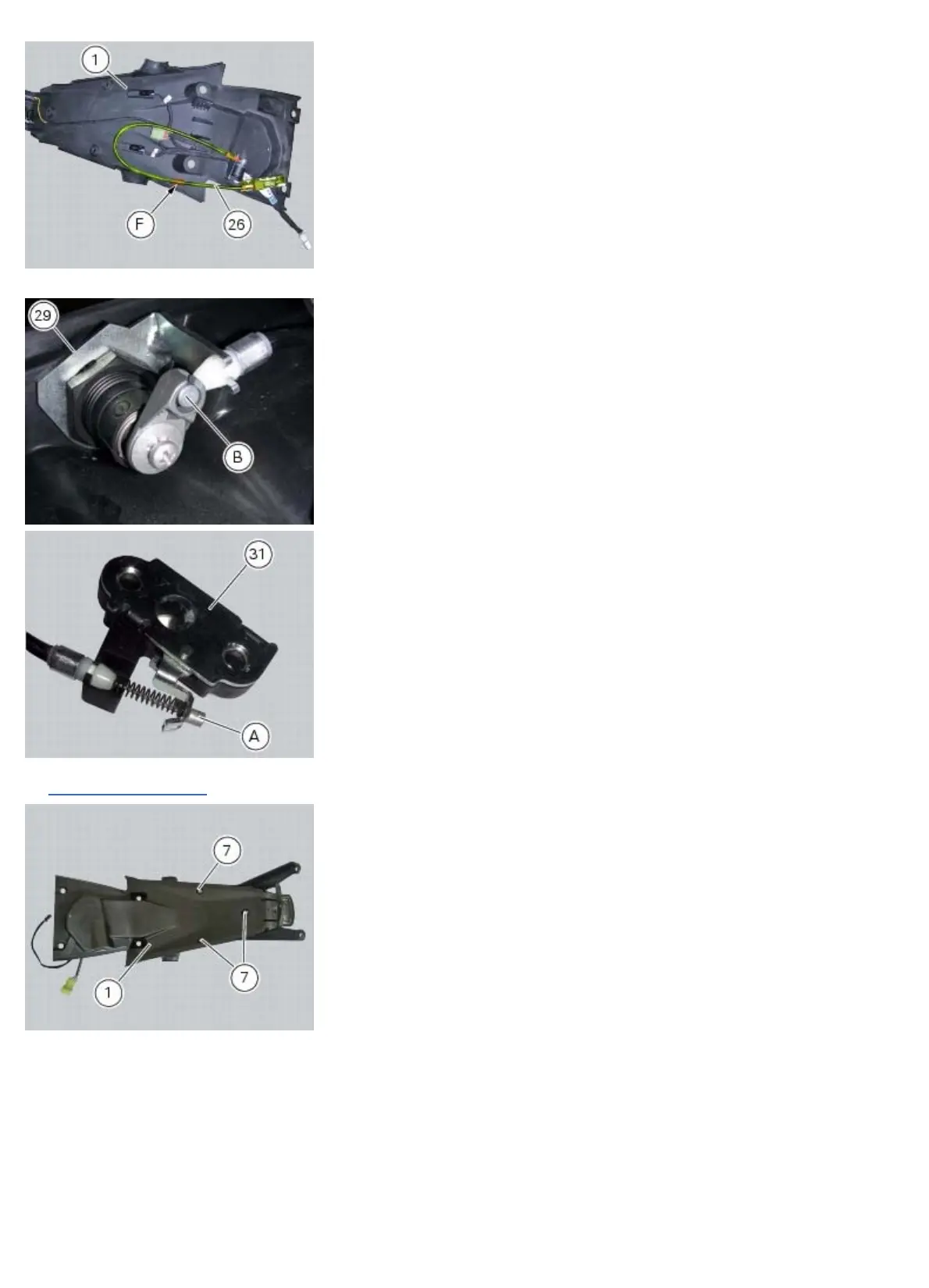

Refit the cable end fitting (B) in the lock lever (29) and end fitting (A) in the latch (31).
Refit the splashguard (1) on the number plate holder (3) tightening the screws (7) to a torque of 3.5 Nm ±10% (Sect. 3 -
3,
Frame torque settings).
Refit the tail light - number plate holder assembly from the rear subframe and the plate (24) as described in the previous
paragraph.
Removal of the number plate holder
The Australia version features the gravel guard (32) with screws (33) and spacers (34), within the number plate holder
assembly.
Unscrew the screws (33) securing gravel guard (32) to splashguard (1) and recover the spacers (34).
