Exhaust system
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_8_8.61.1.html[11/12/2015 18:40:41]

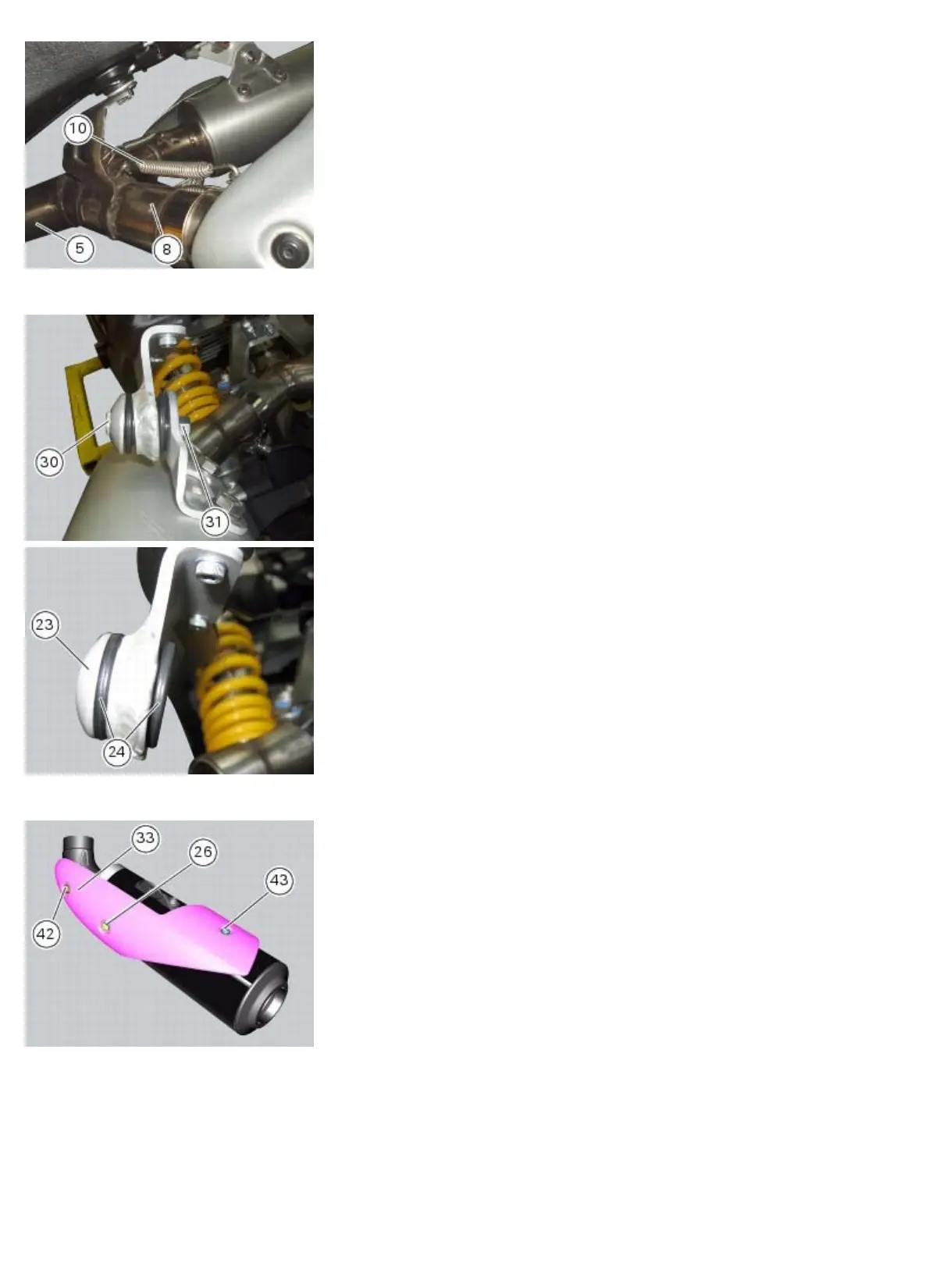

While holding the nut (31), unscrew the retaining screw (30) and remove the LH silencer (8) from the motorcycle.
Recover the spacer (23) and the rubber bushes (24).
Remove the left-hand side heat shield (33) loosening screws (26), (42) and (43); recover the spacers (25), (41) and
(44) and the washers (34).
Follow the same procedure to remove the RH silencer (7).
Remove the protection (35), loosening the screw (42) and recovering the washers (34) and the spacer (25).
