Cylinder head assemblies: timing belt covers/timing system
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_9_4B.68.1.html[11/12/2015 18:40:45]

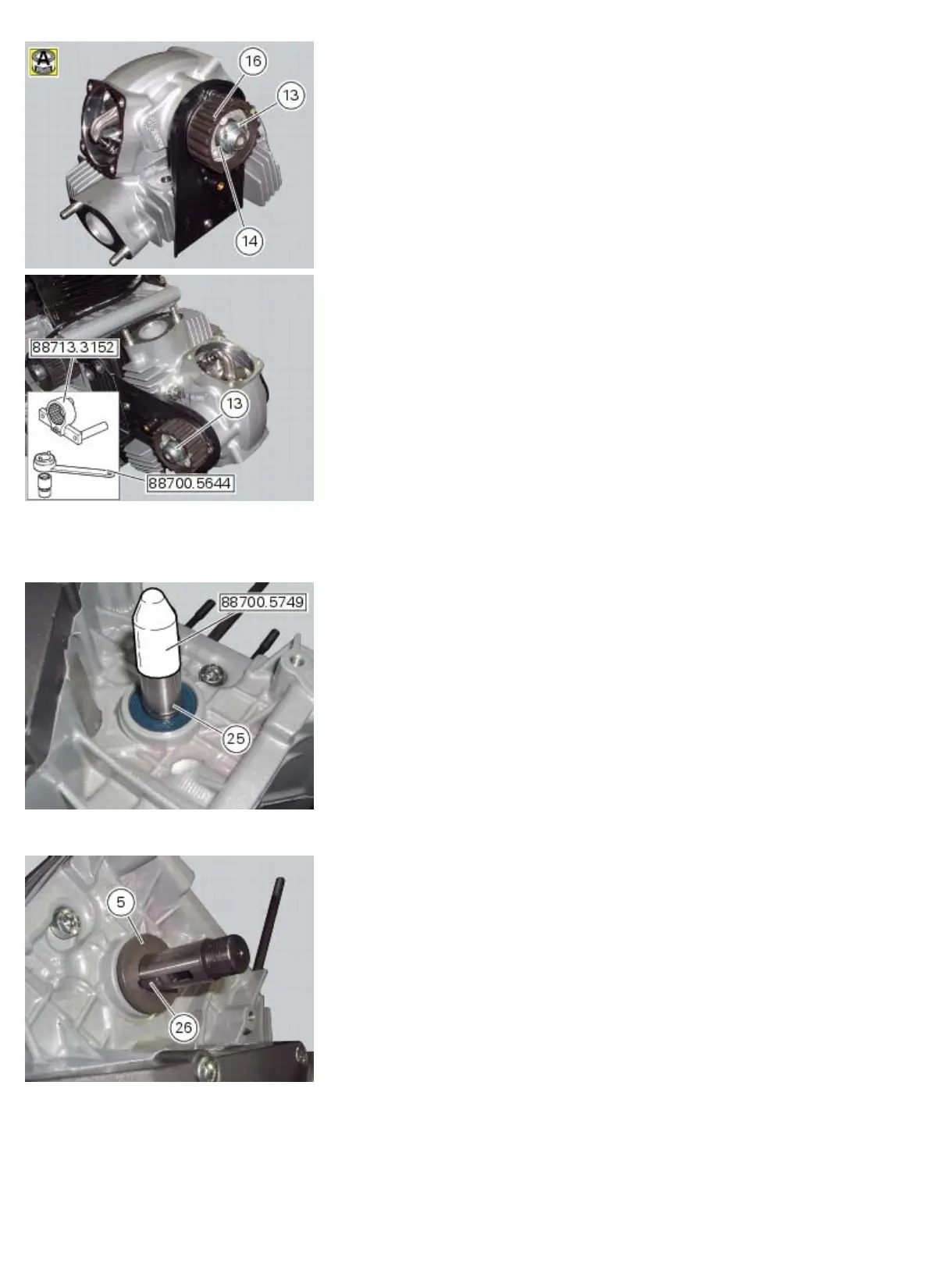

Refitting the timing belt driveshaft pulleys
Install the circlip (25) on the pulley side of the timing belt driveshaft. Drive it into its seat using the protective
cap 88700.5749 and the relative drift.
Install spacer (5) with the slot facing the crankcase.
Fit the first key (26), the inner pulley (22), the guide washer (10) and the second key (24) on the timing belt driveshaft.
