Cylinder head assemblies: timing belt covers/timing system
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_9_4B.68.1.html[11/12/2015 18:40:45]

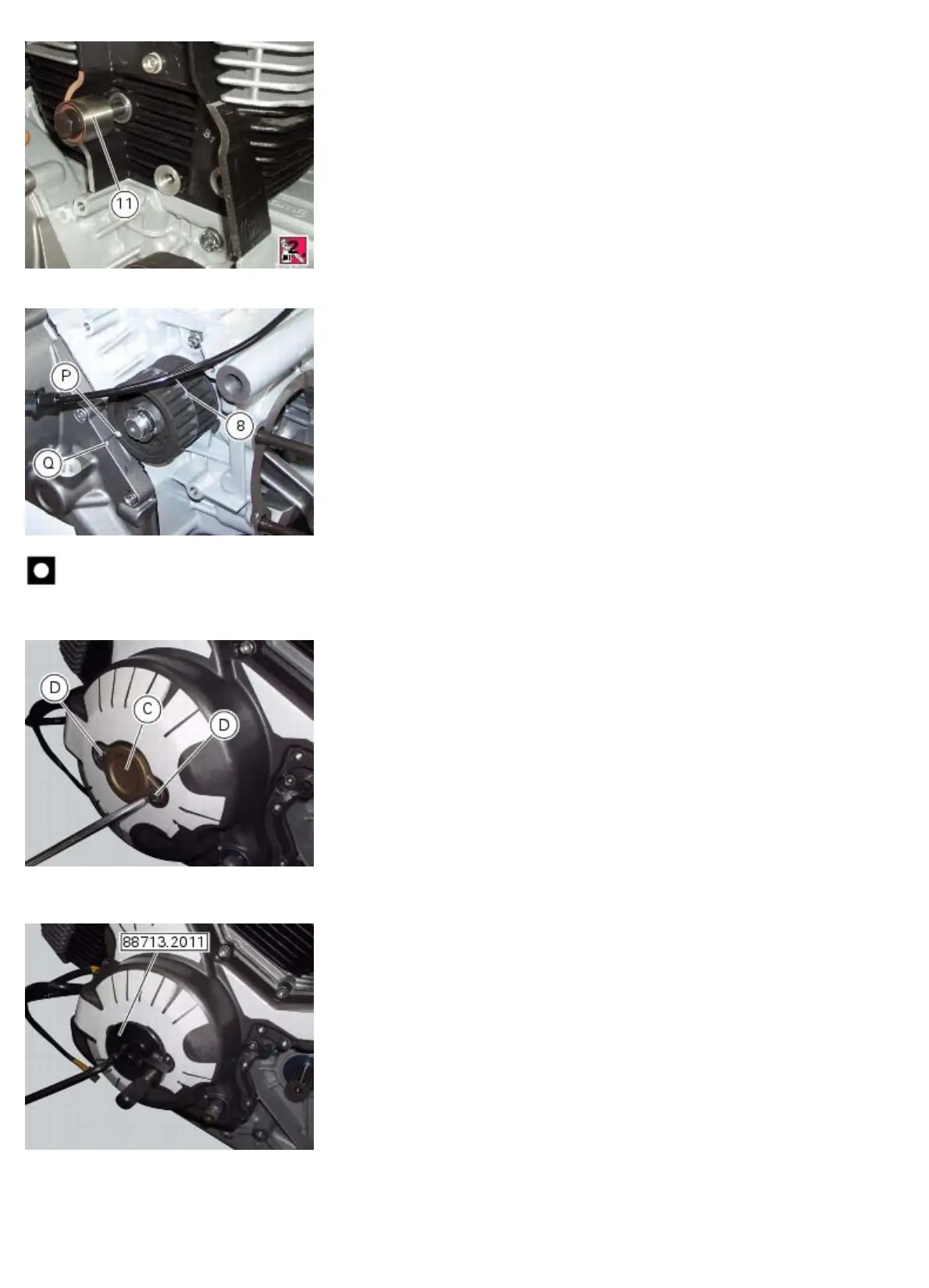

Position the crankshaft so that the piston of the horizontal cylinder is at TDC of its power stroke. This is achieved by
aligning the timing mark (P) on the timing belt driveshaft pulley (8) with the reference notch (Q) on the clutch cover.
Important
Turn the timing belt driveshaft pulley with the spark plugs removed from the engine.
Remove the inspection cover (C) from generator cover by unscrewing the two screws (D).
Install the service tool 88713.2011 in the generator cover to hold the crankshaft against rotation and secure it with the
relative pin.
Remove the screw (F) from the side cover (E) and recover the relevant washer.
