Refitting the valve covers
Always fit new O-rings (9) when refitting.

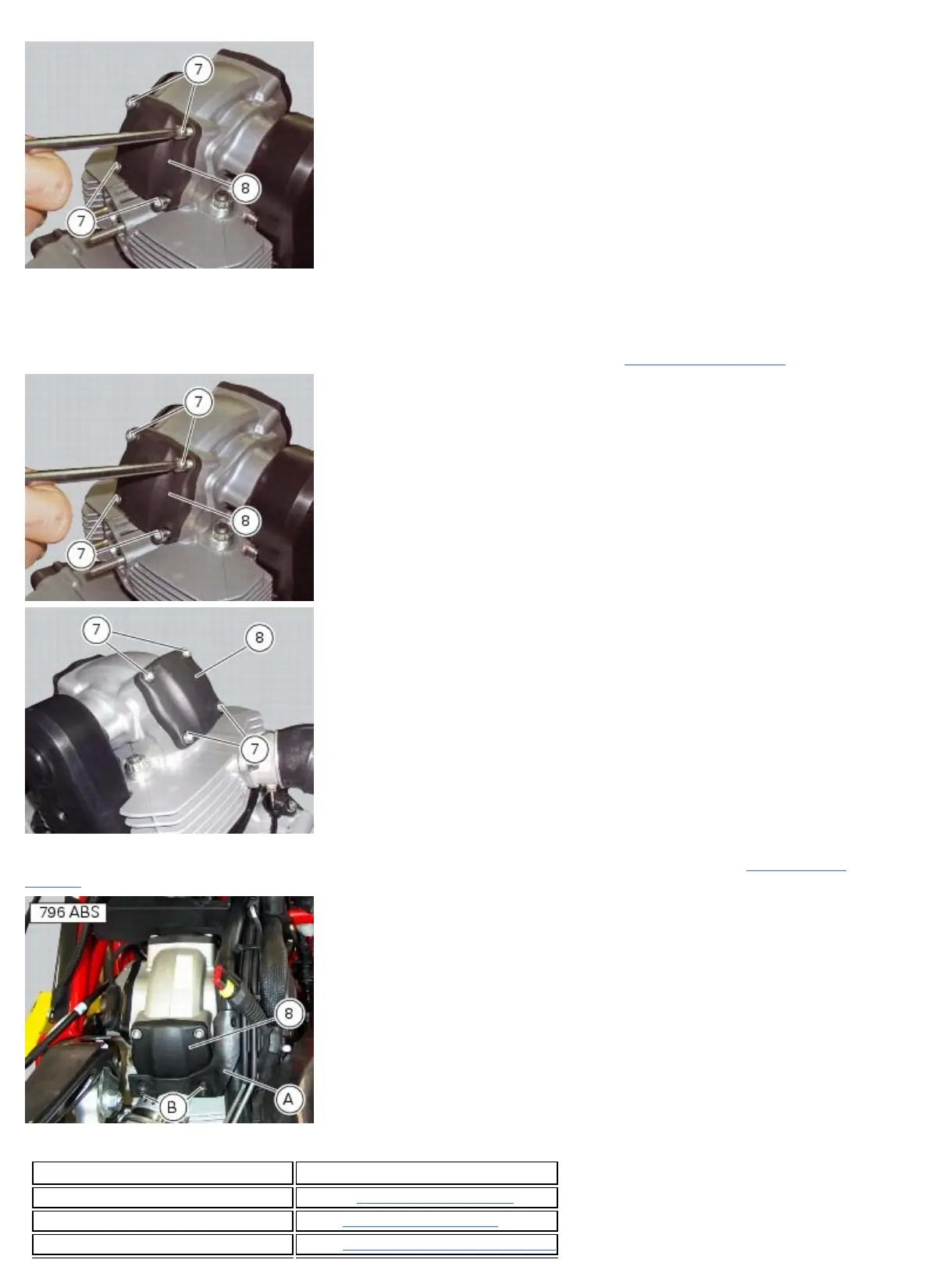

Fix the valve covers (8) with the relative O-ring (9) to the cylinder head.
Tighten the screws (7) to a torque of 10 Nm (Min. 9 Nm - Max. 11 Nm) (Sect. C 3,
Engine torque settings).
In the ABS version, the ABS pipe support (A) is fixed to the cover (8) of the exhaust-side vertical cylinder head. Refit the
support (A) and tighten the screws (B) to a torque of 10 Nm (Min. 9 Nm - Max 11 Nm) (Sect. 3 - 3,
Engine torque
settings).
Operations Section reference
Refit the oil cooler to the frame 9 - 2.2, Refitting the oil cooler
Refit the fuel tank 8 - 2,
Refitting the fuel tank
Refit the tank covers 5 - 2,
Refitting the fuel tank fairings
