Ducati Monster 796 - Page 58

Maintenance operations
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_4_3.17.1.html[11/12/2015 18:40:14]

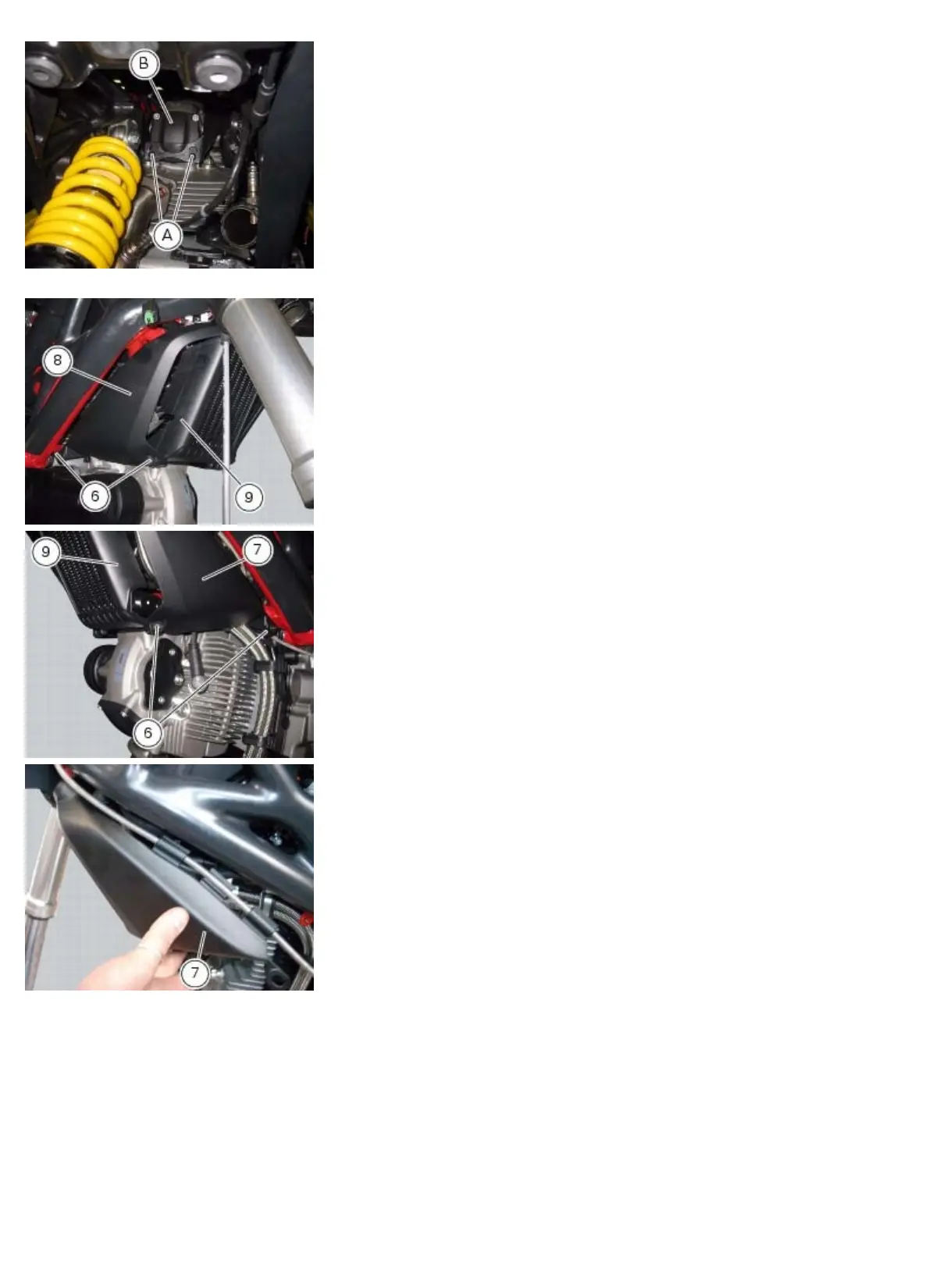

Loosen the screws (6) and remove the deflectors (7) and (8) and conveyor (9).
Loosen the screw (10) and recover the spacer (11) and the rubber mounting (12).
Slide the oil cooler (13) off the pins of the frame, towards the clutch-side of the motorcycle.
