Ducati Monster 796 - Page 617

Gearbox assembly: gearbox shafts
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_9_7B.76.1.html[11/12/2015 18:40:50]

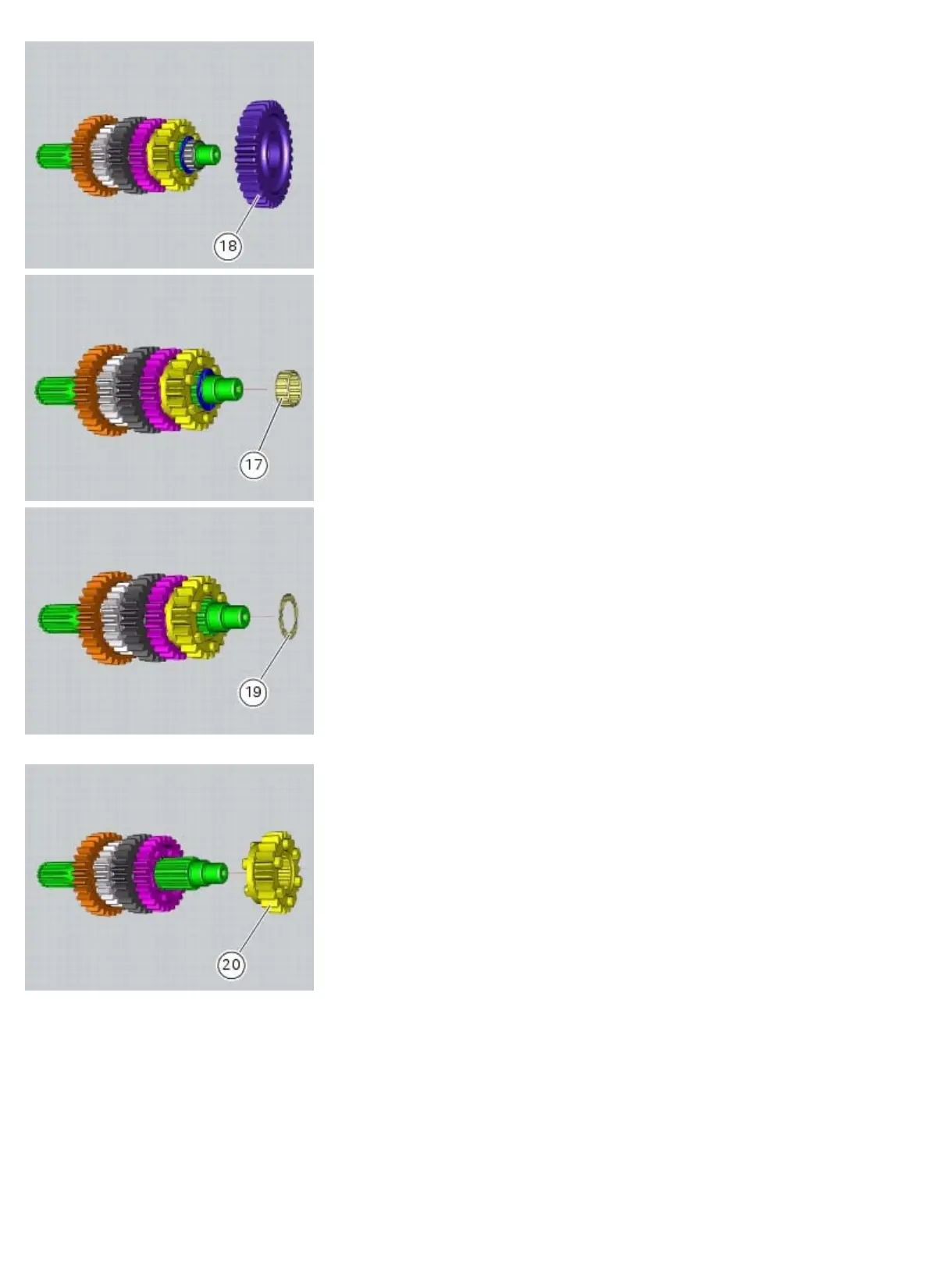

Remove the fifth speed driven gear (20).
Use two flat blade screwdrivers to remove the circlip (7) taking care not to damage the shaft surface.
Remove the circlip (7) and the splined washer (6).
