Gearbox assembly: gearbox shafts
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_9_7B.76.1.html[11/12/2015 18:40:50]

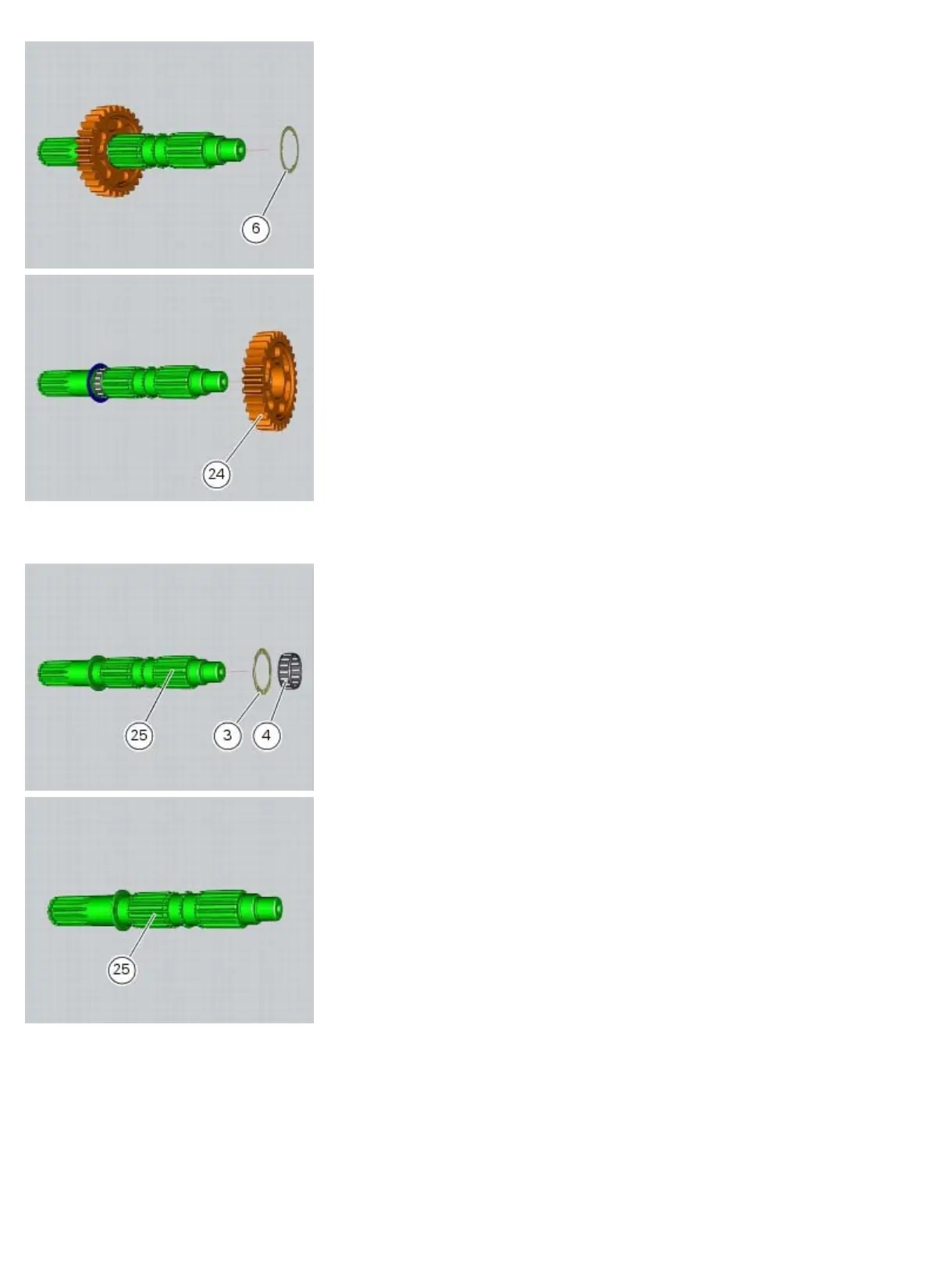

Withdraw the roller cage (4) and the shim (3). All the components have thus been removed from gearbox secondary shaft
(25).
Disassembly of the gearbox primary shaft
Remove the chain-side shim washer (11) and the clutch-side shim washer (1) from the primary shaft.
