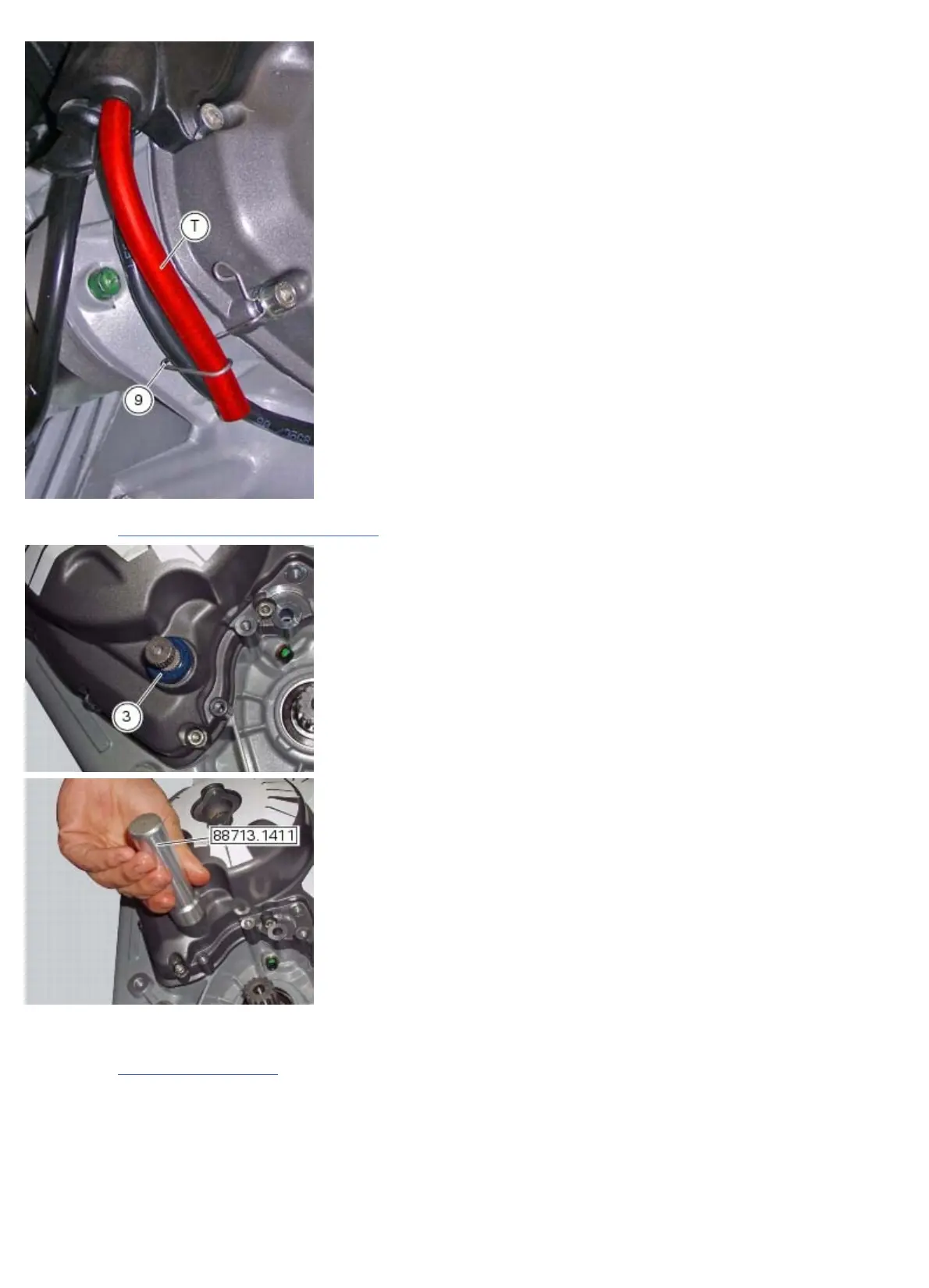

Damp the sealing ring (3) with alcohol and install it in the generator cover, in correspondence with the gearchange shaft
(Sect. 7 - 9,
Refitting the gearchange mechanism) by means of the suitable drift 88713.1411.
Make sure that the O-ring (4) is installed in the cover (5).
Apply threadlocker to the screws (6).
Tighten the two cover (5) retaining screws (6) in front of the crankshaft to torque of 5 Nm (Min. 4.5 Nm - Max. 5.5 Nm)
(Sect. 3 - 3,
Engine torque settings).
