Crankcase assembly: external components
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_9_9A.78.1.html[11/12/2015 18:40:52]

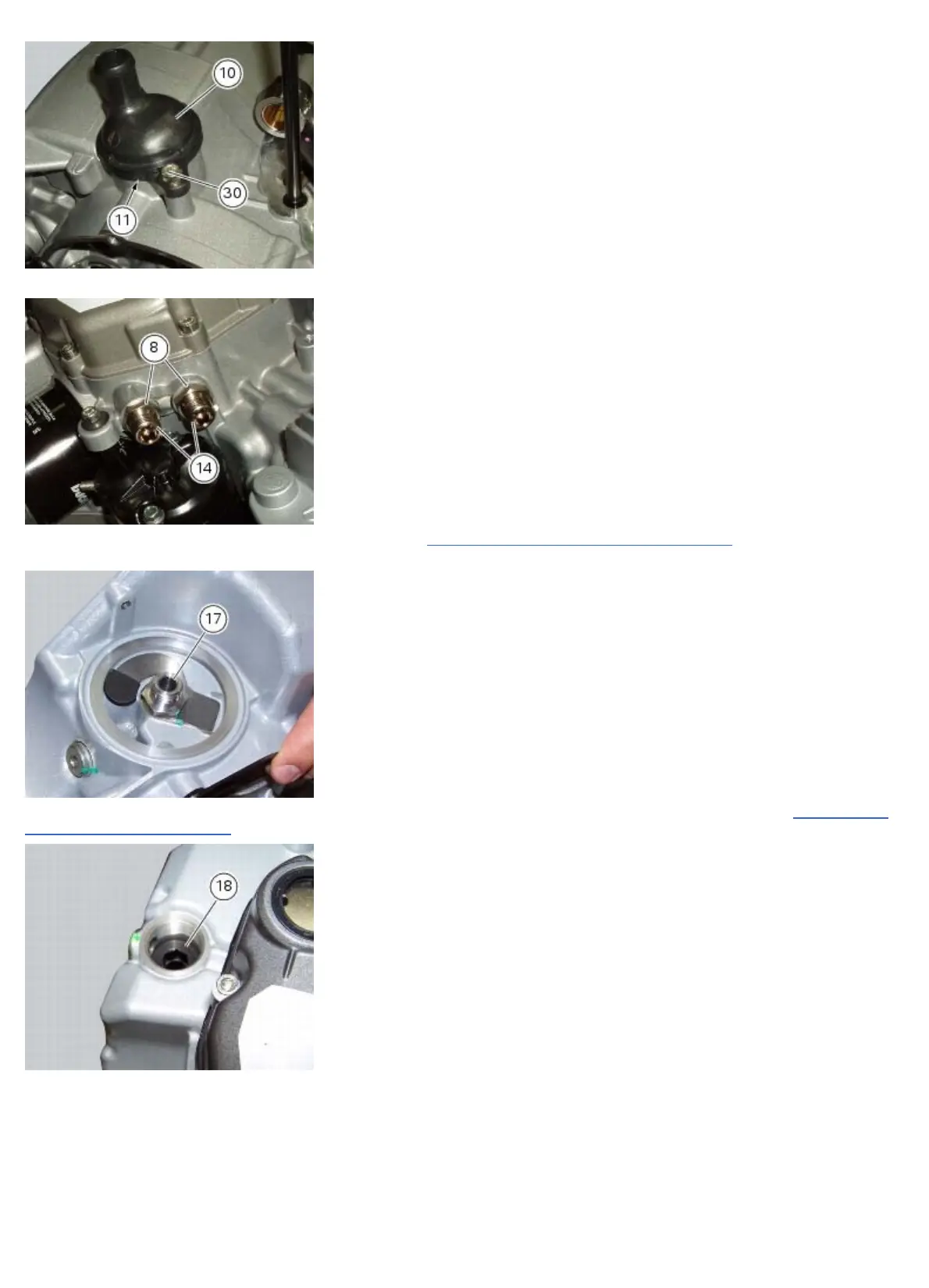

Loosen and remove the two nipples (14) from the clutch-side crankcase and recover the gaskets (8).
Unscrew and remove the oil filter cartridge (Sect. 4 - 3, Changing the engine oil and filter cartridge).
Unscrew and remove the oil filter support nipple (17).
Remove the mesh filter (18) with its seal from the clutch-side crankcase half as described in Section 4 - 3, Changing the
engine oil and filter cartridge.
Loosen plug (27) taking care to recover the washer (28).
