Maintenance operations
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_4_3.17.1.html[11/12/2015 18:40:14]

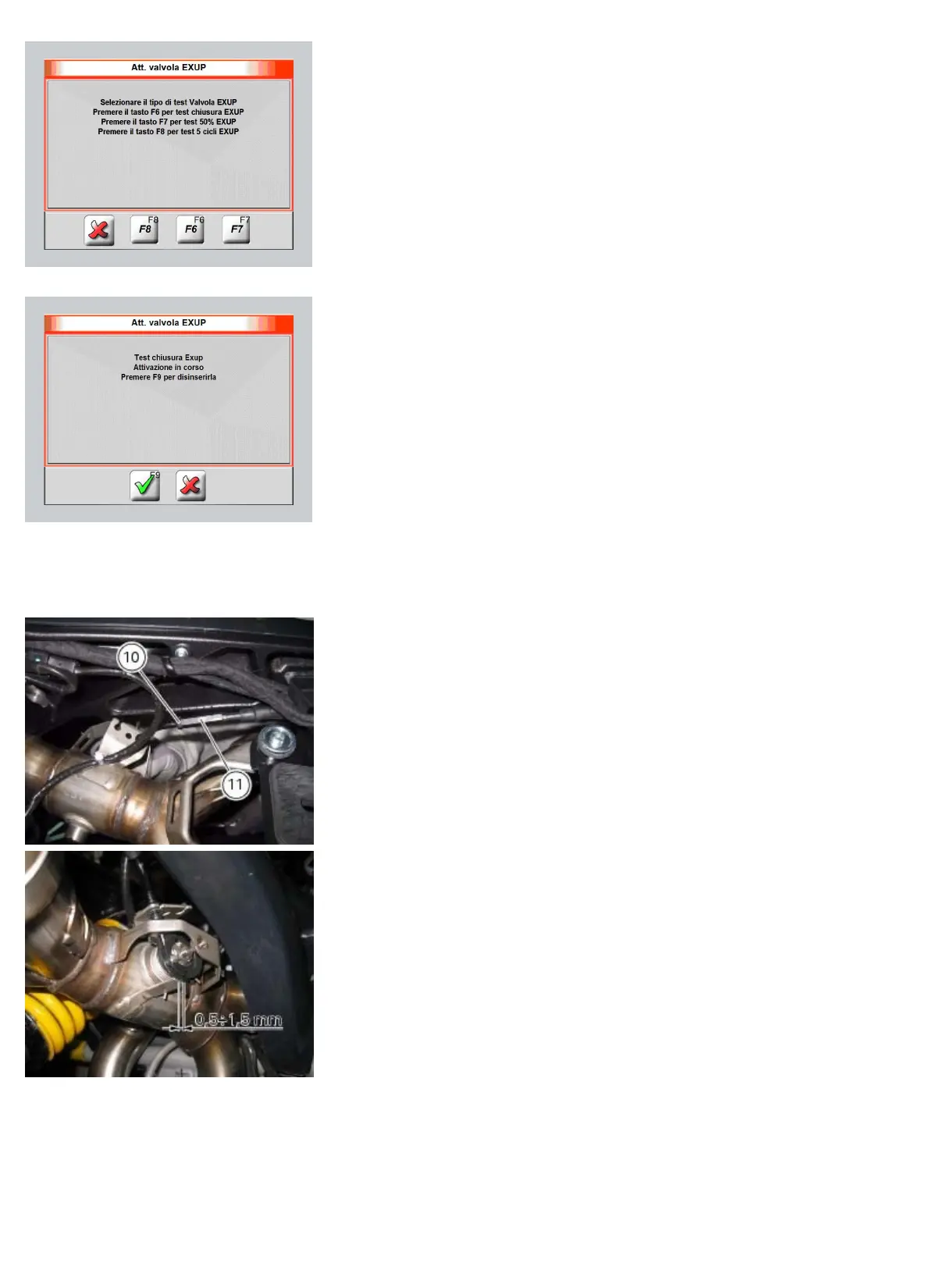

Press “F6” to close the valve that stays closed.
Tighten the adjuster ring nut (11) on cable until you obtain a clearance in the range of 0.5 mm to 1.5 mm measured
between limit stop and pulley stop.
Once adjustment is completed, distance between the stop plate welded to the exhaust pipe and the valve pulley front tab
must be 0.5 to 1.5 mm.
Tighten lock nut (10).
Press button “X” from this DDS page: the activation procedure page closes and system quits without going through test selection.
