4.7 Show/hide the dynamic override of the HSC.
From the automatic mode, the suer can change, during HSC machining, the dynamics set
by program.

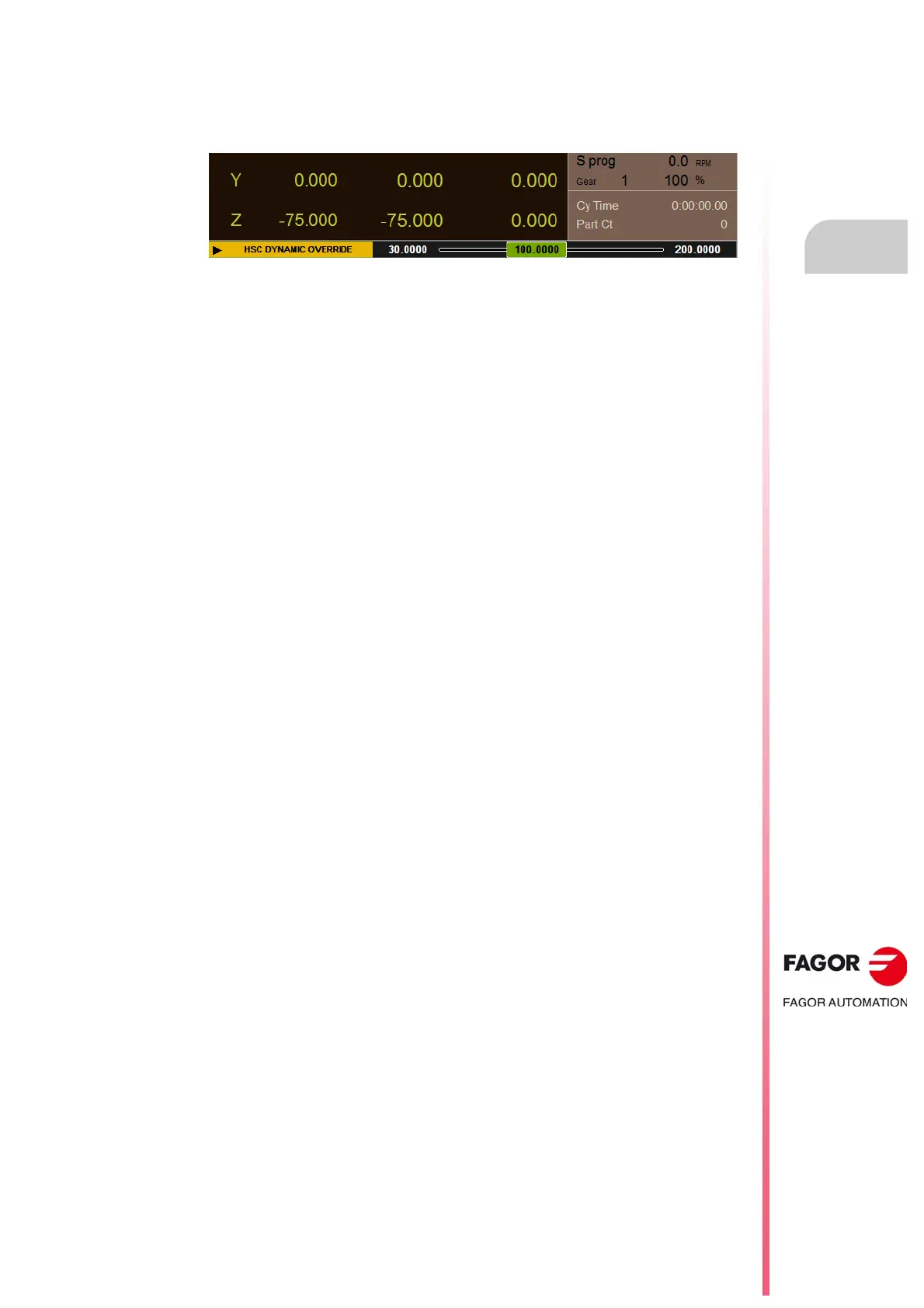

The [CTRL][H] hotkey shows/hides at the bottom of the screen, the dynamic override of the
HSC. On this bar, a cursor may be used to change the percentage of the dynamics set by
program. With the bar, it also shows the upper and lower limits (range) between which the
value may be varied. Over the cursor, it shows the percentage being applied. The cursor may
be moved with the mouse or with the moving arrows of the keyboard. The [ESC] key also
hides the bar.
