Operating manual.
CNC 8060
CNC 8065
GRAPHICS HD (·M· MODEL).
13.
Measure the part.
·249·
(REF: 1807)

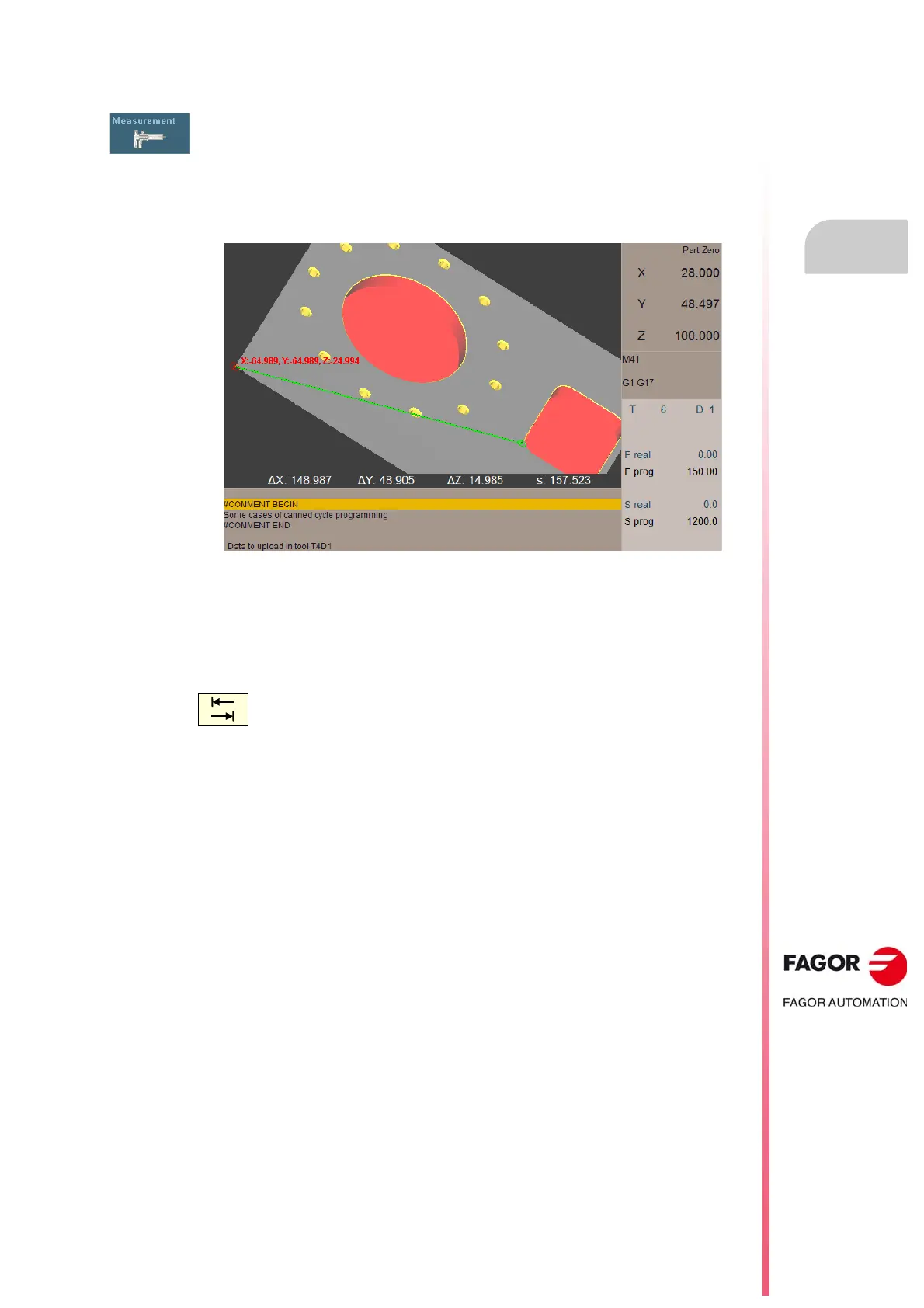

13.16 Measure the part.
For 3D views, the movement of the measuring points is limited to the part. To measure
distances beyond the part (tool paths), a 2D view must be selected (top, front, left or right).
Moving the measuring points.
The active measuring point, indicated in red, can be moved with the mouse or keyboard. It
is recommended to use the mouse.
• Use the keys [
][][][] to move the active measuring point.
• Use the left mouse button to drag the measuring points.
• Click the mouse on any point on the screen, the active measuring point moves to that
point automatically.
This option may be used to measure the distance between two points. After selecting this
option, the line drawn between two measuring points above the diagram and the distance
between the both points on each of the axes (
X, Y, Z) and the distance in a straight line
is shown below. Once measured, press the [ESC] key or press the same softkey again.
If the graphics environment is divided into several windows, the measuring points are only
visible in the active window.
To change the active measuring point, use the tab key or place the cursor over it.
