Operating manual.
CNC 8060
CNC 8065
1.
DESCRIPTION OF THE KEYS
VERTICAL KEYB. (8060).
·46·
(REF: 1807)

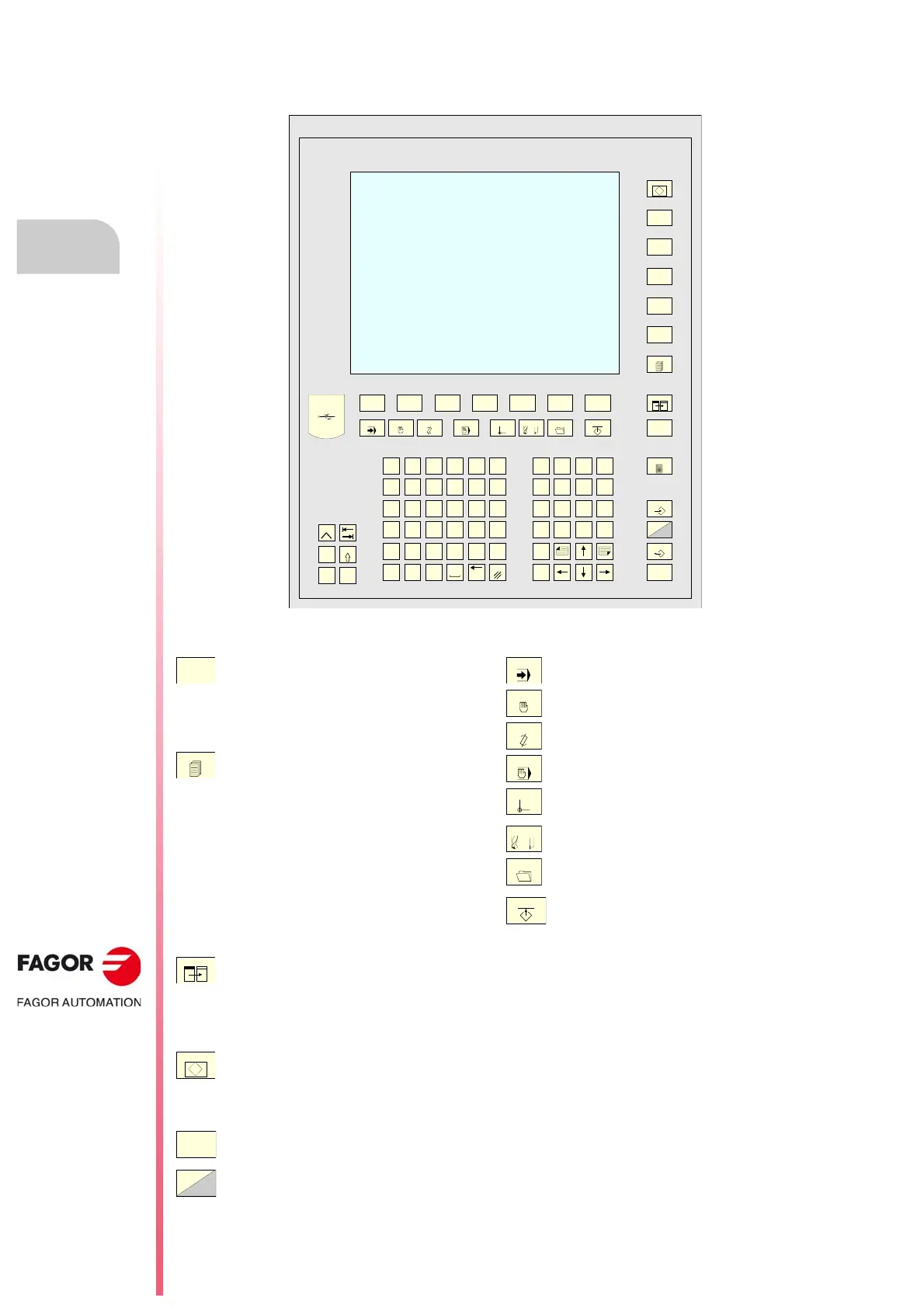

1.7 VERTICAL KEYB. (8060).
Function keys.
Browsing keys.
Help key.
Browsing keys.
Work modes.
After accessing the work mode, these keys may be used
to access the various screens of the active work mode
sequentially, pressing [SHIFT] at the same time inverts the
sequence.
F8
F9
F10
F11
F12
HELP
?
NEXT
F1 F2 F3 F4 F5 F6 F7
MANUAL MDIAUTO EDIT TABLES UTILITIESTOOLS
CUSTOM
FOCUS
ESC
CTRL ALT
CAPS
7 8 9
4 5 6
1 2 3
_
0
.
+
*
=
/
HOME
END
SHIFT
INS
ENTER
RECALL
CALC
ABCDEF
GH I JKL
MNÑOPQ
RSTUV
W
XYZ#$
,
[]
;
DELETESPACE
BACK
SPACE
MAIN
MENU
Softkeys.
Keys F1 through F12 select the options of the
softkey menus.
NEXT key.
Configurable key that can carry out one of the
following actions.
• Access the various screens of the active
work mode sequentially, pressing [SHIFT] at
the same time inverts the sequence. In the
PLC mode, it switches between the various
active services.
• Sequentially access the different channels.
• The horizontal softkey menu shows the
available screens and the vertical menu
shows the available channels.
FOCUS key.
It is used to switch between the different windows
of the screen.
HELP key.
It accesses the CNC's system help.
Main menu.
Changing the state of an icon. In the MC/TC
mode, it toggles between the standard and the
auxiliary screens.
Automatic mode.
Manual (jog) mode.
EDISIMU mode.
MDI/MDA mode.
User tables (zero offsets, fixtures and arithmetic
parameters).
Tool and magazine table.
Utilities mode.
Configurable mode.
OEM-configurable key that can carry out one of
the following actions.
• Access a CNC work mode.
• Execute an application.
• Access the operating system.
• Carry out no function at all.
