Operating manual.
CNC 8060
CNC 8065
GRAPHICS HD (·T· MODEL).
15.
Viewing the tool paths and the solid.
·277·
(REF: 1807)

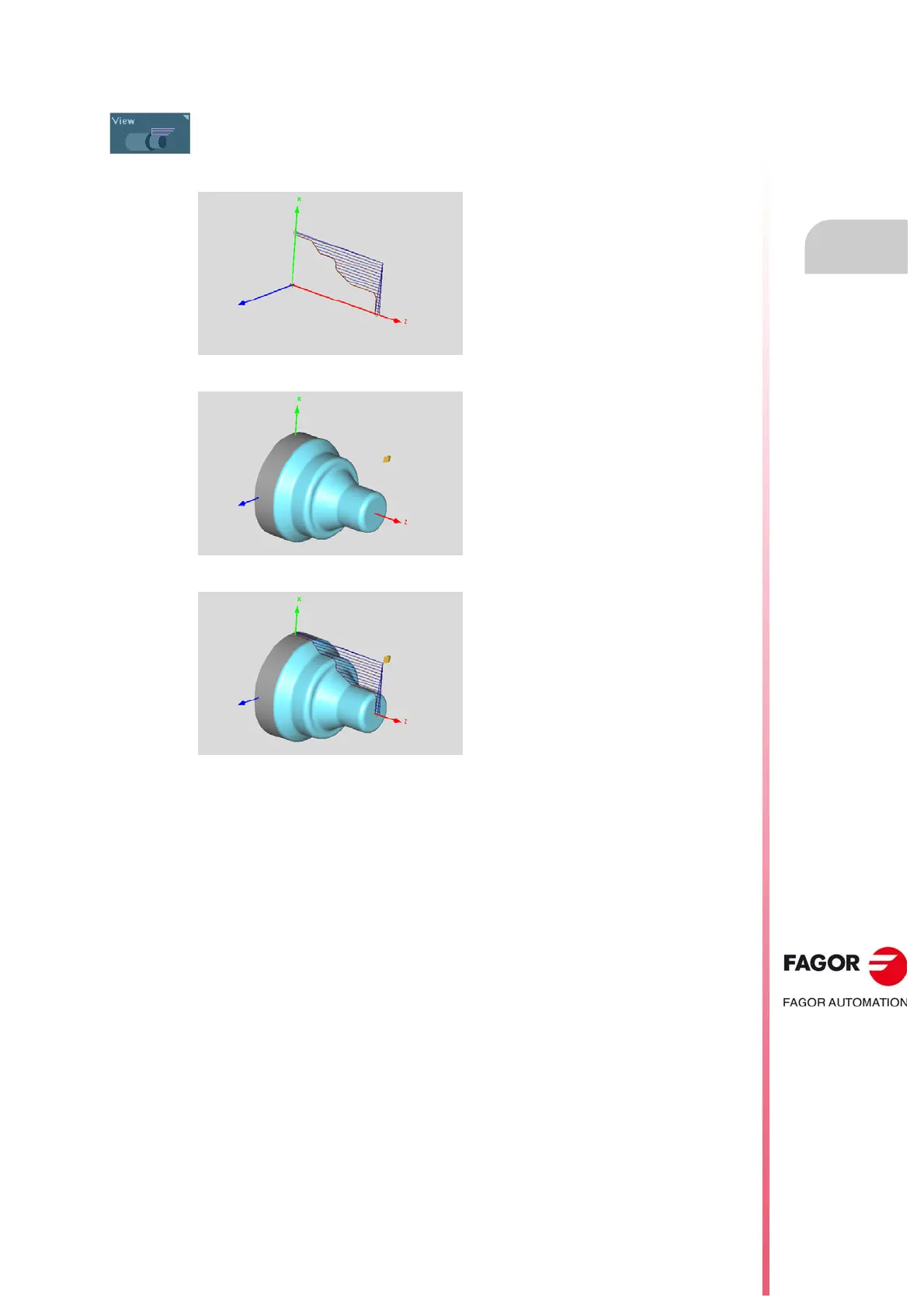

15.17 Viewing the tool paths and the solid.
This softkey toggles between the various types of diagrams. Each of the four windows
dividing the screen may display the diagram in a different way; to do this, the options "View
part" and "View path" must be selected in the window properties. See
"Configuring the
graphics window (properties of each window)."
on page 267.
Viewing tool paths.
This option only displays the tool paths. The
colors of the tool paths can be changed for the
softkey "Configuration” > "Colors” > "Path".
Viewing the solid.
This option only shows the solid to be
machined. Each surface is represented by a
color associated with the corresponding
machine tool. The colors of the tools can be
changed for the softkey "Configuration” >
"Colors” > “Solid".
Viewing tool paths and solids.
This option only displays the solid to be
machined and the tool paths.
