Operating manual.
CNC 8060
CNC 8065
18.
TOOL AND MAGAZINE TABLE
Presentation of the tool tables and magazine tables.
·294·
(REF: 1807)
18.1.1 Softkey menus.
Horizontal softkey menu.
When selecting one of these tables, it is displayed on the screen and the vertical icon menu
shows the icons associated with that table. Later sections of this chapter show a more
detailed description of the icons and operations that may be carried out in each table.
Vertical softkey menu.
If no table is currently selected, the vertical softkey menu will show the following softkeys to
save or load all the tables. See
"18.1.3 Save and load the tables" on page 296.

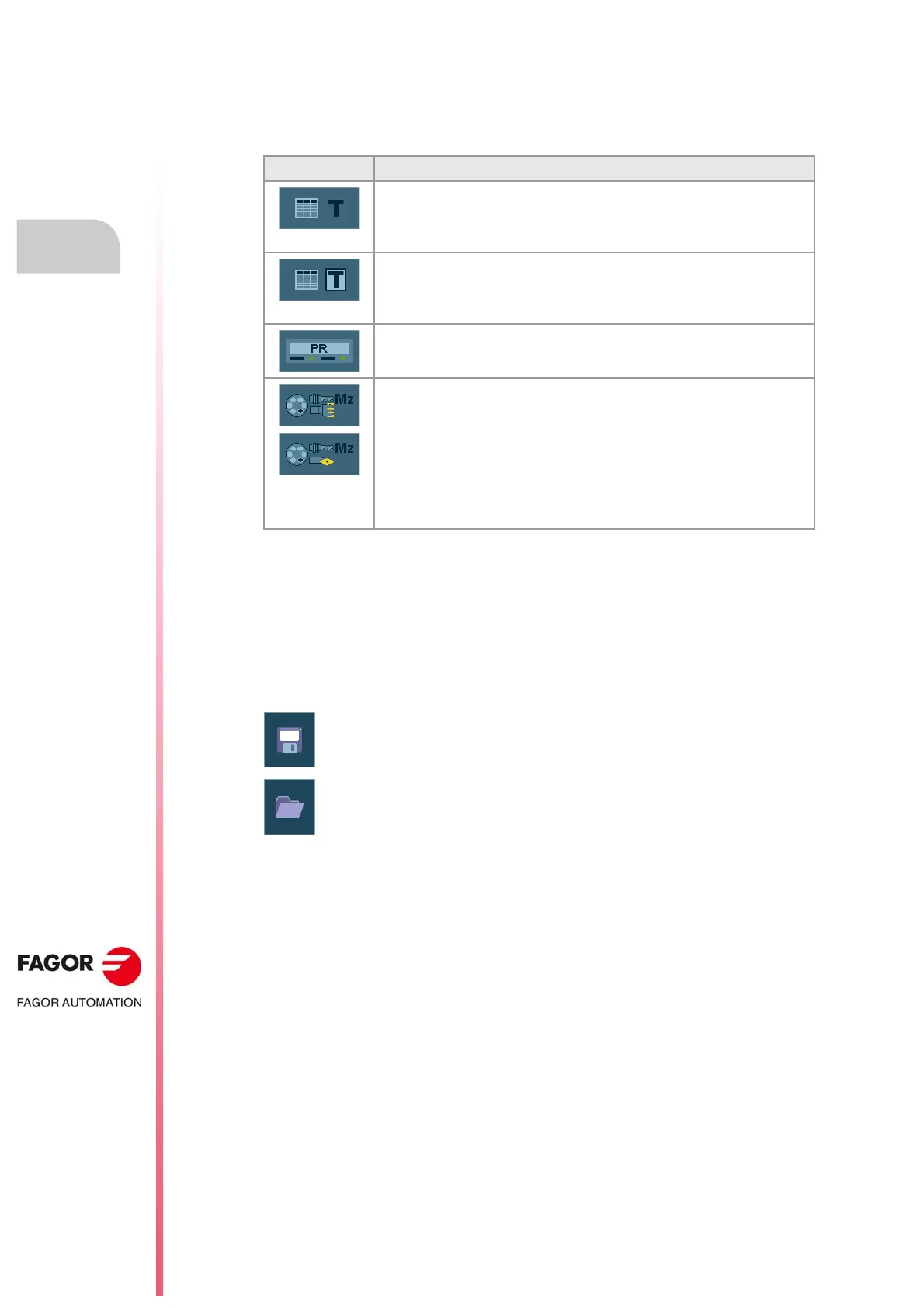

Softkey Table
Tool table.
This table defines the tools available and the data associated with each
one of them. This table is common to all the magazines.
Active-tools table.
This table shows the tool that is active in each channel and the data
associated with it.
Change process.
This table monitors the tool changes being executed in each channel.
Tool magazine table (there is one table per magazine)
For each magazine, it shows the tool distribution and the remaining life
time of each tool (if tool life monitoring is active). If the magazine has a
changer arm, it shows the tool located in it. The description of the
magazine type can also be shown.
The icon associated with this table depends on the software configuration
(lathe or mill).
Save the tables
Saves the data of all the tables.
Recall the tables
It restores the data previously saved for all the tables.
