Operating manual.
CNC 8060
CNC 8065
DESCRIPTION OF THE KEYS
1.
OP PANEL. (8060).
·49·
(REF: 1807)

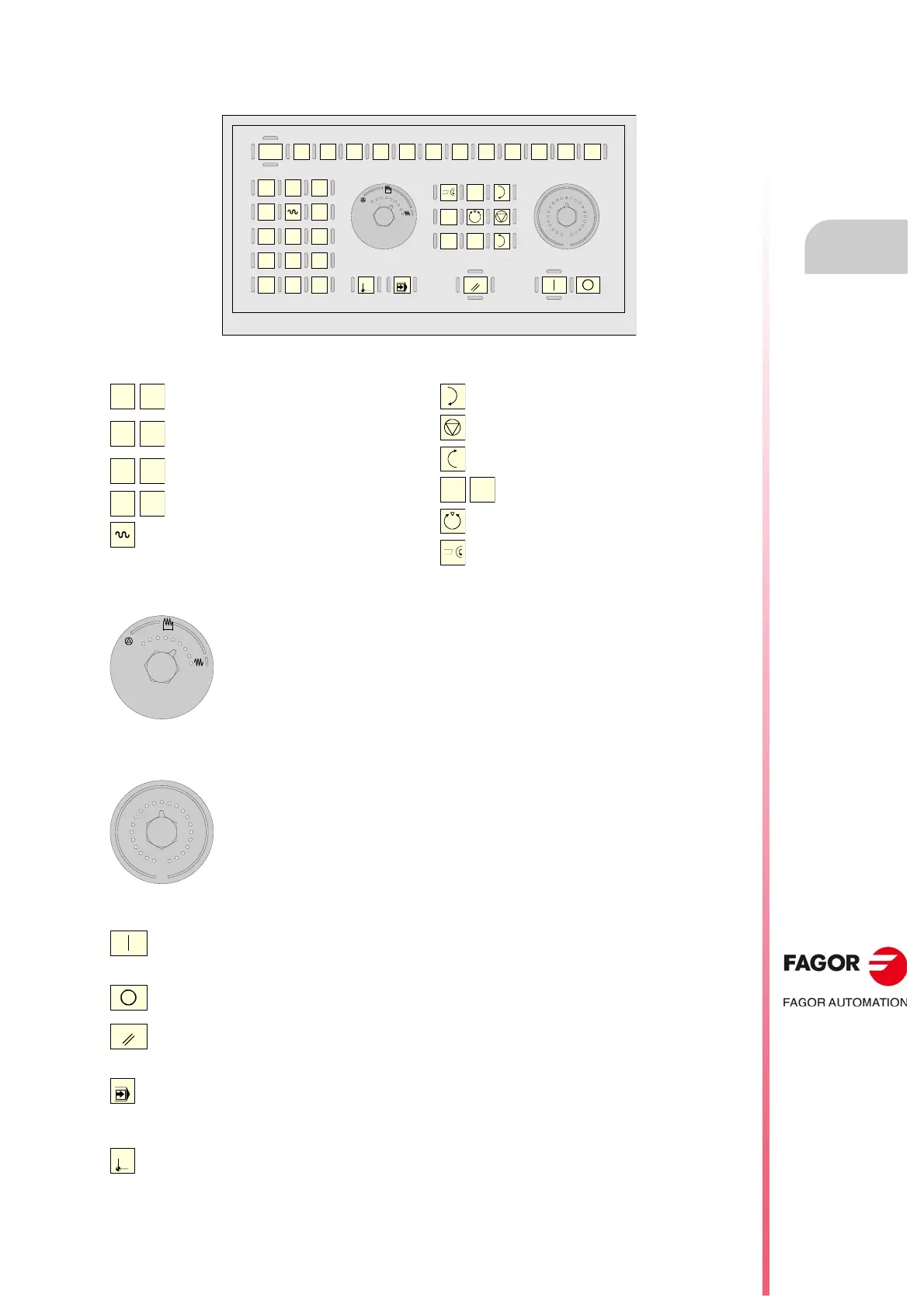

1.9 OP PANEL. (8060).
Jog keyboard for jogging the axes.
Feed selectors.
Execution keys.
Spindle control.
External devices.
The functions of these keys are defined by the machine
manufacturer and they allow controlling the various
devices of the machine (coolant, chip remover, etc.).
CNC
OFF
200
190
180
170
160
150
140
130
120
110
100
90
80
70
60
50
40
30
20
10
4
2
0
FEED
10000
1000
100
10
1
100
10
1
jog
XYZ
+
_
456
+
_
CSS
m/min
ZERO SINGLE
RESET
Keys to select axes and jog them in the
positive direction.
Keys to select axes and jog them in the
negative direction.
Keys to select the axes and keys to select the
jogging direction. Both keys (axis and
direction) must be pressed to jog the axis.
Rapid key. When pressing this key while
moving an axis, the CNC applies the rapid
feedrate.
Sector for the type of jog;
continuous / incremental jog or
handwheels.
In handwheel mode, it selects the
multiplying factor for the
handwheel pulses (x1, x10 o
x100).
In incremental mode, it selects
the incremental value of the axis
movements.
Selector of percentage of
feedrate override, between 0%
and 200%, for jog and automatic
movements.
Cycle start key (START).
Execute the selected program in automatic
mode, a block in MDI/MDA mode, etc.
Cycle stop key (STOP).
Interrupt the execution of the CNC.
Reset key.
It initializes the system setting the initial
conditions as defined by machine parameters.
Single-block execution mode.
When selecting the "single block" execution
mode, the program simulation will be interrupted
at the end of each block.
Home search.
200
190
180
170
160
150
140
130
120
110
100
90
80
70
60
50
40
30
20
10
4
2
0
FEED
Start the spindle clockwise.
Stop the spindle.
Start the spindle counteclockwise.
To vary the spindle speed percentually.
Spindle orientation.
Constant Surface Speed (for lathe model
only).
