Operating manual.
CNC 8060
CNC 8065
TOOL AND MAGAZINE TABLE
18.
Tool table (simple mode).
·313·
(REF: 1807)

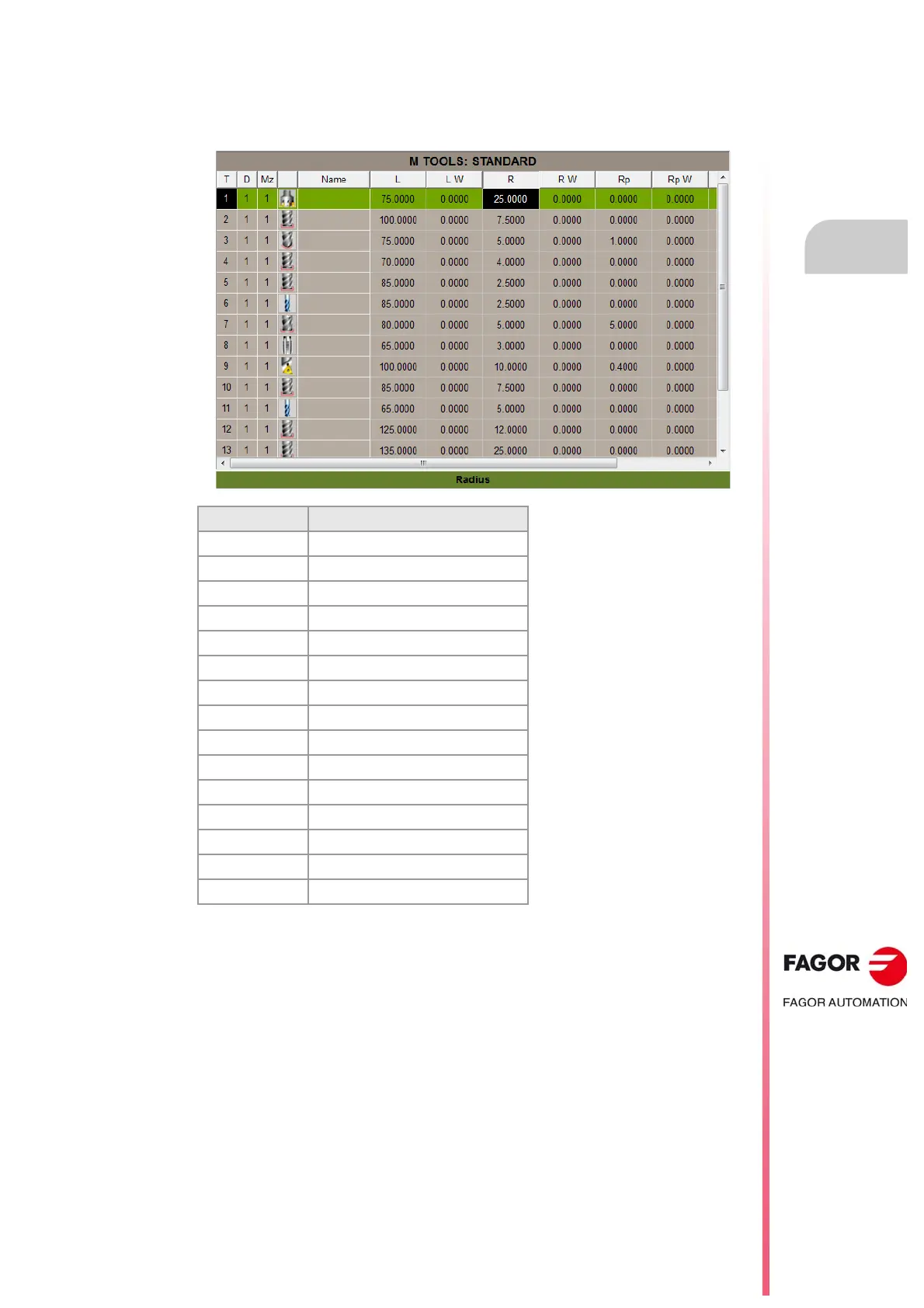

18.4.3 Data of the M tools (standard page - screen-).
The standard page (screen) shows the main data of the tools, in this case, the tools that not
specific for turning. The table highlights in color the active tool.
Column. Description.
T Tool number.
D Tool offset number.
Mz Magazine it belongs to.
icon Type of tool offset.
Name Tool name.
L Length.
L W Length wear.
R Radius.
R W Radius wear.
Rp Tip radius.
Rp W Tool tip radius wear.
Lc Cutting length.
Ae Entry angle.
icon Turning direction.
Zn Number of teeth.
To Next Page
