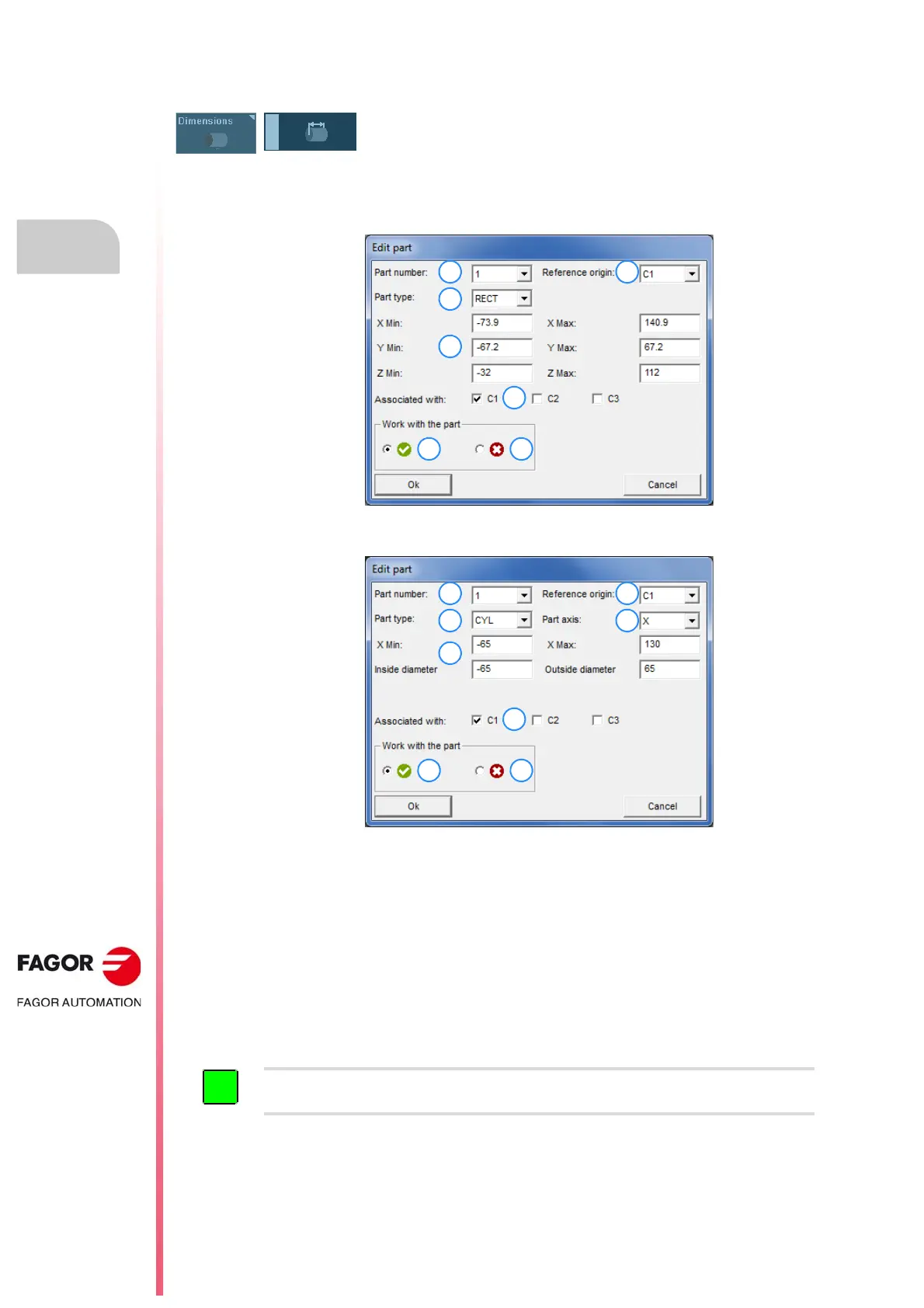

15.13 Editing, displaying and hiding parts.
This softkey allows up to four pieces to be defined, either rectangular or cylindrical, and to
be assigned to various channels.
Rectangular part.
Cylindrical part.
A.
Part number.
B. Reference channel; used to define the origins and the dimensions.
C. Part type; rectangular or circular.
D. Longitudinal axis of the part (cylindrical parts only).
E. Part dimensions. To include a zero offset in the part, edit the zero offset at the minimum values
of the axes.
F. Channels associated with the part, for displaying. Since several channels may work on a part, in
order to be able to keep displaying the machining of that part when changing channels, it is
necessary to define which channels are working on that part.
G. Show the part
H. Hide the part.
A B
C
E
F
G H
A B
C D
F
G H
E
The dimensions of the part correspond to the part zero (G92, G54 to G59, G159) active at the time
of the activating the part, for this reason it is advisable to first activate the part zero and then the part.
