Magazine table
·321·
(REF: 1807)
18.8.1 Softkey menus.
Vertical softkey menu.

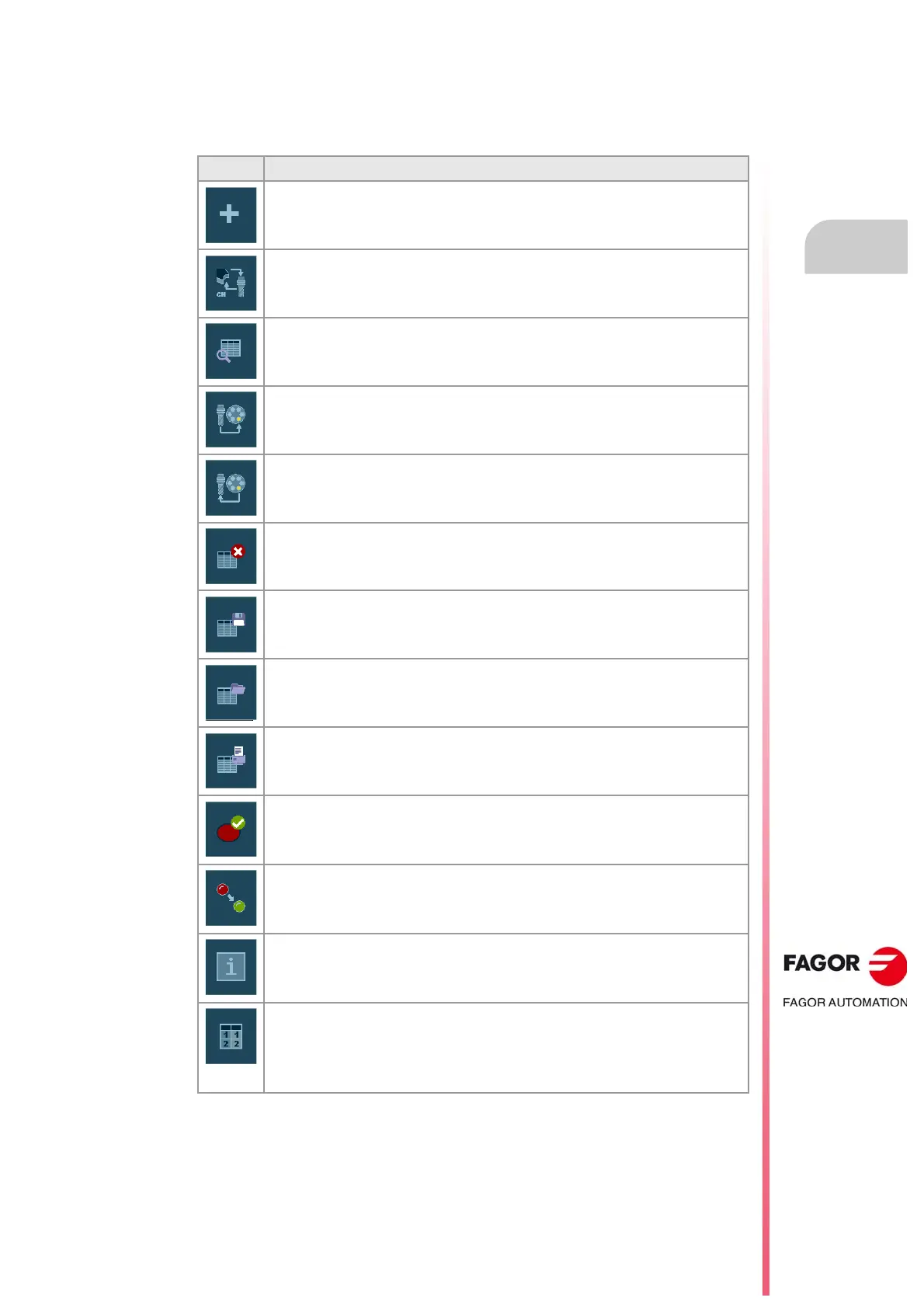

Softkey. Description.
Show more options on the softkey menu.
Load / unload a tool to / from the tool changer arm. This icon is only available in magazines
with tool changer arm. See "18.9.2 Load / unload a tool to / from the tool changer arm"
on page 327.
Search for a text in the table. When selecting this option, the CNC shows a dialog box
requesting the text to be found. See "18.1.2 Search for a text in the tables" on page 295.
Load a tool into the magazine. See "18.9.1 Loading / unloading tools to / from the
magazine" on page 325.
Unload the tool from the magazine. See "18.9.1 Loading / unloading tools to / from the
magazine" on page 325.
Initialize (reset) the magazine table. Initializing the tables eliminates all the tools from the
list. It also initializes the active-tools table because the tool arrangement in the magazine
may have changed. The CNC will request confirmation of the command.
Saves the table data in a file. See "18.1.3 Save and load the tables" on page 296.
Recall the table data previously saved in a file. Bear in mind that loading the magazine
tool initializes the active-tools table. See "18.1.3 Save and load the tables" on page 296.
Print the table in the pre-determined printer or save it as a file (prn format) at the CNC.
See "18.1.4 Printing the tables" on page 298.
Enable or disable the magazine position selected with the cursor.
Reset the magazine. Eliminates the error status of the tool manager. This icon is only
available when an error occurs at the tool manager.
Magazine information. Show or hide the magazine data.
Initialize the magazine data. The CNC will request confirmation of the command.
It initializes all the magazine positions assigning T1 to position 1, T2 to position 2 and
so on. The tools must exist and must not be in another magazine.
It also initializes the list of tools and the active-tools table because the tool arrangement
in the magazine may have changed.
