Operating manual.
CNC 8060
CNC 8065
MANUAL (JOG) MODE. TOOL CALIBRATION
6.
Semi-automatic calibration. Calibration with a probe
·137·
(REF: 1807)
6.2 Semi-automatic calibration. Calibration with a probe
This option is only available when using a tabletop probe installed on the machine.
On a milling model, it may be used to calibrate the length and radius of the milling tools and
the offsets of the lathe tools. On a lathe model, it may be used to calibrate the offsets of any
tool.

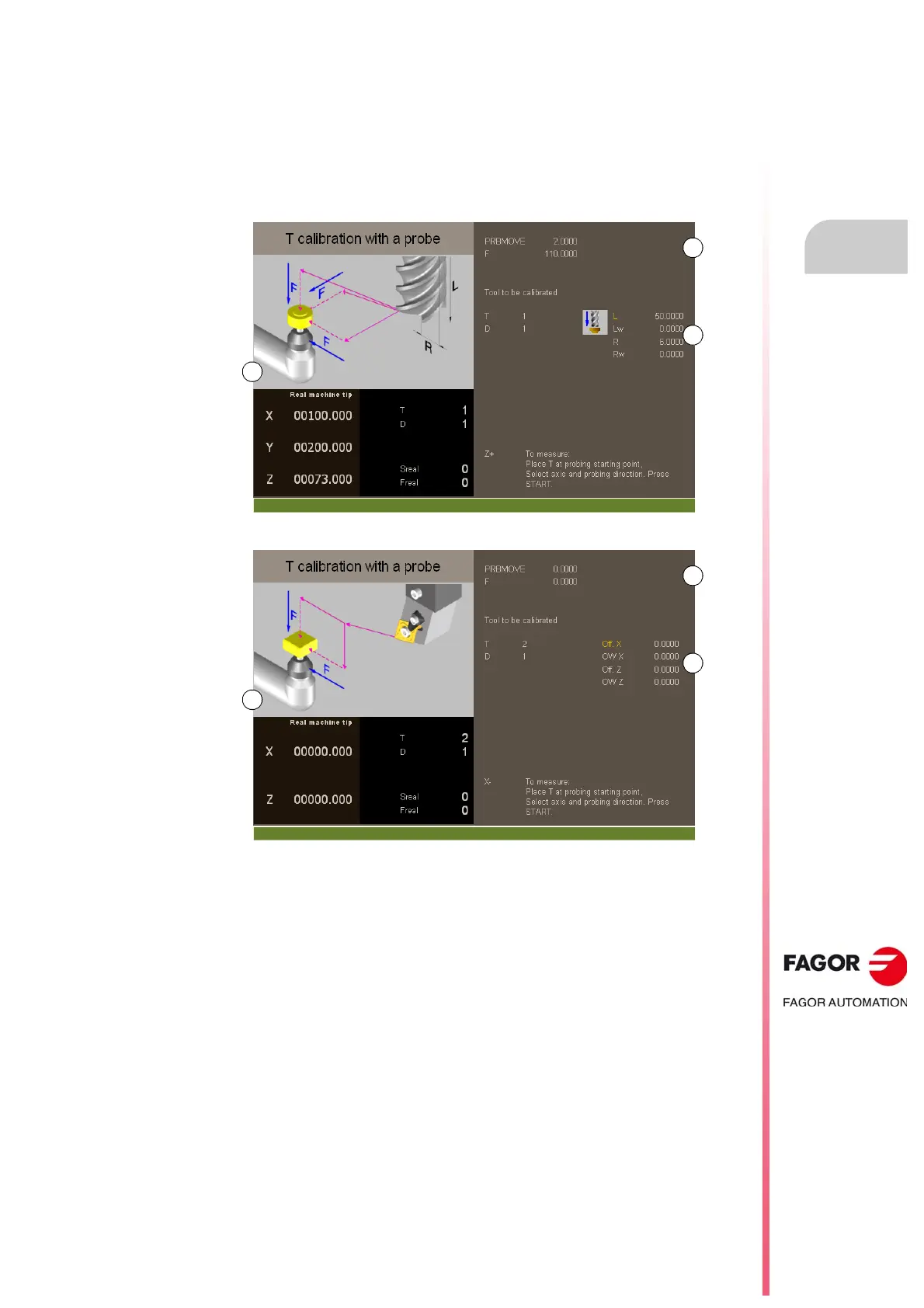

• Tool calibration window (·M· model).
• Tool calibration window (·T· model).
A Machine data. Position of the axes, tool and active tool offset, real spindle speed and real
feedrate of the axes.
B Data of probing movement.
C Necessary data for calibration.
The tool must be in the spindle. After the calibration, the wear is reset to zero.
When changing the tool data, the tool table data is updated after calibration.
Tool calibration
The calibration consists in manually approaching the tool to the probe and then command
the CNC to execute the probing movement. The CNC will move the tool on the selected axis
until touching the probe. After touching the probe, it concludes the calibration on that axis
and updates the values.
Selecting a tool
The tool and the active tool offset may be changed from the calibration mode. After defining
the new tool or tool offset in the cycle data, press [CYCLE START] and the CNC will execute
the tool change.
