Operating manual.
CNC 8060
CNC 8065
GRAPHIC ENVIRONMENT (MILL MODEL)
12.
Clear screen
·229·
(REF: 1807)
12.7 Clear screen
This softkey is used to clear the screen or delete the graphics displayed. If a solid graphic
type is selected, the graphic representation will be reset and it will return to its initial state
without machining.
12.8 Colors
This softkey is used to change the colors used in the graphic representation.
• In the line graphics, it is possible to choose the color for each type of tool path; the color
for rapid movements, paths with tool compensation, etc.
The real coordinates are only available for the execution of the program. The real
coordinate is the actual position of the tool which differs from the command coordinate
in the amount of following error (axis lag).
• In solid graphics, only the color of each side of the solid may be selected.
Colors "Apply"
It assumes the new colors and applies them to the blocks drawn next. If the new colors are
not applied, the graphics are drawn with the old colors.
Colors "Edit"
It is used to select the new colors for the graphics. They are selected in the dialog area of
the graphic window that show the current colors.
When selecting this option, the softkey menu shows the available options. To return to the
main menu, press the [BACK] key.

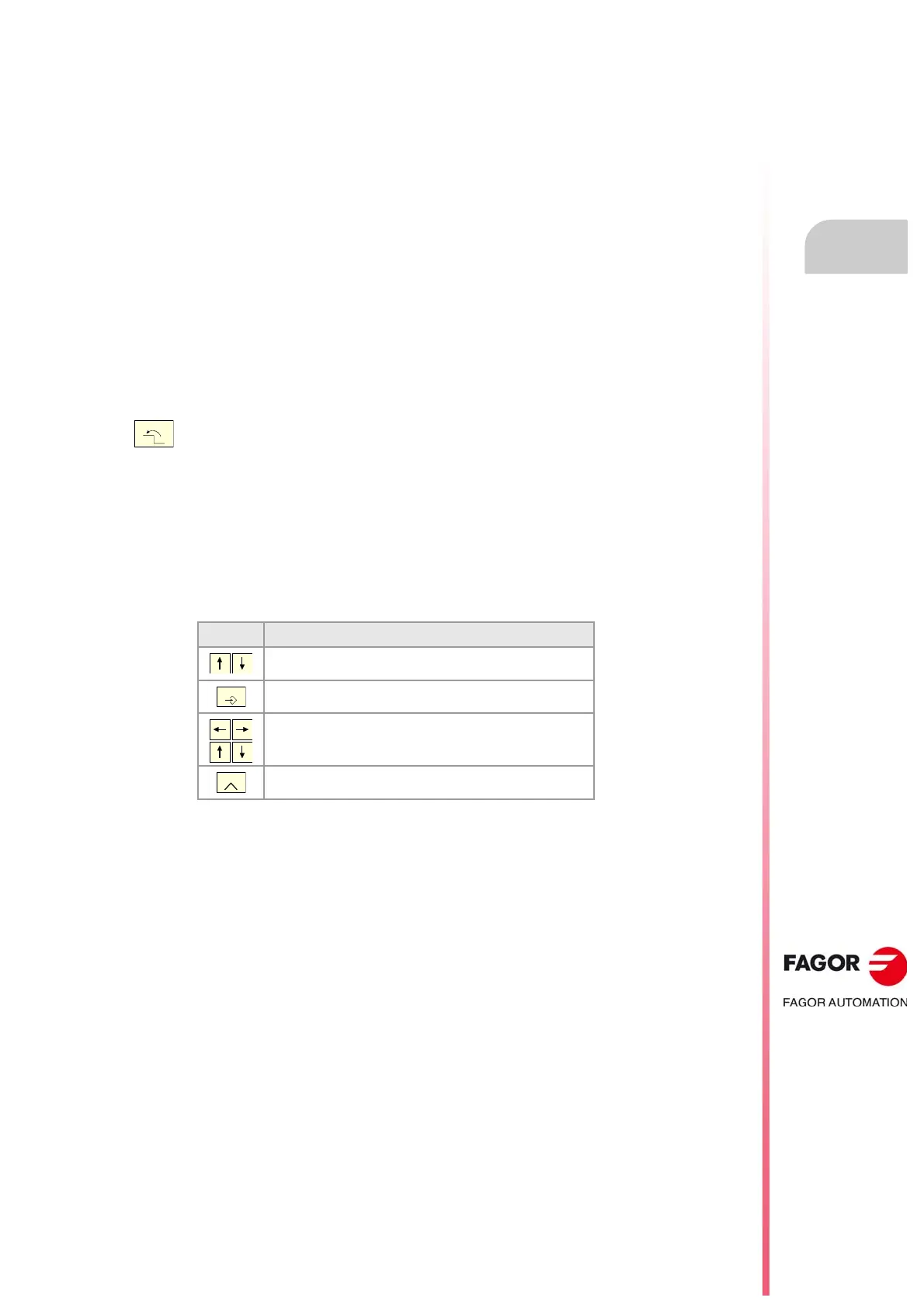

Key. Meaning.
To move the cursor through the data.
To open and close the color palettes.
To move the cursor through the colors of the palette.
To cancel the selected colors.
