Operating manual.
CNC 8060
CNC 8065
17.
USER TABLES
User table presentation.
·284·
(REF: 1807)

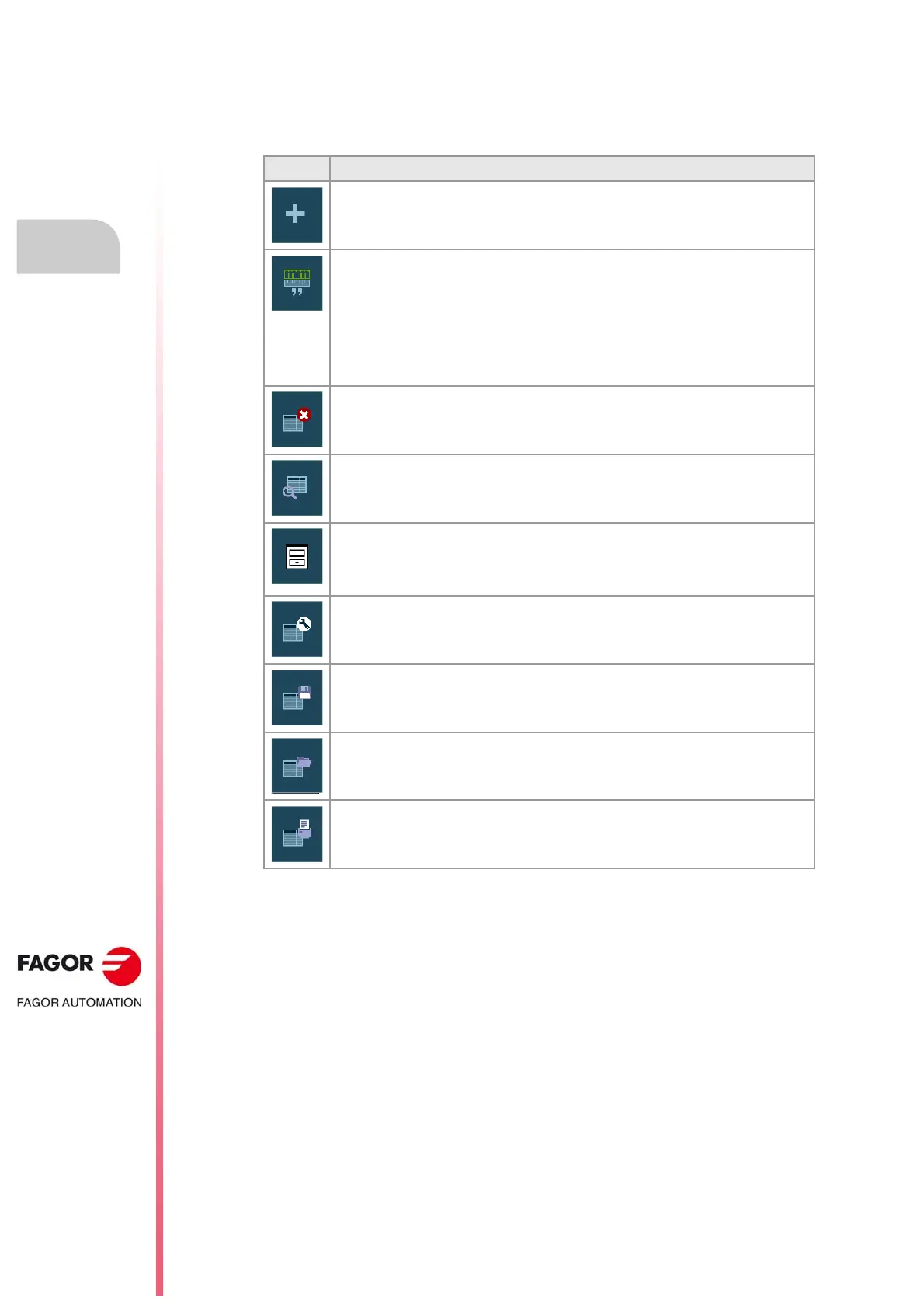

17.1.1 Softkey menus.
Vertical softkey menu.
Softkey. Description.
Show more options on the softkey menu.
Toggle the units for the position of the linear axes. Toggling these units does not affect
the rotary axes which will always be displayed in degrees. The softkey highlights the units
currently selected (millimeters or inches).
The selected units are only valid for displaying data. For programming, the CNC assumes
the units defined with the active function G70 or G71, or, when not programmed, the units
set by the machine manufacturer (INCHES parameter).
The CNC will display this softkey or not depending on how machine parameter
MMINCHSOFTKEY has been set.
Initialize the table. Reset all the table data to "0". The CNC will request confirmation of
the command.
Search a text or a value in the table. When selecting this option, the CNC shows a dialog
box requesting the text to be found.
Accessing the tables of other channels. With some tables, only the data of the active
channel are displayed, this softkey is used to show the tables of the other channels. This
softkey will only be available when using channels.
Select the axes (zero offset tables) and channels (parameter tables) to display in the
tables. When using several channels, only those axes assigned to the active channel may
be accessed.
Save the values of the table into a file.
Restore the values of the table previously saved into a file.
Print the table in the pre-determined printer or save it as a file (prn format) at the CNC.
